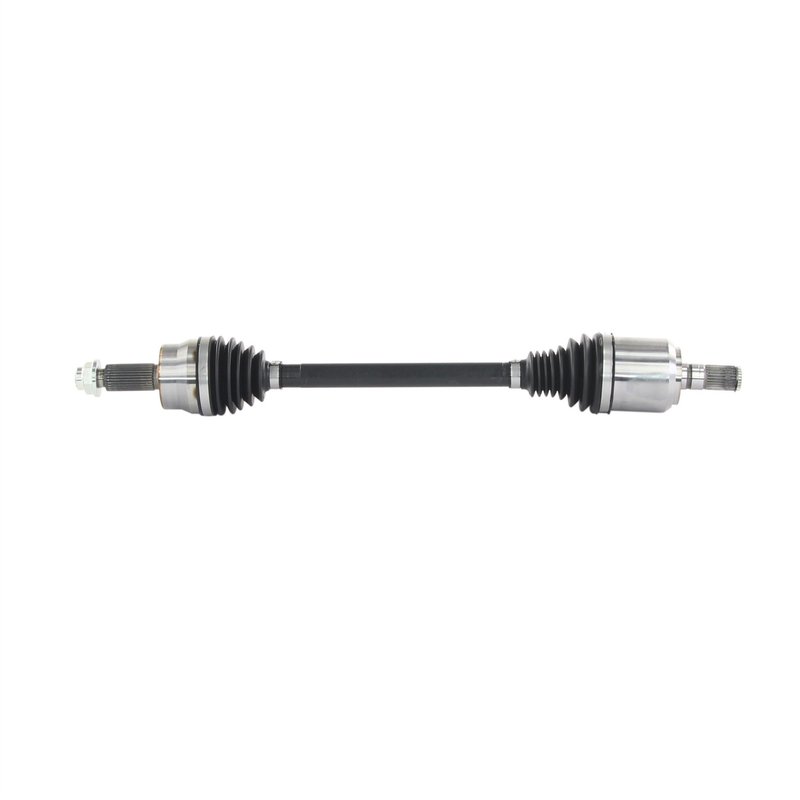

TrakMotive KA-86023 CV Axle Shaft - Front Left

TrakMotive AAR CV Axle Shaft for Front Left Service

The TrakMotive AAR CV Axle Shaft, part number KA-86023, is a premium driveline replacement for front left applications on select Hyundai Sonata and Kia K5 models. It is built to match OE AAR design requirements and includes the axle nut specified for the application.

Key Features

• Fits 2020-2023 Hyundai Sonata, front left
• Fits 2021-2023 Kia K5, front left
• OE AAR design replacement for the listed applications
• Premium-grade CV axle shaft construction
• Inboard joint type: male with spline connection
• Outboard joint type: conventional with spline connection
• Thermoplastic boot material on inboard and outboard joints
• Includes axle nut with M24x1.5 thread, 32 mm socket size, and stake locking type
• ABS tone ring not included; ABS ring tooth count: 0
• Overall compressed length: 27.69 in (704 mm); overall extended length: 29.56 in (752 mm)

Detailed Description

KA-86023 is a TrakMotive AAR CV Axle Shaft engineered for front left driveline service on the Hyundai Sonata and Kia K5 applications listed above. The shaft uses 27 inboard splines and 30 outboard splines, with thermoplastic boot materials at both joints for a direct-fit replacement approach. TrakMotive identifies this AAR CV Axle Shaft line as an OE-style solution for vehicles requiring the AAR design, and the part is backed by the company’s limited lifetime warranty. TrakMotive is also an ISO 9001:2008 and TS 16949:2009 certified company.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Clicking or popping from a worn front left CV axle during turns
• Vibration or shudder caused by a damaged axle shaft assembly
• Torn CV boots that allow grease loss and contamination
• Axle play or noise from worn spline engagement
• Driveline issues on Sonata or K5 front left applications requiring OE AAR design

Installation Notes and Tips

Confirm the vehicle uses the listed front left AAR configuration before installation. Verify axle nut thread size, socket size, and locking style against the original part, and inspect the hub, seals, and surrounding suspension components for wear before reassembly. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.

Quality Assurance

TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand states that its manufacturing is supported by ISO 9001:2008 and TS 16949:2009 certification standards.
