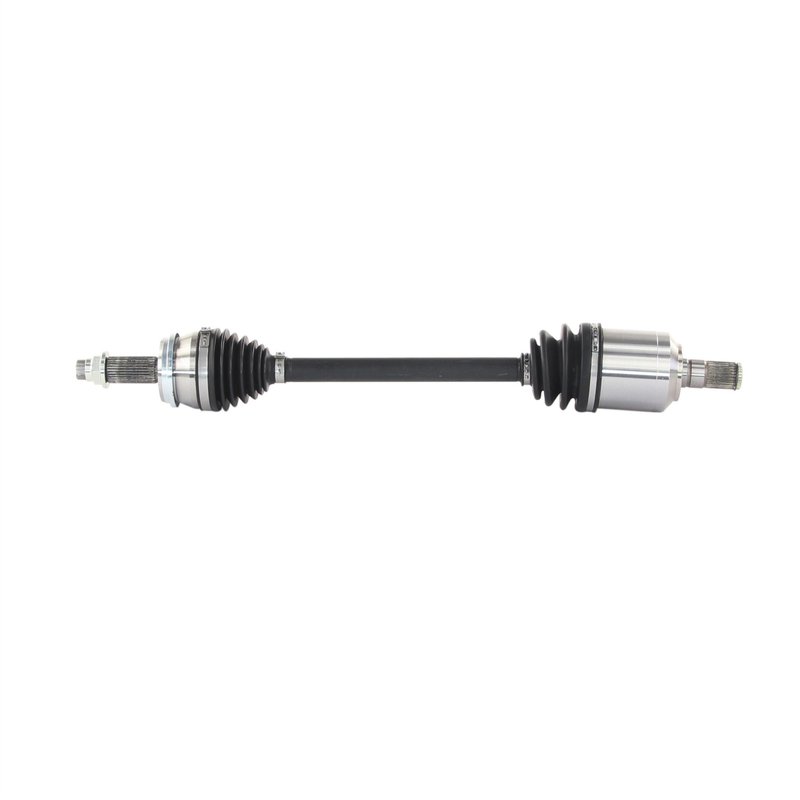

TrakMotive KA-86024 CV Axle Shaft - Front Left
| Brand | TrakMotive KA-86024 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 27.75 |
| Overall Compressed Length (mm) | 706 |
| Overall Extended Length (in) | 30.19 |
| Product line | AAR CV Axle Shaft |
| Fits | Hyundai and Kia · 6 vehicles |
OE-style replacement. AAR CV axle shaft for a direct-fit driveline repair.
Premium grade. Built with thermoplastic and neoprene boots for added durability.
Spline connection. 28 inboard and 30 outboard splines for secure engagement.
Cross-references TrakMotive KA-86024 and NCV37133 for the same application. See all 2.
Front Left CV Axle Shaft for Palisade and Telluride
TrakMotive KA-86024 is a premium CV axle shaft for front left applications on the 2020-2022 Hyundai Palisade and 2020-2022 Kia Telluride. It is built for OE AAR design applications and includes the axle nut specified for this fitment.
Key Features
- Front left CV axle shaft for OE AAR design applications
- Fits 2020-2022 Hyundai Palisade, front left
- Fits 2020-2022 Kia Telluride, front left
- Premium grade construction
- Inboard joint type: male with spline connection
- 28 inboard splines and 30 outboard splines
- Thermoplastic inboard boot and neoprene outboard boot
- Axle nut included; M24x1.5 thread, 32 mm hex
- ABS tone ring not included; ABS ring tooth count: 0
Product Details
The TrakMotive AAR CV Axle Shaft line is built for OE-style driveline service where correct fit, spline count, and joint configuration matter. Part number KA-86024 measures 27.75 inches compressed and 30.19 inches extended, with a conventional outboard joint and a male inboard joint. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
For Hyundai Palisade and Kia Telluride front left service, KA-86024 provides the specified axle geometry and hardware details needed for a direct replacement. TrakMotive KA-86024 is backed by ISO 9001:2008 and TS 16949:2009 certified manufacturing practices.
Common Repair Uses
- Replacing a worn or noisy front left CV axle
- Addressing vibration during acceleration
- Correcting clicking or popping from the driveline
- Restoring proper power transfer to the front wheel
- Replacing an axle with damaged boots or joint wear
Installation Notes
Verify front left fitment by year, make, model, and OE AAR design before installation. Confirm axle nut thread size, hex size, and spline counts match the vehicle specification. The axle nut is included and uses a stake-style locking design. ABS tone ring is not included, and this axle is listed with no ABS ring tooth count.
Quality Assurance
TrakMotive lists a limited lifetime warranty for this CV axle shaft. The AAR CV Axle Shaft line is supported by certified manufacturing standards, including ISO 9001:2008 and TS 16949:2009.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Hyundai | Palisade | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2022 | Kia | Telluride | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2021 | Hyundai | Palisade | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2021 | Kia | Telluride | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2020 | Hyundai | Palisade | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2020 | Kia | Telluride | Front Left | OE AAR design; AAR CV Axle Shaft |
