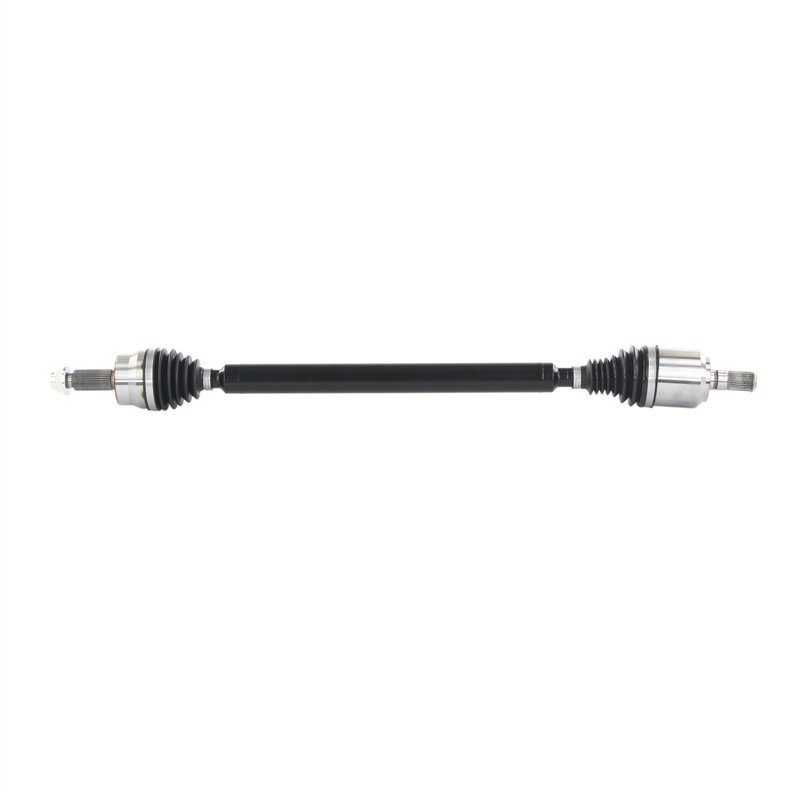

TrakMotive KA-86025 CV Axle Shaft - Front Right

Front Right CV Axle Shaft for Sonata and K5

TrakMotive KA-86025 is a premium AAR CV axle shaft for front right applications on select Hyundai Sonata and Kia K5 models. It is built with OE AAR design details, a 32 mm axle nut, and spline counts matched to the listed fitments for direct driveline service.

Key Features

• Front right CV axle shaft for select Hyundai Sonata and Kia K5 applications
• OE AAR design for the listed fitments
• Premium grade construction
• Inboard joint: male, spline connection, 27 splines
• Outboard joint: conventional, spline connection, 30 splines
• Thermoplastic boot material on inboard and outboard joints
• Includes axle nut with M24x1.5 thread, 32 mm hex size, and stake locking type
• No ABS tone ring included; ABS ring tooth count: 0

Detailed Description

TrakMotive KA-86025 is a front right CV axle shaft engineered for 2021-2023 Hyundai Sonata, 2021-2023 Kia K5, and 2020 Hyundai Sonata through 11/5/20. The axle uses an OE AAR design and is built to match the listed spline and length specifications, including 27 inboard splines, 30 outboard splines, a 37.625-inch compressed length, and a 39.5-inch extended length. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

The TrakMotive AAR CV Axle Shaft line focuses on application-specific driveline replacement parts for vehicles that require accurate fit, joint geometry, and axle nut specification. KA-86025 follows that approach for Sonata and K5 front right service work, making it a direct replacement option for the listed OE AAR configuration.

What It Helps Fix

• Clicking or popping during turns caused by worn CV joints
• Vibration from a worn or damaged axle shaft
• Grease leakage from torn or deteriorated CV boots
• Driveline noise from spline or joint wear
• Loss of smooth power transfer to the front right wheel

Installation Notes

Verify the vehicle’s build date and position before ordering. This axle fits front right applications only and the 2020 Hyundai Sonata listing applies through 11/5/20. Confirm axle nut thread size, hex size, and spline count against the original part before installation. The included axle nut uses a stake locking design.

Quality Assurance

TrakMotive lists KA-86025 as a premium-grade CV axle shaft from an ISO 9001:2008 and TS 16949:2009 certified company. The part is backed by a limited lifetime warranty.
