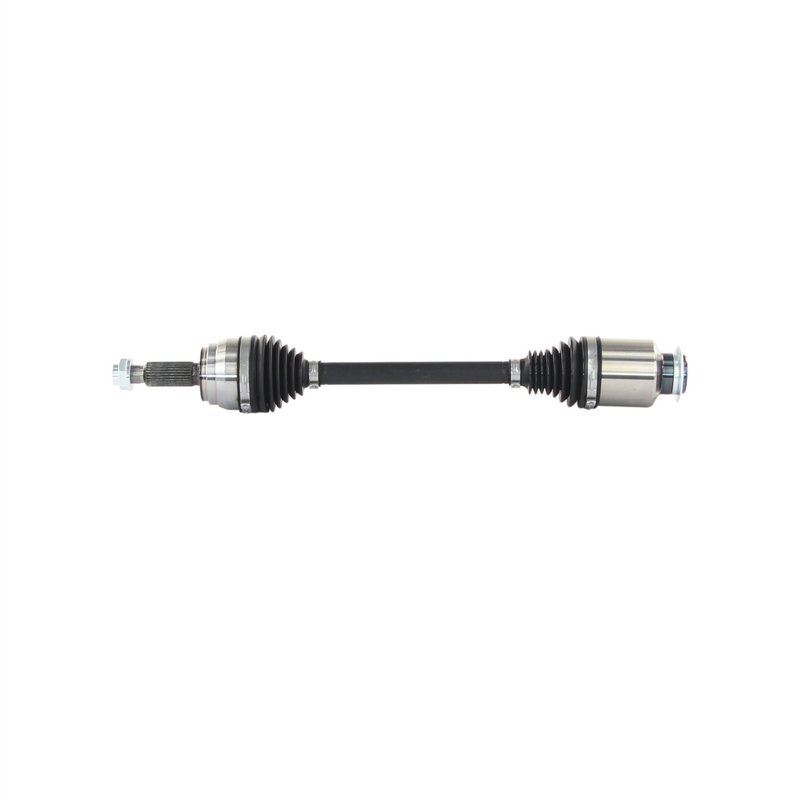

TrakMotive KA-86026 CV Axle Shaft - Front Right
| Brand | TrakMotive KA-86026 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .81 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28-2t |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.44 |
| Overall Compressed Length (mm) | 596 |
| Overall Extended Length (in) | 25.31 |
| Product line | CV Axle Shaft |
| Fits | Kia · 2 vehicles |
Premium grade. Built with thermoplastic boots for durable CV joint protection.
Spline connection. Female inboard joint and conventional outboard joint for secure engagement.
Axle nut included. Hex nut with stake locking and 32 mm socket size.
Cross-references TrakMotive KA-86026 for the same application. See all 1.
CV Axle Shaft for 2020-2021 Kia Forte Front Right
TrakMotive KA-86026 is a premium CV axle shaft for the front right position on the 2020-2021 Kia Forte. It is built for standard duty replacement needs and is engineered with the fitment and dimensions needed for a direct driveline service job.
Key Features
- Fits 2020-2021 Kia Forte, front right
- TrakMotive CV Axle Shaft, part number KA-86026
- Premium grade replacement axle for driveline service
- Includes axle nut with M22x1.5 thread, 32 mm hex size, and stake locking type
- Inboard joint uses a female spline connection with 28-2T splines
- Outboard joint uses a conventional design with 27 splines
- Thermoplastic boot material on both inboard and outboard joints
- Overall compressed length: 23.44 in (596 mm); extended length: 25.31 in (643 mm)
- No ABS tone ring included; ABS ring tooth count: 0
Product Details
KA-86026 is a TrakMotive CV axle shaft for the front right side of the 2020-2021 Kia Forte. The axle is configured with a spline-style inboard shaft connection, a conventional outboard joint, and the specified compressed and extended lengths to match the application. TrakMotive identifies this as a premium replacement part, and the axle nut is included for the listed fitment.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, with ISO 9001:2008 and TS 16949:2009 certified manufacturing processes. This part cross-references TrakMotive KA-86026 for the same application.
Common Repair Applications
- Front right axle noise or vibration during acceleration
- Clicking or popping from a worn CV joint
- Boot damage that has led to grease loss and joint wear
- Driveline play or binding at the front axle
- Replacement after axle shaft wear on a 2020-2021 Kia Forte
Installation Notes and Tips
Verify the front right position, spline count, axle nut thread size, and overall length before installation. Inspect the hub, seals, and surrounding suspension components during service, and confirm the axle nut is properly staked after tightening. This axle is listed for non-ABS applications unless otherwise noted, and the product data shows no ABS tone ring included.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certification for its manufacturing system.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2021 | Kia | Forte | 1.6L | L4 | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Kia | Forte | 1.6L | L4 | Front Right | Standard Duty Replacement; CV Axle Shaft |
