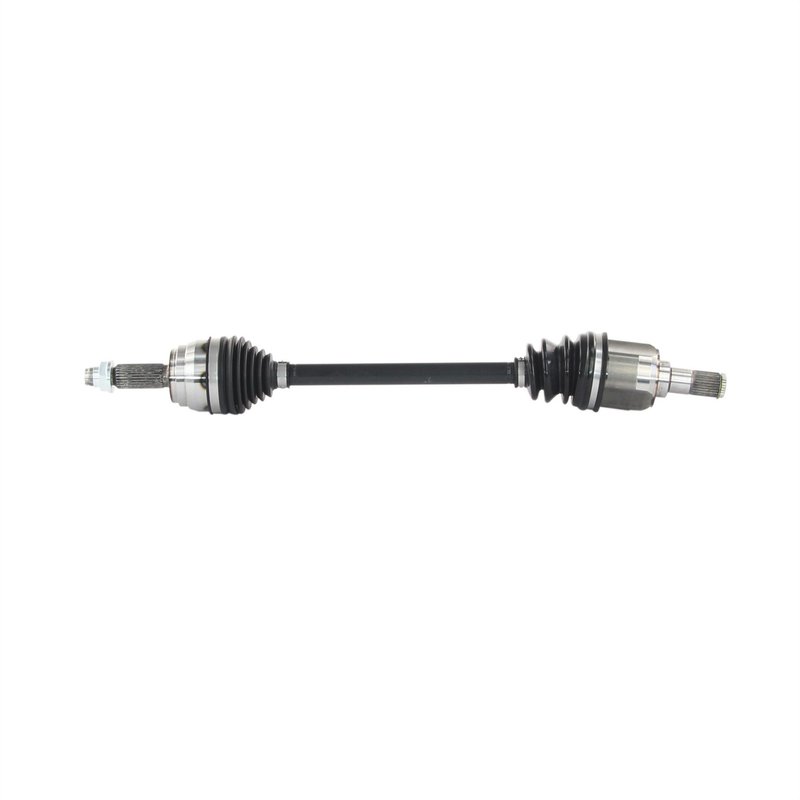

TrakMotive KA-86034 CV Axle Shaft - Front Left

CV Axle Shaft for Kia Forte Front Left

Restore driveline performance with this TrakMotive CV axle shaft for the front left position on the 2020-2021 Kia Forte. Built as a premium replacement, TrakMotive KA-86034 is specified for standard-duty service and includes the axle nut for a direct repair on the confirmed application.

Key Features

• Fits 2020-2021 Kia Forte, front left
• TrakMotive CV Axle Shaft, part number KA-86034
• Premium grade replacement for driveline and axle service
• 27-spline inboard and 27-spline outboard shaft connection
• Male inboard joint with spline connection style
• Conventional outboard joint design
• Neoprene inboard boot material and thermoplastic outboard boot material
• Axle nut included; M22x1.5 thread, 32 mm hex size, stake locking type
• Overall compressed length: 26.44 in (671 mm)
• Overall extended length: 28.06 in (713 mm)

Detailed Description

TrakMotive KA-86034 is a front left CV axle shaft for the Kia Forte, engineered for the 2020 and 2021 model years listed in the fitment data. It uses a 27-spline inboard and 27-spline outboard configuration, with a conventional outboard joint and a male inboard joint to match the specified drivetrain layout. The axle nut is included, and the assembly measures 26.44 inches compressed and 28.06 inches extended for the confirmed application. TrakMotive identifies this CV axle shaft as a standard-duty replacement for the Kia Forte front left position.

TrakMotive’s CV Axle Shaft product line focuses on replacement driveline components for passenger vehicles, with application-specific dimensions and joint configurations to support accurate service selection. Part number KA-86034 is the direct reference for this Kia Forte front left axle shaft.

What This Part Helps Address

• Clicking or popping noises during turns from a worn CV joint
• Vibration or shudder during acceleration from axle wear
• Grease leakage from damaged axle boots
• Excessive play in the front left driveline assembly
• Loss of smooth power transfer to the front wheels

Installation Notes and Tips

Verify the vehicle’s front left application, spline count, axle nut thread size, and overall length before installation. Confirm that the axle nut specification matches the vehicle’s hub and torque requirements, and inspect related seals, hub components, and suspension hardware for wear while the axle is removed. This part cross-references TrakMotive KA-86034 for the same application.

Quality Assurance

TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The company also notes ISO 9001:2008 and TS 16949:2009 certification, reflecting documented quality management standards for its manufacturing processes.
