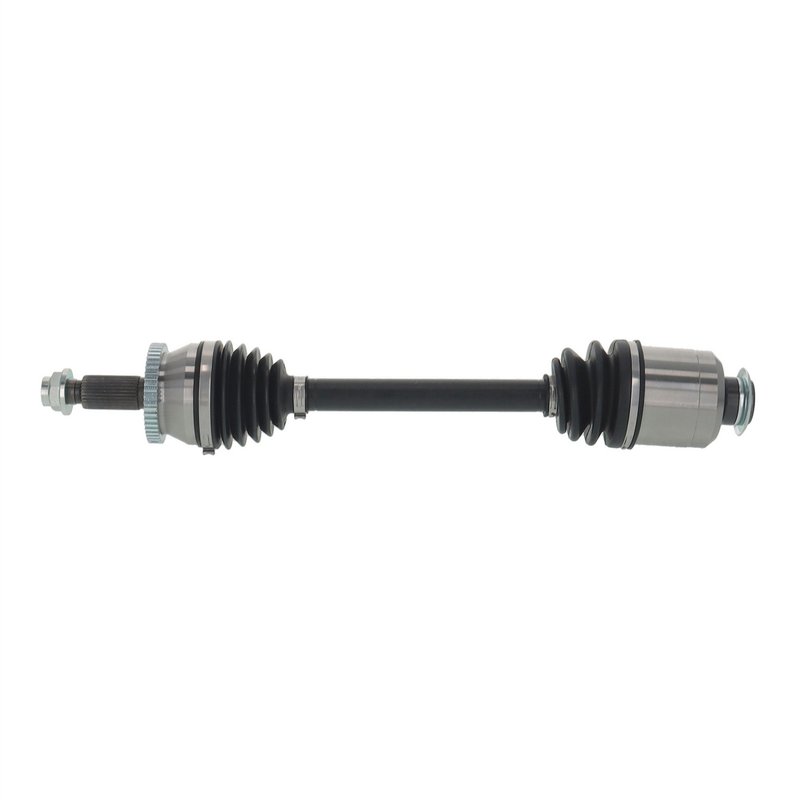

TrakMotive KA-86040 CV Axle Shaft - Front Right
| Brand | TrakMotive KA-86040 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 52 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.875 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28, 2 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.06 |
| Overall Compressed Length (mm) | 611 |
| Overall Extended Length (mm) | 665 |
| Product line | AAR CV Axle Shaft |
| Fits | Kia · 2 vehicles |
OE direct replacement. Built for a straightforward swap with no modifications needed.
ABS tone ring included. Helps provide the signal needed for ABS-equipped applications.
Premium grade. Neoprene and thermoplastic boots help protect the joints.
Cross-references TrakMotive KA-86040 for the same application. See all 1.
Front Right CV Axle Shaft for Kia Sorento
TrakMotive KA-86040 is a premium AAR CV axle shaft for the front right position on 2019-2020 Kia Sorento models. It is built for OE AAR design applications and includes the axle nut and ABS tone ring details needed for a direct replacement search.
Key Features
- Fits 2019-2020 Kia Sorento, front right
- TrakMotive AAR CV Axle Shaft, part number KA-86040
- Premium grade replacement axle shaft for driveline service
- ABS ring tooth count: 52 with toothed ring type
- ABS tone ring included
- Inboard joint type: female with spline connection
- Outboard joint type: conventional with spline connection
- Axle nut included; M24x1.5 thread, 32 mm hex size, stake locking type
- Inboard boot material: neoprene; outboard boot material: thermoplastic
- Overall compressed length: 24.06 in (611 mm); extended length: 26.19 in (665 mm)
Detailed Description
KA-86040 is a TrakMotive AAR CV axle shaft engineered for the front right side of the 2019-2020 Kia Sorento. This axle uses a 28-spline, 2-spline inboard configuration and a 30-spline outboard configuration, along with a toothed ABS ring and included tone ring for vehicles that require ABS signal integration. The OE AAR design reference makes this a focused replacement choice for Sorento driveline repair work.
The TrakMotive AAR CV Axle Shaft line is positioned for applications that need OE-style geometry and fitment-specific construction. For buyers searching by part number, KA-86040 is the direct reference for this front right Kia Sorento axle shaft application. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Repair
- Clicking or popping during turns caused by worn CV joints
- Vibration or shudder under acceleration from a damaged axle shaft
- ABS warning concerns related to a worn or incorrect tone ring setup
- Torn boots or grease loss at the inboard or outboard joint
- Driveline noise from spline wear or joint deterioration
Installation Notes and Tips
Confirm front right placement, spline counts, axle nut thread size, and ABS ring configuration before installation. Verify that the vehicle is a 2019-2020 Kia Sorento with the OE AAR design noted in the fitment data. Inspect hub, seals, and surrounding suspension components during axle replacement to help prevent repeat service.
Quality Assurance
TrakMotive lists this axle shaft with a limited lifetime warranty. The manufacturer also states that its products come from an ISO 9001:2008 and TS 16949:2009 certified company, supporting controlled production and quality management for driveline replacement parts.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Kia | Sorento | 3.3L | V6 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Kia | Sorento | 3.3L | V6 | Front Right | OE AAR design; AAR CV Axle Shaft |
