TrakMotivePart #: KA-86069

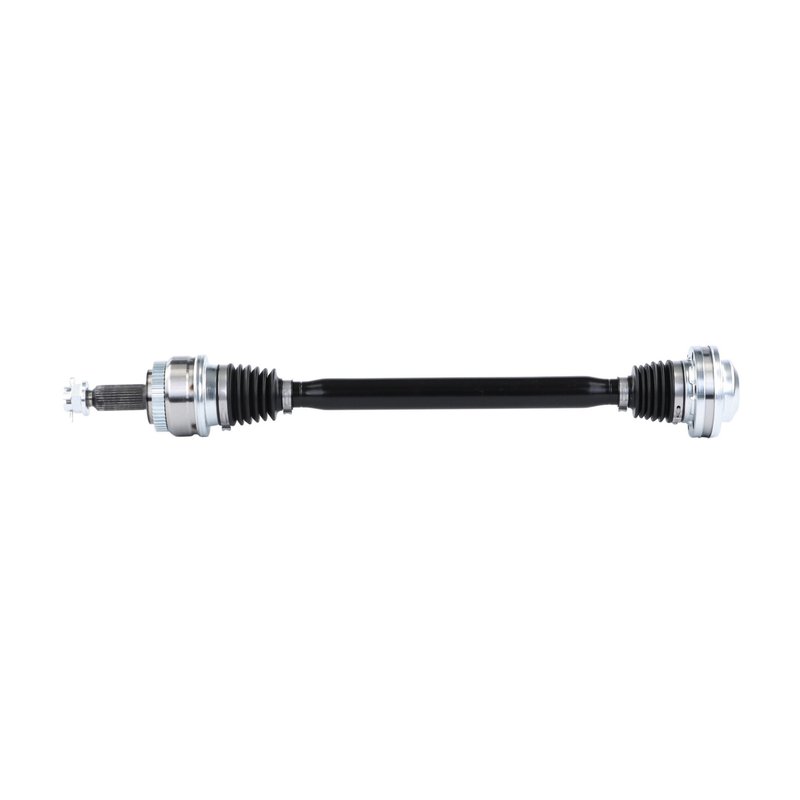

TrakMotive KA-86069 CV Axle Shaft - Rear Right
3 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$304.29Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
CV Axle Shaft, Rear Right
Fitment: Kia, K900
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all CV Axle Shaft options
TrakMotive KA-86069 CV Axle Shaft - Rear Right
| Brand | TrakMotive |
|---|---|
| Part Number | KA-86069 |
| Position | CV Axle Shaft, Rear Right |
| ABS Ring Tooth Count | 47 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1.06 |
| Axle Nut Height (mm) | 27 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Cotter pin |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 29.19 |
| Overall Compressed Length (mm) | 742 |
| Overall Extended Length (in) | 32.06 |
| Overall Extended Length (mm) | 815 |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2017 | Kia | K900 | 3.8L | V6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2016 | Kia | K900 | 3.8L | V6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2015 | Kia | K900 | 3.8L | V6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
KA-86069
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
