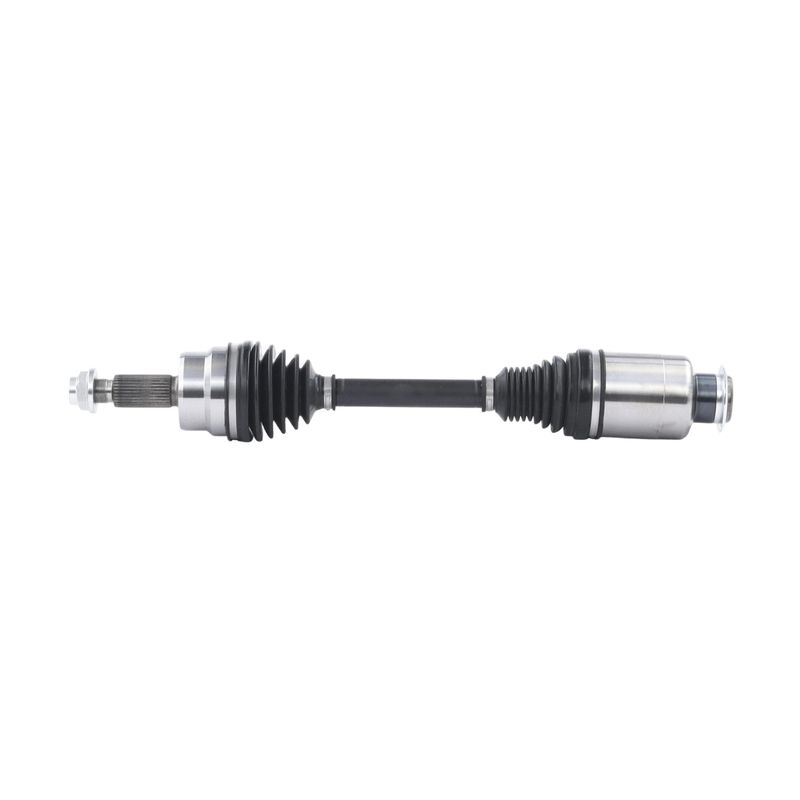

TrakMotive KA-86079 CV Axle Shaft - Front Right
| Brand | TrakMotive KA-86079 |
|---|---|
| Position | Front Right |
| ABS Tone Ring Included | No |
| ABS Tone Ring Tooth Quantity | 0 |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 37 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| Number Of Inboard Splines | 28, 2 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 22.13 |
| Overall Compressed Length (mm) | 562 |
| Overall Extended Length (in) | 24.81 |
| Overall Extended Length (mm) | 631 |
| Product line | AAR CV Axle Shaft |
| Fits | Kia · 1 vehicle |
Premium grade. Built as a CV axle shaft for driveline service and replacement.
Neoprene boots. Inboard and outboard joint boots use neoprene for added durability.
Axle nut included. Supplied with a stake-locking nut and M24 x 1.5 thread size.
Cross-references TrakMotive KA-86079 for the same application. See all 1.
Overview
The TrakMotive KA-86079 is a premium CV axle shaft for a specific front right application on the 2023 Kia Sportage. It is built as part of the AAR CV Axle Shaft line and includes an axle nut for service-ready replacement work.
Fits 2023 Kia Sportage, front right. This TrakMotive KA-86079 application is for Korea-built vehicles and is listed for non-ABS use unless otherwise noted.
Key Features
- Premium-grade CV axle shaft for driveline service
- Neoprene boots on the inboard and outboard joints
- Conventional outboard joint with female inboard connection
- ABS tone ring not included for non-ABS applications
- Includes axle nut with M24 x 1.5 thread size and stake locking type
Detailed Description
The TrakMotive KA-86079 CV axle shaft is engineered for the 2023 Kia Sportage front right position and matches the listed Korea-built application. The shaft uses a conventional outboard joint, a female inboard joint connection, and neoprene boot material at both ends to support driveline service in a direct replacement format. The included axle nut features a 32 mm hex size, M24 x 1.5 thread, and stake-style locking design. TrakMotive KA-86079 is part of the AAR CV Axle Shaft line and is backed by the brand's limited lifetime warranty.
This part cross-references TrakMotive KA-86079 for the same application.
What It Is Used For
- Restoring driveline function when the original axle shaft is worn or damaged
- Replacing a unit with torn boots or joint wear
- Addressing vibration or clicking caused by CV joint deterioration
- Servicing a non-ABS axle application that requires the correct shaft configuration
Installation Notes and Quality Assurance
Verify the vehicle build details, including Korea-built application and non-ABS configuration, before installation. Confirm spline count, axle nut thread size, and overall length against the removed part to ensure proper match. Professional installation is recommended for correct torque and fitment.
TrakMotive lists this axle shaft with a limited lifetime warranty and states that its manufacturing is supported by ISO 9001:2008 and TS 16949:2009 certification.
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2023 | Kia | Sportage | GAS | Front Right | Korea built; AAR CV Axle Shaft |
