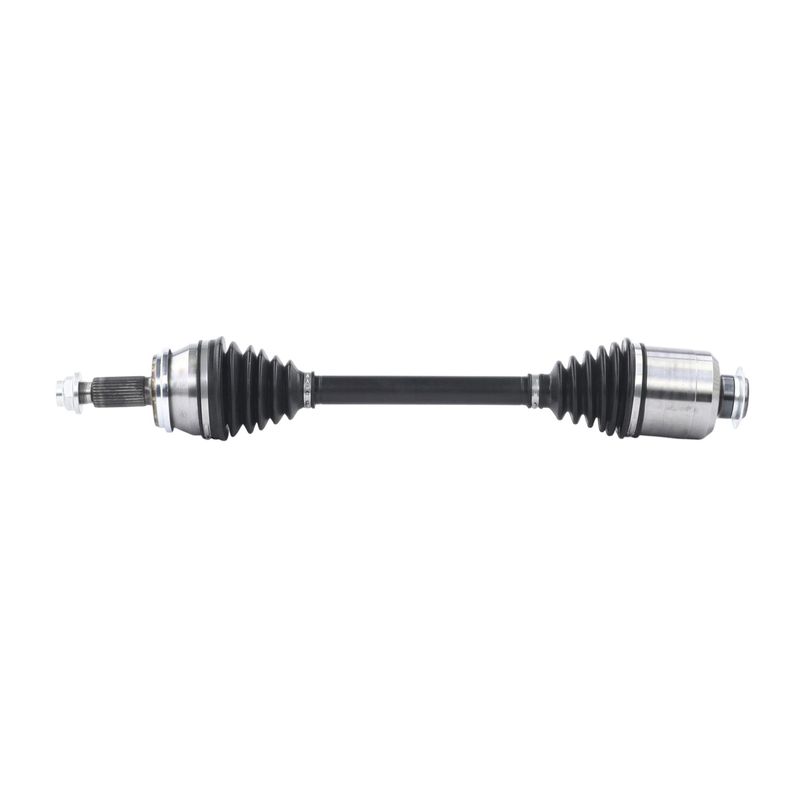

TrakMotive KA-86080 CV Axle Shaft - Front Right

OE AAR CV Axle Shaft

The TrakMotive AAR CV axle shaft, part number KA-86080, is built for front right applications on select Hyundai and Kia SUVs. It follows an OE AAR design and uses premium-grade components for a direct replacement fit in non-ABS applications unless otherwise noted.

Key Features

• OE AAR design for direct replacement fitment.
• Neoprene boots help protect the CV joints from contamination.
• Includes axle nut with M24x1.5 thread size and stake locking type.
• Female inboard connection and conventional outboard connection.
• Premium grade construction from an ISO 9001:2008 and TS 16949:2009 certified company.

Detailed Description

Part number KA-86080 is a TrakMotive CV axle shaft engineered for select Hyundai Palisade and Kia Telluride front right applications. It features a 25.63-inch compressed length, 27.75-inch extended length, 28 and 2 inboard splines, and 30 outboard splines. The axle uses neoprene boot material at both joints, a hex axle nut, and no ABS tone ring. This makes KA-86080 a fit-focused replacement for vehicles that require an OE AAR-style axle shaft with the specified connection and spline configuration.

TrakMotive’s AAR CV Axle Shaft line is positioned as an OE-style replacement range for driveline service, with application-specific construction and hardware details that simplify matching the correct axle to the vehicle. For buyers searching for a Hyundai Palisade CV axle shaft or Kia Telluride front right axle, KA-86080 provides the listed OE AAR design and dimensional specifications needed for accurate selection.

This part cross-references TrakMotive KA-86080 for the same application.

What It Is Used For

• Replacing a worn or noisy front right CV axle shaft.
• Restoring driveline operation after joint wear or boot damage.
• Addressing vibration or clicking caused by axle wear.
• Matching OE AAR-style axle specifications for service replacement.

Installation Notes and Tips

Verify the vehicle’s ABS and non-ABS configuration before ordering. Confirm spline counts, axle length, and axle nut thread size against the original part to ensure correct fitment. The included axle nut uses a 32 mm hex size and stake locking design.

Quality Assurance

TrakMotive lists a limited lifetime warranty for this axle shaft. The company is ISO 9001:2008 and TS 16949:2009 certified, supporting consistent manufacturing and quality control.
