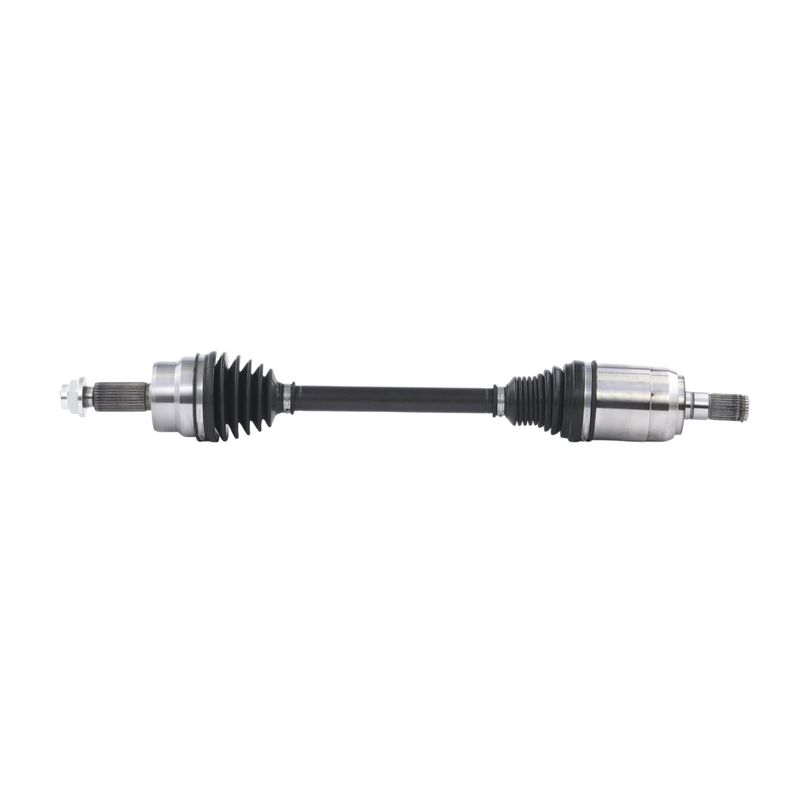

TrakMotive KA-86081 CV Axle Shaft - Front Left
| Brand | TrakMotive KA-86081 |
|---|---|
| Position | Front Left |
| ABS Tone Ring Included | No |
| ABS Tone Ring Tooth Quantity | 0 |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 37 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 26.44 |
| Overall Compressed Length (mm) | 672 |
| Overall Extended Length (in) | 29.13 |
| Overall Extended Length (mm) | 740 |
| Product line | AAR CV Axle Shaft |
| Fits | Kia · 1 vehicle |
Premium-grade design. Built as an AAR CV axle shaft with neoprene boot material.
Service-ready fitment. Includes an axle nut with M24x1.5 thread size.
Certified production. Made by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive KA-86081 for the same application. See all 1.
Overview
TrakMotive KA-86081 is a CV axle shaft for a specific front-left application on the 2023 Kia Sportage. It is built as part of the AAR CV Axle Shaft line and includes an axle nut for service-ready replacement.
Key Features
- Fits 2023 Kia Sportage, front left, Korea built.
- Premium-grade CV axle shaft with neoprene boots.
- 27 inboard splines and 30 outboard splines for the listed application.
- ABS tone ring is not included for non-ABS use unless otherwise noted.
- Includes a hex axle nut with M24x1.5 thread size.
Detailed Description
TrakMotive KA-86081 is a replacement CV axle shaft engineered for the 2023 Kia Sportage front-left position. The axle uses a conventional outboard joint, a male inboard joint, and spline connections at the inboard side for the specified fitment. Neoprene boot material helps protect the joints, while the listed compressed and extended lengths support correct axle geometry for the application. This part cross-references TrakMotive KA-86081 for the same application.
The AAR CV Axle Shaft line is positioned as a premium replacement option within TrakMotive driveline components. For buyers searching for a Kia Sportage CV axle shaft, Kia Sportage front left axle shaft, or KA-86081 CV axle replacement, this part matches the published fitment and construction details.
Common Issues Addressed
- Clicking or popping from a worn CV joint.
- Vibration during acceleration from a damaged axle shaft.
- Torn boots that expose the joint to contamination.
- Axle noise caused by spline or joint wear.
- Loss of driveline smoothness in the listed application.
Installation Notes
Verify the vehicle is a 2023 Kia Sportage, Korea built, with the front-left configuration before installation. Confirm axle nut thread size, hex size, and overall length against the removed part to ensure proper match. The axle nut is included; follow factory service procedures for torque and staking requirements.
Quality Assurance
TrakMotive lists a limited lifetime warranty for this part. The manufacturer also states ISO 9001:2008 and TS 16949:2009 certification, supporting controlled production standards for driveline components.
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2023 | Kia | Sportage | GAS | Front Left | Korea built; AAR CV Axle Shaft |
