TrakMotivePart #: KAW-7002

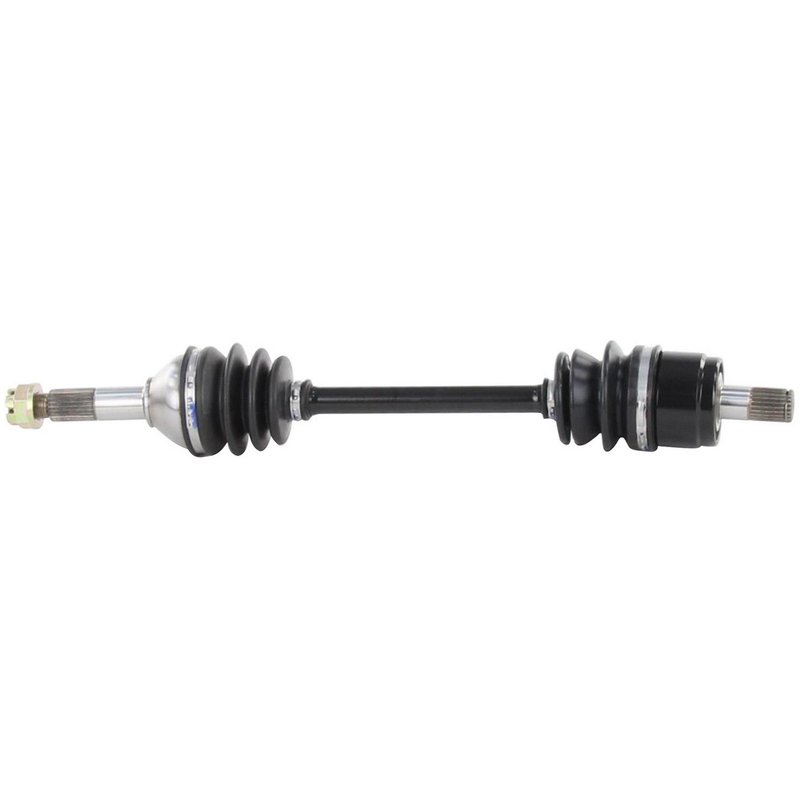

TrakMotive KAW-7002 CV Axle Assembly - Rear, Rear Left or Rear Right
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$180.58Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all CV Axle Assembly options
TrakMotive KAW-7002 CV Axle Assembly - Rear, Rear Left or Rear Right
| Brand | TrakMotive |
| Part Number | KAW-7002 |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Cotter pin |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Splines | 24 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 21.65 |
| Overall Compressed Length (mm) | 550 |
This part fits 0 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
0214-163841050018130104ATV-KW-8-312AX7402KAW-6002HDKAW-7002PAXL-1112PAXL-1112HD
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
