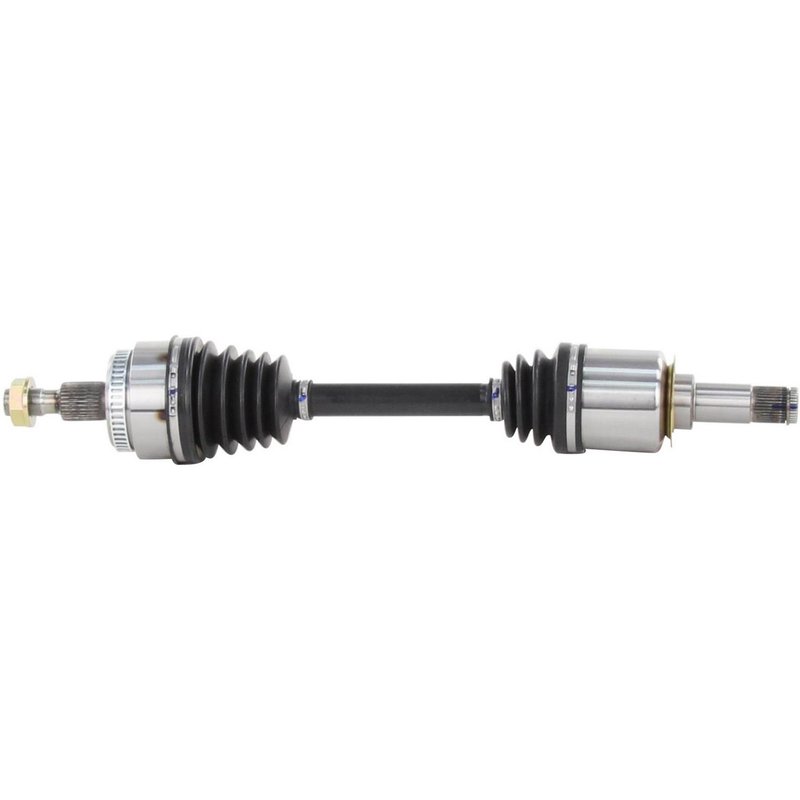

TrakMotive MB-8005 CV Axle Shaft - Front Left
| Brand | TrakMotive MB-8005 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/8 |
| Axle Nut Height (mm) | 16 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 37 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.92 |
| Overall Compressed Length (mm) | 633 |
| Product line | CV Axle Shaft |
| Fits | Mercedes-Benz · 20 vehicles |
New axle shaft. Built as a fresh replacement, not remanufactured.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Ready for applications that use a toothed sensor ring.
Cross-references Cardone New 66-9015, National 229005 and TrakMotive MB-8005 for the same application. See all 17.
Mercedes-Benz ML Front Left CV Axle Shaft
Restore driveline performance with the TrakMotive MB-8005 CV axle shaft for select Mercedes-Benz ML applications. This front left axle is built as a new replacement assembly with the correct spline counts, ABS tone ring, and included axle nut details for a direct-fit service on covered vehicles.
Key Features
- TrakMotive CV Axle Shaft, part number MB-8005
- Fits front left applications on select Mercedes-Benz ML320, ML430, ML500, ML55 AMG, and ML350 models
- New axle assembly with 37 inboard splines and 30 outboard splines
- Neoprene boot material for drivetrain protection
- ABS tone ring included with 48-tooth toothed ring
- Includes axle nut with M24 x 1.5 thread size, 35.6 mm hex size, and standard locking type
- Overall compressed length: 24.92 in. (633 mm)
- Inboard joint type: male; outboard joint type: conventional
Product Details
The TrakMotive MB-8005 is a front left CV axle shaft engineered for Mercedes-Benz ML platform vehicles from 1998 through 2005. It is specified for ML320, ML430, ML500, ML55 AMG, and ML350 applications, with fitment coverage that matches the listed spline counts, axle length, and ABS tone ring configuration. TrakMotive identifies this as a new part, and the brand notes ISO 9001:1007 and TS 16949:2009 certified manufacturing practices. The MB-8005 also cross-references Cardone New 66-9015 for the same application.
Common Issues This Part Can Address
- Clicking or popping from a worn front left CV joint during turns
- Vibration or shudder caused by axle wear or imbalance
- Torn or deteriorated axle boot allowing grease loss and contamination
- ABS warning concerns related to a damaged tone ring or incorrect axle configuration
- Driveline noise from excessive play in the axle assembly
Installation Notes and Tips
Verify the vehicle’s front left application, spline count, and ABS configuration before installation. Confirm axle nut thread size and hex size against the original hardware, and inspect the hub, seals, and mating components for wear before reassembly. Because this axle uses a male inboard connection and conventional outboard joint design, matching the original drivetrain layout is important for proper fitment on Mercedes-Benz ML320, ML430, ML500, ML55 AMG, and ML350 models.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The MB-8005 is produced by an ISO 9001:1007 and TS 16949:2009 certified company, supporting consistent manufacturing control for Mercedes-Benz ML front left axle replacement service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Mercedes-Benz | ML350 | Front Left | CV Axle Shaft |
| 2005 | Mercedes-Benz | ML500 | Front Left | CV Axle Shaft |
| 2004 | Mercedes-Benz | ML350 | Front Left | CV Axle Shaft |
| 2004 | Mercedes-Benz | ML500 | Front Left | CV Axle Shaft |
| 2003 | Mercedes-Benz | ML320 | Front Left | CV Axle Shaft |
| 2003 | Mercedes-Benz | ML350 | Front Left | CV Axle Shaft |
| 2003 | Mercedes-Benz | ML500 | Front Left | CV Axle Shaft |
| 2003 | Mercedes-Benz | ML55 AMG | Front Left | CV Axle Shaft |
| 2002 | Mercedes-Benz | ML320 | Front Left | CV Axle Shaft |
| 2002 | Mercedes-Benz | ML500 | Front Left | CV Axle Shaft |
| 2002 | Mercedes-Benz | ML55 AMG | Front Left | CV Axle Shaft |
| 2001 | Mercedes-Benz | ML320 | Front Left | CV Axle Shaft |
| 2001 | Mercedes-Benz | ML430 | Front Left | CV Axle Shaft |
| 2001 | Mercedes-Benz | ML55 AMG | Front Left | CV Axle Shaft |
| 2000 | Mercedes-Benz | ML320 | Front Left | CV Axle Shaft |
| 2000 | Mercedes-Benz | ML430 | Front Left | CV Axle Shaft |
| 2000 | Mercedes-Benz | ML55 AMG | Front Left | CV Axle Shaft |
| 1999 | Mercedes-Benz | ML320 | Front Left | CV Axle Shaft |
| 1999 | Mercedes-Benz | ML430 | Front Left | CV Axle Shaft |
| 1998 | Mercedes-Benz | ML320 | Front Left | CV Axle Shaft |
