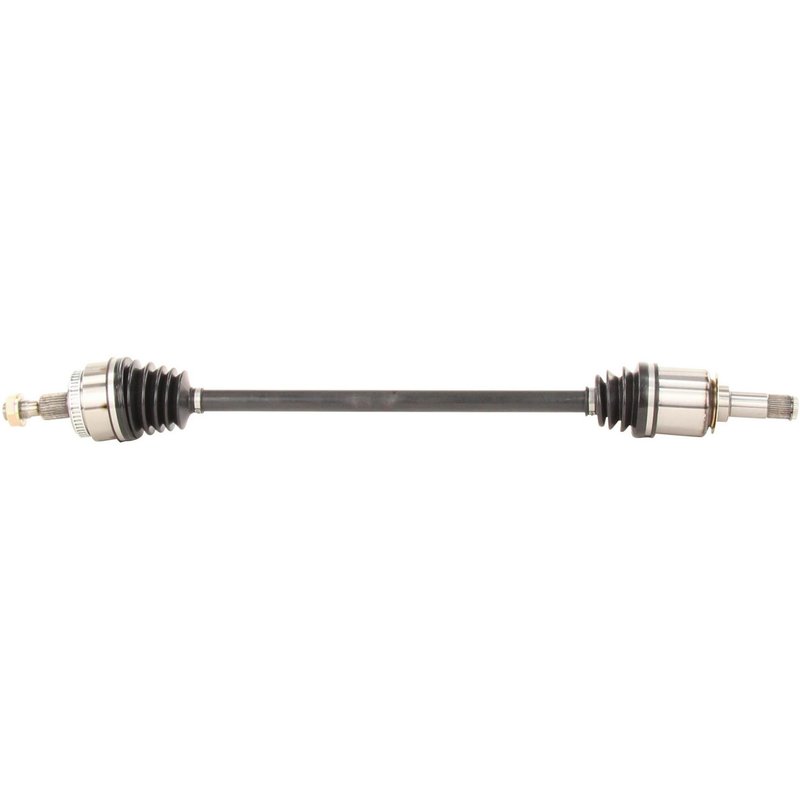

TrakMotive MB-8006 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft MB-8006

The TrakMotive CV Axle Shaft MB-8006 is engineered for reliable driveline performance in select Mercedes-Benz models. Designed to meet OEM specifications, this new CV axle shaft ensures smooth power transfer and durability for your ML55 AMG, ML320, ML350, ML430, and ML500 vehicles.

• Compatible with Mercedes-Benz ML55 AMG, ML320, ML350, ML430, and ML500
• Includes ABS tone ring with 48 toothed ring teeth for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced protection against contaminants
• Axle nut included with standard locking type and hex head design
• Overall compressed length of 37.8 inches (960 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed to restore driveline integrity. This line emphasizes exact fitment and durability, featuring components like male inboard joints and conventional outboard joints to match factory specifications. The MB-8006 part is a new axle shaft that integrates a toothed ABS ring and includes the axle nut, ensuring a complete replacement solution for your Mercedes-Benz ML series.

Technical Specifications and Features

This CV axle shaft features a 48-tooth ABS ring with a toothed design, which is essential for accurate ABS sensor readings. The included ABS tone ring supports the vehicle's anti-lock braking system functionality. The axle nut has a hex head type measuring 1 2/5 inches (35.6 mm) across flats, with a height of 5/8 inch (16 mm) and a length of 1 1/2 inches (37.53 mm). It uses a standard locking mechanism and a thread size of M24*1.5. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint. The inboard joint is a male type with 37 splines, while the outboard joint is conventional with 30 splines, ensuring compatibility with the specified Mercedes-Benz models.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Mercedes-Benz ML55 AMG, ML320, ML350, ML430, and ML500
• Restoring proper ABS sensor function due to faulty or missing ABS tone rings
• Eliminating axle vibrations or clicking noises caused by joint wear
• Addressing grease leaks or boot damage with durable neoprene boot material
• Ensuring secure axle nut fitment with included hardware matching OEM specs

Installation Notes and Tips

When installing the TrakMotive MB-8006 CV axle shaft, verify the axle nut torque specifications for your specific Mercedes-Benz model. The included axle nut features a standard locking type and hex head, facilitating straightforward installation with common tools. Inspect the ABS tone ring alignment carefully to maintain proper sensor operation. Ensure the neoprene boot is seated correctly to prevent contamination and premature joint failure. It is recommended to replace axle nuts with the included hardware to maintain secure fastening.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MB-8006 is a new, remanufactured-quality component designed to meet or exceed OEM standards. It includes all necessary hardware for installation and is manufactured with durable materials such as neoprene boots and precision-machined joints. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in Mercedes-Benz ML series vehicles.
