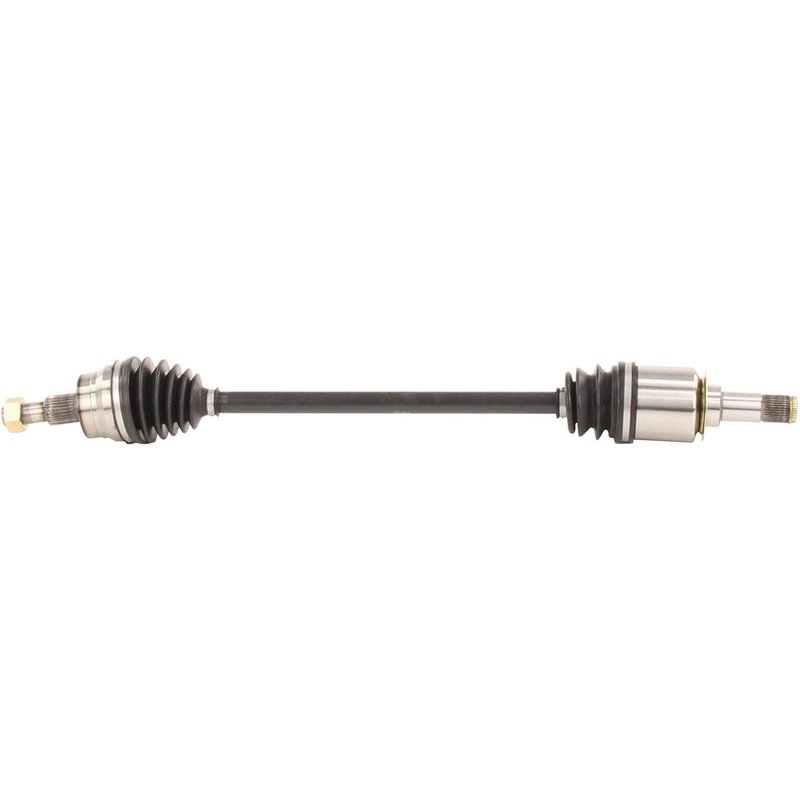

TrakMotive MB-8011 CV Axle Shaft - Rear Left or Rear Right

Mercedes-Benz Rear CV Axle Shaft

TrakMotive MB-8011 is a new rear CV axle shaft for select Mercedes-Benz GL-Class and M-Class applications. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service on the rear left or rear right position where listed.

Compatible with Mercedes-Benz GL350, GL450, GL550, GL320, ML350, ML550, ML320, and ML500 rear axle applications, this CV axle shaft is specified for vehicles that use a 37-spline inboard and 30-spline outboard configuration. The included axle nut uses an M24 x 1.5 thread, 34.64 mm hex size, and standard locking type.

Key Features

• TrakMotive CV Axle Shaft, part number MB-8011
• New replacement axle for rear left and rear right applications listed below
• Neoprene boot material for driveline protection
• Male inboard shaft connection with conventional outboard joint
• 37 inboard splines and 30 outboard splines
• Axle nut included with M24 x 1.5 thread and 34.64 mm hex size
• Overall compressed length: 32.89 in. (835.5 mm)
• No ABS tone ring included

Product Details

TrakMotive CV Axle Shaft MB-8011 is engineered for rear driveline service on Mercedes-Benz GL-Class and M-Class vehicles. The axle is a new unit with a 32.89-inch compressed length, neoprene boot construction, and the specified spline counts and joint styles needed for the listed applications. TrakMotive identifies this axle as part of its CV Axle Shaft line and notes ISO 9001:1007 and TS 16949:2009 certified manufacturing practices.

This part cross-references Cardone New 66-9299 and Cardone Reman 60-9299 for the same application.

Vehicle Fitment

• Fits 2010-2012 Mercedes-Benz GL350, rear right.
• Fits 2010-2012 Mercedes-Benz GL350, rear left.
• Fits 2007-2012 Mercedes-Benz GL450, rear right, w/o Off Road Package.
• Fits 2007-2012 Mercedes-Benz GL450, rear left, w/o Off Road Package.
• Fits 2012 Mercedes-Benz GL550, rear right, w/o Off Road Package.
• Fits 2008-2010 Mercedes-Benz GL550, rear right, w/o Off Road Package.
• Fits 2012 Mercedes-Benz GL550, rear left, w/o Off Road Package.
• Fits 2008-2010 Mercedes-Benz GL550, rear left, w/o Off Road Package.
• Fits 2006-2011 Mercedes-Benz ML350, rear right.
• Fits 2006-2011 Mercedes-Benz ML350, rear left.
• Fits 2008-2011 Mercedes-Benz ML550, rear right.
• Fits 2008-2011 Mercedes-Benz ML550, rear left.
• Fits 2007-2009 Mercedes-Benz GL320, rear right.
• Fits 2007-2009 Mercedes-Benz GL320, rear left.
• Fits 2007-2009 Mercedes-Benz ML320, rear right.
• Fits 2007-2009 Mercedes-Benz ML320, rear left.
• Fits 2006-2007 Mercedes-Benz ML500, rear right.
• Fits 2006-2007 Mercedes-Benz ML500, rear left.

Installation Notes

• Verify rear left or rear right position before ordering.
• Confirm the vehicle is not equipped with the Off Road Package where noted for GL450 and GL550 applications.
• Check spline count, axle length, and axle nut thread size against the original part before installation.
• Inspect related seals, hubs, and suspension components during axle replacement.
• ABS tone ring is not included.

Quality Assurance

TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also states ISO 9001:1007 and TS 16949:2009 certified company status, supporting controlled manufacturing for driveline replacement parts.
