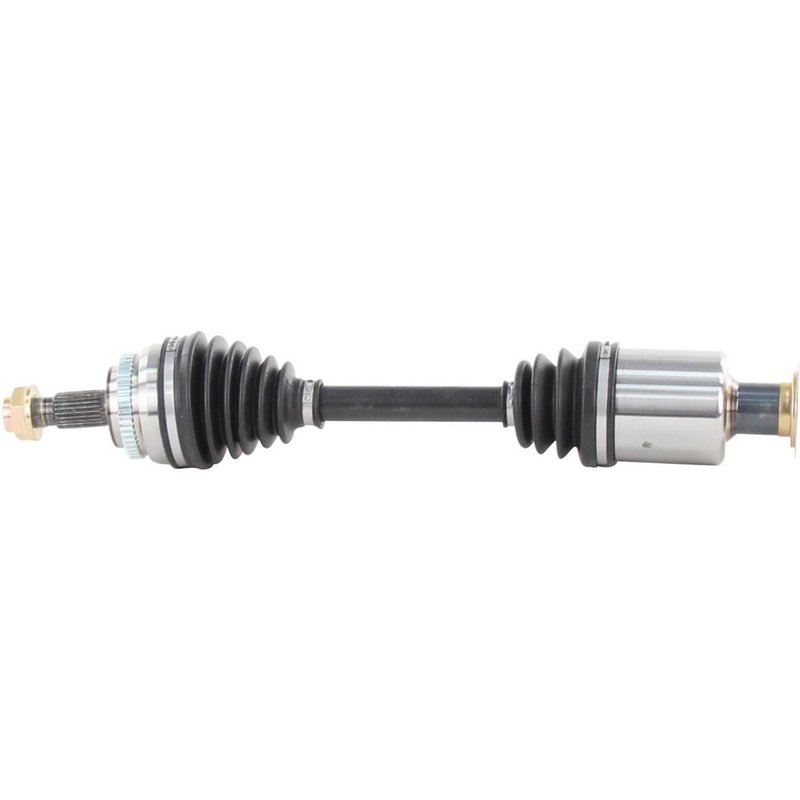

TrakMotive MB-8014 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MB-8014 for Mercedes-Benz E320

The TrakMotive CV Axle Shaft MB-8014 is engineered specifically for the Mercedes-Benz E320, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Mercedes-Benz E320 models
• Includes a neoprene boot for durability and protection
• Equipped with a 48-tooth ABS ring and included tone ring
• Features a hex head axle nut with stake locking type
• Overall compressed length of 21.3 inches (541 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that match factory specifications. This CV axle shaft line includes components with high-quality neoprene boots and ABS tone rings to maintain proper wheel speed sensor function. The MB-8014 model is part of this line, designed to provide a direct replacement for Mercedes-Benz E320 vehicles requiring a dependable CV axle shaft.

Technical Specifications and Features

This CV axle shaft features a female inboard joint type with 34 splines and a conventional outboard joint with 25 splines, ensuring secure shaft connections. The included ABS ring has 48 teeth and a toothed design, with the tone ring included to maintain ABS sensor accuracy. The axle nut is a hex head type measuring 1 2/5 inches (35.6 mm) across flats, with a height of 1 inch (23 mm) and a length of 1 1/2 inches (37.53 mm). It uses an M24x1.5 thread size and a stake locking mechanism for secure installation.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Mercedes-Benz E320
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration or clicking noises during turns
• Addresses boot damage or grease leakage issues
• Resolves axle nut loosening with stake locking design

Installation Notes and Tips

Ensure compatibility with your Mercedes-Benz E320 before installation. Use proper torque specifications for the M24x1.5 axle nut and verify the stake locking mechanism is properly engaged to prevent loosening. Inspect the neoprene boot for any damage during installation and confirm the ABS tone ring is correctly positioned for sensor operation.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MB-8014 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a neoprene boot for enhanced durability and an ABS tone ring to maintain vehicle safety systems. Warranty details should be confirmed with the distributor or manufacturer to ensure coverage.
