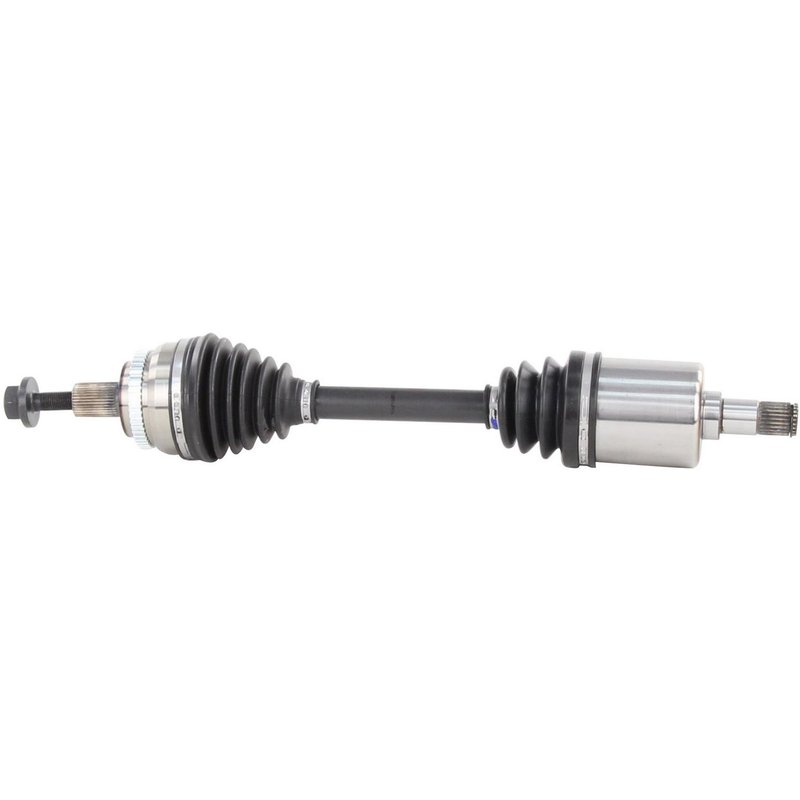

TrakMotive MB-8017 CV Axle Shaft - Front Right

Mercedes-Benz E-Class Front Right CV Axle Shaft

TrakMotive MB-8017 is a new front right CV axle shaft for select Mercedes-Benz E320 and E430 applications. It is built with a neoprene boot, a 24-spline male inboard connection, and an Audi-style spline bolt outboard joint for direct driveline service.

Key Features

• Fits 2000-2003 Mercedes-Benz E320, front right
• Fits 2000-2002 Mercedes-Benz E430, front right
• New CV axle shaft for driveline repair
• 48-tooth toothed ABS ring with tone ring included
• 27 mm axle bolt hex size, M16 x 1.5 thread, 86 mm bolt length
• 24 inboard splines and 35 outboard splines
• Neoprene boot material for CV joint protection
• Overall compressed length: 527 mm (20.75 in)

Detailed Description

TrakMotive CV Axle Shaft MB-8017 is a direct-fit driveline replacement for Mercedes-Benz E320 and Mercedes-Benz E430 front right applications listed above. The axle uses a male inboard shaft connection and an Audi-style spline bolt outboard connection, with a toothed ABS ring and included tone ring for vehicles that use ABS signal input at the axle. TrakMotive positions this CV axle shaft as a new replacement part built under ISO 9001:1007 and TS 16949:2009 certified manufacturing standards.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. TrakMotive MB-8017 is a practical choice when servicing a Mercedes-Benz E320 front right CV axle shaft or a Mercedes-Benz E430 front right axle assembly with the listed spline and bolt specifications.

Common Repair Uses

• Restores power transfer when the original axle has worn CV joints
• Addresses clicking or popping during turns caused by joint wear
• Helps correct vibration from a damaged or imbalanced axle shaft
• Replaces a torn boot that has allowed grease loss and contamination
• Supports ABS-related driveline service when the axle tone ring is required

Installation Notes

Verify spline count, axle bolt size, and overall compressed length before installation. Confirm front right placement and compare the outboard Audi-style spline bolt connection to the original part. The axle nut is not included, so reuse or source the correct hardware separately as needed. Always inspect seals, hub condition, and surrounding suspension components during replacement.

Quality Assurance

TrakMotive manufactures this CV axle shaft as a new part and backs it with a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certified production processes for consistent quality control.
