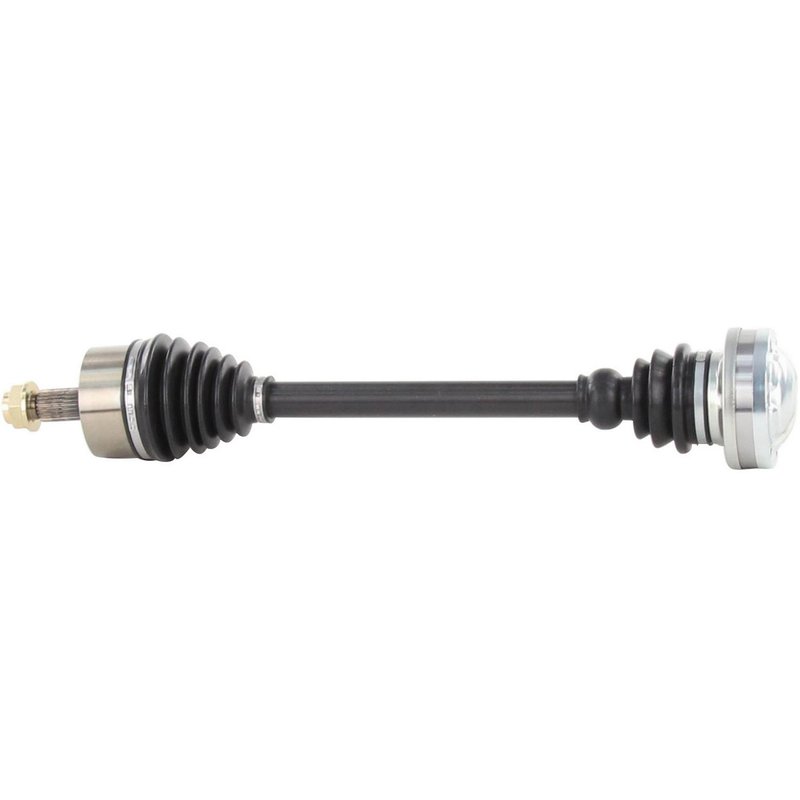

TrakMotive MB-8018 CV Axle Shaft - Rear Left or Rear Right
| Brand | TrakMotive MB-8018 |
|---|---|
| Position | Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.16 |
| Overall Compressed Length (mm) | 639 |
| Product line | CV Axle Shaft |
| Fits | Mercedes-Benz · 62 vehicles |
OE direct replacement. Bolt-on CV axle shaft for straightforward installation.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ISO 9001 and TS 16949 certified. Built by a company with recognized quality management standards.
Cross-references TrakMotive MB-8018, 60-9441 and 60-9449 for the same application. See all 8.
Mercedes-Benz Rear CV Axle Shaft MB-8018
TrakMotive MB-8018 is a new rear CV axle shaft for select Mercedes-Benz applications, including C230, C280, C36 AMG, E300, E320, SL320, 300CE, 300D, 300E, 300SL, and 300TE models. It is built for rear right, rear left, and rear positions where listed, with application-specific notes for ASR and traction control setups.
Key Features
- New CV axle shaft for rear driveline service
- Neoprene boot material for joint protection
- Bolt-on inboard joint and bolt-on inboard shaft connection style
- Conventional outboard joint with spline shaft connection
- 25 outboard splines
- Includes axle nut with M24 x 1.5 thread, stake locking type, and hex head
- No ABS tone ring included
- Overall compressed length: 25.16 in. (639 mm)
- TrakMotive part number MB-8018
Product Details
TrakMotive CV Axle Shaft MB-8018 is engineered as a direct replacement for rear Mercedes-Benz driveline service where the original axle has worn joints, torn boots, vibration, or noise under load. The bolt-on inboard design and spline-style outboard connection support the factory-style rear axle layout used across multiple Mercedes-Benz C-Class, E-Class, SL-Class, and 300-series applications. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components built to meet application-specific fitment requirements. MB-8018 is a new unit, not remanufactured, and is backed by ISO 9001:1007 and TS 16949:2009 certified manufacturing processes. The included axle nut and specified thread, height, and hex size help support correct service on the listed Mercedes-Benz rear axle applications.
Common Issues This Part Can Address
- Clicking, clunking, or vibration from a worn rear CV axle
- Boot damage that can lead to grease loss and joint wear
- Axle play or driveline noise during acceleration or deceleration
- Rear axle service needs on Mercedes-Benz models with ASR or traction control notes
- Replacement of a damaged axle on rear right, rear left, or rear applications listed below
Installation Notes and Fitment
Compatible With 1999-2000 Mercedes-Benz C230, rear right and rear left, w/o ASR; 1994-1997 Mercedes-Benz C280, rear right and rear left, w/o ASR; 1995-1997 Mercedes-Benz C36 AMG, rear; 1995 Mercedes-Benz E300, rear; 1994-1995 Mercedes-Benz E320, rear right; 1994 Mercedes-Benz E320, rear left; 1994-1995 Mercedes-Benz SL320, rear right and rear left; 1993 and 1990 Mercedes-Benz 300CE, rear; 1990-1993 Mercedes-Benz 300D, rear right and rear left; 1993 and 1990-1992 Mercedes-Benz 300E, rear right and rear left; 1990-1993 Mercedes-Benz 300SL, rear right and rear left; 1993 and 1991-1992 Mercedes-Benz 300TE, rear right and rear left; and 1987-1989 Mercedes-Benz 300E, rear.
Verify axle position, ASR or traction control notes, spline count, and compressed length before installation. Confirm the axle nut thread size and locking style match the vehicle’s service requirements. TrakMotive MB-8018 is listed for rear Mercedes-Benz applications with specific configuration notes, so matching the exact vehicle setup is important before ordering.
Quality Assurance
TrakMotive manufactures this CV axle shaft under ISO 9001:1007 and TS 16949:2009 certified quality systems. MB-8018 is covered by a limited lifetime warranty.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2000 | Mercedes-Benz | C230 | — | — | Rear Right | w/o ASR; CV Axle Shaft |
| 2000 | Mercedes-Benz | C230 | — | — | Rear Left | w/o ASR; CV Axle Shaft |
| 1999 | Mercedes-Benz | C230 | — | — | Rear Right | w/o ASR; CV Axle Shaft |
| 1999 | Mercedes-Benz | C230 | — | — | Rear Left | w/o ASR; CV Axle Shaft |
| 1997 | Mercedes-Benz | C280 | — | — | Rear Right | w/o ASR; CV Axle Shaft |
| 1997 | Mercedes-Benz | C280 | — | — | Rear Left | w/o ASR; CV Axle Shaft |
| 1997 | Mercedes-Benz | C36 AMG | — | — | Rear | Standard Duty Replacement; CV Axle Shaft |
| 1996 | Mercedes-Benz | C280 | — | — | Rear Right | w/o ASR; CV Axle Shaft |
| 1996 | Mercedes-Benz | C280 | — | — | Rear Left | w/o ASR; CV Axle Shaft |
| 1996 | Mercedes-Benz | C36 AMG | — | — | Rear | Standard Duty Replacement; CV Axle Shaft |
| 1995 | Mercedes-Benz | C280 | — | — | Rear Right | w/o ASR; CV Axle Shaft |
| 1995 | Mercedes-Benz | C280 | — | — | Rear Left | w/o ASR; CV Axle Shaft |
| 1995 | Mercedes-Benz | C36 AMG | — | — | Rear | Standard Duty Replacement; CV Axle Shaft |
| 1995 | Mercedes-Benz | E300 | — | — | Rear | Standard Duty Replacement; CV Axle Shaft |
| 1995 | Mercedes-Benz | E320 | — | — | Rear Right | w/Traction Control; CV Axle Shaft |
| 1995 | Mercedes-Benz | SL320 | — | — | Rear Right | W/ ASR; CV Axle Shaft |
| 1995 | Mercedes-Benz | SL320 | — | — | Rear Left | W/ ASR; CV Axle Shaft |
| 1994 | Mercedes-Benz | C280 | — | — | Rear Right | w/o ASR; CV Axle Shaft |
| 1994 | Mercedes-Benz | C280 | — | — | Rear Left | w/o ASR; CV Axle Shaft |
| 1994 | Mercedes-Benz | E320 | — | — | Rear Right | w/Traction Control; CV Axle Shaft |
| 1994 | Mercedes-Benz | E320 | — | — | Rear Left | w/Traction Control; CV Axle Shaft |
| 1994 | Mercedes-Benz | SL320 | — | — | Rear Right | W/ ASR; CV Axle Shaft |
| 1994 | Mercedes-Benz | SL320 | — | — | Rear Left | W/ ASR; CV Axle Shaft |
| 1993 | Mercedes-Benz | 300CE | — | — | Rear | Standard Duty Replacement; CV Axle Shaft |
| 1993 | Mercedes-Benz | 300D | — | — | Rear Right | CV Axle Shaft |
| 1993 | Mercedes-Benz | 300D | — | — | Rear Left | CV Axle Shaft |
| 1993 | Mercedes-Benz | 300E | — | — | Rear Right | W/ ASR; CV Axle Shaft |
| 1993 | Mercedes-Benz | 300E | — | — | Rear Left | W/ ASR; CV Axle Shaft |
| 1993 | Mercedes-Benz | 300SL | — | — | Rear Right | W/ ASR (traction control); CV Axle Shaft |
| 1993 | Mercedes-Benz | 300SL | — | — | Rear Left | W/ ASR (traction control); CV Axle Shaft |
| 1993 | Mercedes-Benz | 300TE | Base | — | Rear Right | W/ ASR (traction control); CV Axle Shaft |
| 1993 | Mercedes-Benz | 300TE | Base | — | Rear Left | W/ ASR (traction control); CV Axle Shaft |
| 1992 | Mercedes-Benz | 300CE | — | — | Rear Right | W/ ASR; CV Axle Shaft |
| 1992 | Mercedes-Benz | 300CE | — | — | Rear Left | W/ ASR; CV Axle Shaft |
| 1992 | Mercedes-Benz | 300D | — | — | Rear Right | CV Axle Shaft |
| 1992 | Mercedes-Benz | 300D | — | — | Rear Left | CV Axle Shaft |
| 1992 | Mercedes-Benz | 300E | 4Matic | — | Rear Right | W/ ASR (traction control); CV Axle Shaft |
| 1992 | Mercedes-Benz | 300E | 4Matic | — | Rear Left | W/ ASR (traction control); CV Axle Shaft |
| 1992 | Mercedes-Benz | 300SL | — | — | Rear Right | W/ ASR (traction control); CV Axle Shaft |
| 1992 | Mercedes-Benz | 300SL | — | — | Rear Left | W/ ASR (traction control); CV Axle Shaft |
| 1992 | Mercedes-Benz | 300TE | — | — | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 1991 | Mercedes-Benz | 300CE | — | — | Rear Right | W/ ASR; CV Axle Shaft |
| 1991 | Mercedes-Benz | 300CE | — | — | Rear Left | W/ ASR; CV Axle Shaft |
| 1991 | Mercedes-Benz | 300D | — | — | Rear Right | CV Axle Shaft |
| 1991 | Mercedes-Benz | 300D | — | — | Rear Left | CV Axle Shaft |
| 1991 | Mercedes-Benz | 300E | 4Matic | — | Rear Right | W/ ASR (traction control); CV Axle Shaft |
| 1991 | Mercedes-Benz | 300E | 4Matic | — | Rear Left | W/ ASR (traction control); CV Axle Shaft |
| 1991 | Mercedes-Benz | 300SL | — | — | Rear Right | W/ ASR (traction control); CV Axle Shaft |
| 1991 | Mercedes-Benz | 300SL | — | — | Rear Left | W/ ASR (traction control); CV Axle Shaft |
| 1991 | Mercedes-Benz | 300TE | — | — | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 1990 | Mercedes-Benz | 300CE | — | — | Rear | Standard Duty Replacement; CV Axle Shaft |
| 1990 | Mercedes-Benz | 300D | — | — | Rear Right | CV Axle Shaft |
| 1990 | Mercedes-Benz | 300D | — | — | Rear Left | CV Axle Shaft |
| 1990 | Mercedes-Benz | 300E | 4Matic | — | Rear Right | W/ ASR (traction control); CV Axle Shaft |
| 1990 | Mercedes-Benz | 300E | 4Matic | — | Rear Left | W/ ASR (traction control); CV Axle Shaft |
| 1990 | Mercedes-Benz | 300SL | — | — | Rear Right | W/ ASR (traction control); CV Axle Shaft |
| 1990 | Mercedes-Benz | 300SL | — | — | Rear Left | W/ ASR (traction control); CV Axle Shaft |
| 1990 | Mercedes-Benz | 300TE | — | RWD | Rear | Standard Duty Replacement; CV Axle Shaft |
| 1989 | Mercedes-Benz | 300E | — | — | Rear | Standard Duty Replacement; CV Axle Shaft |
| 1988 | Mercedes-Benz | 300E | — | — | Rear | Standard Duty Replacement; CV Axle Shaft |
| 1987 | Mercedes-Benz | 300D | — | — | Rear | From VIN A503880; CV Axle Shaft |
| 1987 | Mercedes-Benz | 300E | — | — | Rear | Standard Duty Replacement; CV Axle Shaft |
