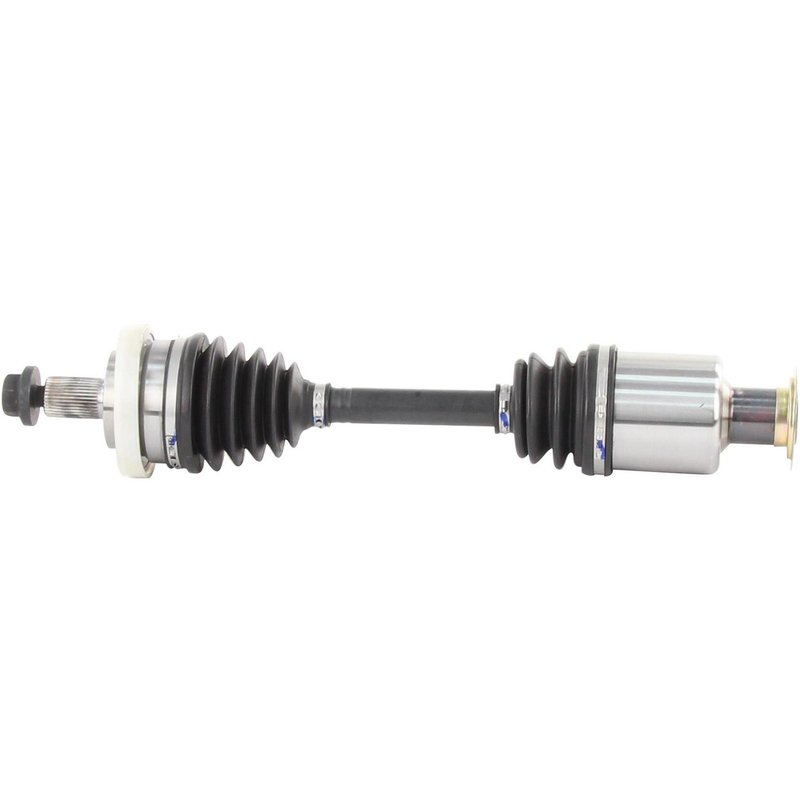

TrakMotive MB-8019 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MB-8019

The TrakMotive CV Axle Shaft MB-8019 is engineered for reliable driveline performance in select Mercedes-Benz models. Designed to meet precise specifications, this new axle shaft ensures proper fit and function for vehicles like the C240, C280, C320, and C350.

• Compatible with Mercedes-Benz C240, C280, C320, and C350 models
• Part number MB-8019 for accurate identification
• Includes magnetic ABS tone ring with 48 teeth
• Neoprene boot material for durability and protection
• Inboard joint type: Female with 34 splines
• Outboard joint type: Audi style spline bolt with 35 splines
• Axle bolt specifications: 27mm hex size, 86mm length, M16*1.5 thread size
• Overall compressed length: 486 mm (19.13 inches)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored for specific vehicle applications. This line emphasizes quality materials and exact fitment, such as the inclusion of a magnetic ABS tone ring and neoprene boots, to maintain vehicle safety systems and protect against environmental damage. The MB-8019 model exemplifies these standards with its detailed specifications and compatibility with multiple Mercedes-Benz models.

Technical Description and Features

The MB-8019 CV Axle Shaft is a new, not remanufactured, component designed to replace worn or damaged axles in Mercedes-Benz C-Class vehicles. It features a magnetic ABS tone ring with 48 teeth, which is included to ensure proper ABS sensor function. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint. The inboard joint uses a female connection style with 34 splines, while the outboard joint employs an Audi style spline bolt with 35 splines, ensuring secure and precise fitment. The axle bolt has a 27mm hex size, 86mm length, and M16*1.5 thread size, though the axle nut is not included. The overall compressed length of 486 mm (19.13 inches) matches factory specifications for the compatible Mercedes-Benz models.

Common Applications and Problem Solving

• Replacement of worn or damaged CV axle shafts on Mercedes-Benz C240, C280, C320, and C350
• Restoring proper ABS sensor function with included magnetic ABS tone ring
• Eliminating vibrations or noises caused by faulty CV joints
• Addressing boot damage to prevent grease leakage and joint contamination
• Ensuring secure axle connection with correct spline and bolt specifications

Installation Notes and Tips

When installing the TrakMotive MB-8019 CV Axle Shaft, verify compatibility with your specific Mercedes-Benz model and year. Use the correct torque specifications for the axle bolt (27mm hex, M16*1.5 thread) to ensure secure fastening. Inspect the ABS sensor and wiring during installation to confirm proper alignment with the magnetic tone ring. Since the axle nut is not included, ensure you have the appropriate nut available for reassembly. Proper lubrication and boot inspection are recommended to maintain joint longevity.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MB-8019 is manufactured to meet OEM standards for fit and function. This new axle shaft undergoes quality control checks to ensure durability and performance. While specific warranty details are not provided here, TrakMotive products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the supplier for exact warranty terms.
