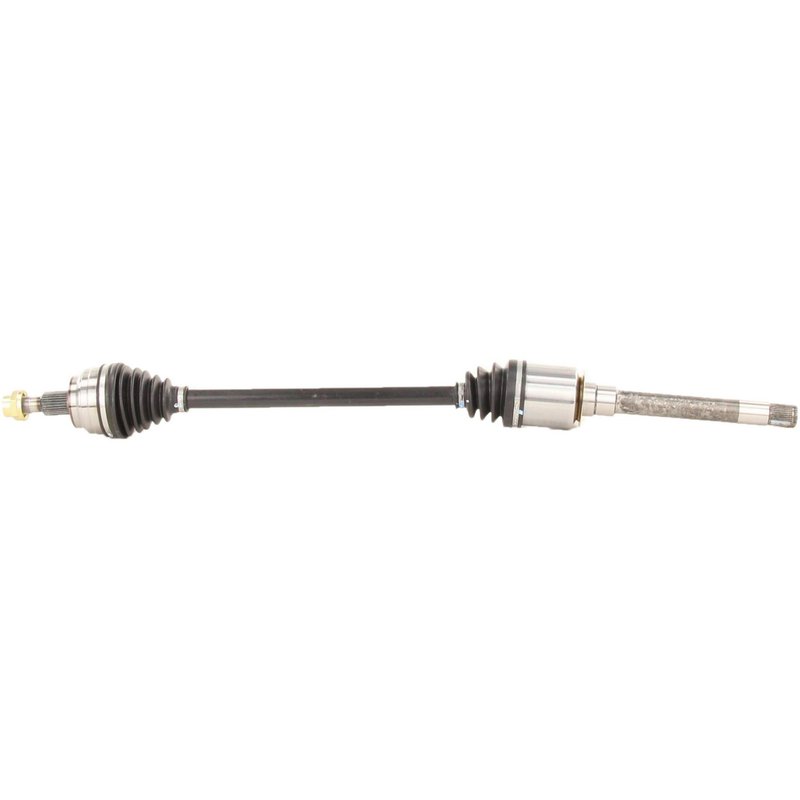

TrakMotive MB-8021 CV Axle Shaft - Front Right
OE Quality 60-Day Returns
TrakMotive
 CV Axle Shaft

TrakMotive MB-8021 CV Axle Shaft - Front Right

Brand TrakMotive MB-8021
Position Front Right
Abs Tone Ring Included No
Axle Nut Head Type Hex
Axle Nut Height (in) 1 1/9
Axle Nut Height (mm) 28
Axle Nut Hex Size (in) 1 3/7
Axle Nut Hex Size (mm) 36
Axle Nut Included Yes
Axle Nut Length (in) 1 5/8
Axle Nut Length (mm) 41.5
Axle Nut Locking Type Self-Lock
Axle Nut Thread Size M24*1.5
Boot Material Neoprene
Inboard Joint Type Male
Inboard Shaft Connection Style Male
New Or Remanufactured New
Number Of Inboard Splines 37
Number Of Outboard Splines 30
Outboard Joint Type Conventional
Outboard Shaft Connection Style Conventional
Overall Compressed Length (in) 39.37
Overall Compressed Length (mm) 1000
Product line CV Axle Shaft
Fits Mercedes-Benz · 39 vehicles

New replacement shaft. Built as a new CV axle shaft for straightforward service replacement.

Neoprene boot material. Helps resist wear while keeping the joint protected.

Axle nut included. Comes with a self-locking hex nut for easier installation.

Cross-references Cardone New 66-9296, Cardone Reman 60-9296 and TrakMotive MB-8021 for the same application. See all 16.

$131.63Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $131.63
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options

Front Right CV Axle Shaft for Mercedes-Benz GL and ML

TrakMotive MB-8021 is a new front right CV axle shaft built for select Mercedes-Benz GL-Class and M-Class applications. It is engineered with a neoprene boot, a self-locking axle nut, and the correct spline counts for direct replacement service on listed vehicles.

Key Features

  • New CV axle shaft for the front right position
  • Inboard joint type: male; outboard joint type: conventional
  • 37 inboard splines and 30 outboard splines
  • Neoprene boot material for drivetrain protection
  • Axle nut included with M24 x 1.5 thread, 36 mm hex size
  • No ABS tone ring included
  • Overall compressed length: 39.37 in. (1000 mm)
  • TrakMotive part number MB-8021

Product Details

TrakMotive MB-8021 is part of the CV Axle Shaft line and is built for front right driveline replacement on select Mercedes-Benz GL350, GL450, GL550, ML320, ML350, ML450, ML500, ML550, and ML63 AMG models. This axle is specified for applications listed without an ABS tone ring and uses a male inboard connection with a conventional outboard joint for the correct OE-style fit on the confirmed vehicles. The MB-8021 also cross-references Cardone New 66-9296 for the same application.

What This Axle Shaft Helps Address

  • Clicking or popping during turns caused by worn CV joints
  • Vibration from a worn or damaged front axle assembly
  • Torn boot conditions that can lead to grease loss and joint wear
  • Noise from excessive play in the front right driveline
  • Replacement needs after axle seal or joint failure

Installation Notes and Fitment

Fits 2010-2012 Mercedes-Benz GL350, front right. Fits 2011-2012 Mercedes-Benz GL450, front right. Fits 2011-2012 Mercedes-Benz GL550, front right. Fits 2009-2011 Mercedes-Benz ML350, front right. Fits 2006-2007 Mercedes-Benz ML350, front right. Fits 2010-2011 Mercedes-Benz ML450, front right. Fits 2010-2011 Mercedes-Benz ML550, front right. Fits 2009-2011 Mercedes-Benz ML63 AMG, front right. Fits 2007 Mercedes-Benz ML63 AMG, front right. Fits 2009-2010 Mercedes-Benz GL450, front right, w/o Off Road Package. Fits 2007 Mercedes-Benz GL450, front right, w/o Off Road Package. Fits 2009-2010 Mercedes-Benz GL550, front right. Fits 2009 Mercedes-Benz GL320, front right. Fits 2007 Mercedes-Benz GL320, front right. Fits 2009 Mercedes-Benz ML320, front right. Fits 2007 Mercedes-Benz ML320, front right. Fits 2009 Mercedes-Benz ML500, front right. Fits 2006-2007 Mercedes-Benz ML500, front right. Fits 2008 Mercedes-Benz GL320, front right, From 5/6/08. Fits 2008 Mercedes-Benz GL450, front right, w/o Off Road Package; From 5/6/08. Fits 2008 Mercedes-Benz GL550, front right, From 5/6/08. Fits 2008 Mercedes-Benz ML320, front right, From 5/5/08. Fits 2008 Mercedes-Benz ML350, front right, From 5/5/08. Fits 2008 Mercedes-Benz ML500, front right, From 5/5/08. Fits 2008 Mercedes-Benz ML63 AMG, front right, From 5/5/08.

Verify axle nut thread size, spline count, and vehicle build date before installation, especially on 2008 models with production-date notes and GL450 applications without the Off Road Package. TrakMotive notes that ABS axles fit non-ABS applications unless otherwise noted.

Quality Assurance

TrakMotive manufactures this CV axle shaft as a new replacement part from an ISO 9001:1007 and TS 16949:2009 certified company. MB-8021 is backed by a limited lifetime warranty.

Related reading

This part fits 39 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypePositionNotes
2012Mercedes-BenzGL350AWDFront RightCV Axle Shaft
2012Mercedes-BenzGL450AWDFront RightCV Axle Shaft
2012Mercedes-BenzGL550AWDFront RightCV Axle Shaft
2011Mercedes-BenzGL350AWDFront RightCV Axle Shaft
2011Mercedes-BenzGL450AWDFront RightCV Axle Shaft
2011Mercedes-BenzGL550AWDFront RightCV Axle Shaft
2011Mercedes-BenzML350AWDFront RightCV Axle Shaft
2011Mercedes-BenzML450AWDFront RightCV Axle Shaft
2011Mercedes-BenzML550AWDFront RightCV Axle Shaft
2011Mercedes-BenzML63 AMGAWDFront RightCV Axle Shaft
2010Mercedes-BenzGL350AWDFront RightCV Axle Shaft
2010Mercedes-BenzGL450AWDFront Rightw/o Off Road Package; CV Axle Shaft
2010Mercedes-BenzGL550AWDFront Rightw/o Off Road Package; CV Axle Shaft
2010Mercedes-BenzML350AWDFront RightCV Axle Shaft
2010Mercedes-BenzML450AWDFront RightCV Axle Shaft
2010Mercedes-BenzML550AWDFront RightCV Axle Shaft
2010Mercedes-BenzML63 AMGAWDFront RightCV Axle Shaft
2009Mercedes-BenzGL320AWDFront RightCV Axle Shaft
2009Mercedes-BenzGL450AWDFront Rightw/o Off Road Package; CV Axle Shaft
2009Mercedes-BenzGL550AWDFront Rightw/o Off Road Package; CV Axle Shaft
2009Mercedes-BenzML320AWDFront RightCV Axle Shaft
2009Mercedes-BenzML350AWDFront RightCV Axle Shaft
2009Mercedes-BenzML500AWDFront RightCV Axle Shaft
2009Mercedes-BenzML63 AMGAWDFront RightCV Axle Shaft
2008Mercedes-BenzGL320AWDFront RightFrom 5/6/08; CV Axle Shaft
2008Mercedes-BenzGL450AWDFront Rightw/o Off Road Package; From 5/6/08; CV Axle Shaft
2008Mercedes-BenzGL550AWDFront RightFrom 5/6/08; CV Axle Shaft
2008Mercedes-BenzML320AWDFront RightFrom 5/5/08; CV Axle Shaft
2008Mercedes-BenzML350AWDFront RightFrom 5/5/08; CV Axle Shaft
2008Mercedes-BenzML500AWDFront RightFrom 5/5/08; CV Axle Shaft
2008Mercedes-BenzML63 AMGAWDFront RightFrom 5/5/08; CV Axle Shaft
2007Mercedes-BenzGL320AWDFront RightCV Axle Shaft
2007Mercedes-BenzGL450AWDFront Rightw/o Off Road Package; CV Axle Shaft
2007Mercedes-BenzML320AWDFront RightCV Axle Shaft
2007Mercedes-BenzML350AWDFront RightCV Axle Shaft
2007Mercedes-BenzML500AWDFront RightCV Axle Shaft
2007Mercedes-BenzML63 AMGAWDFront RightCV Axle Shaft
2006Mercedes-BenzML350AWDFront RightCV Axle Shaft
2006Mercedes-BenzML500AWDFront RightCV Axle Shaft
Directly replaces or cross-references 16 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Cardone New — 66-9296Cardone Reman — 60-9296TrakMotive — MB-802180-7211767762290214073301916433019011643302401164330190180ME-8-8507ME-2410ME10517NCV48001NCV48052PR48001
