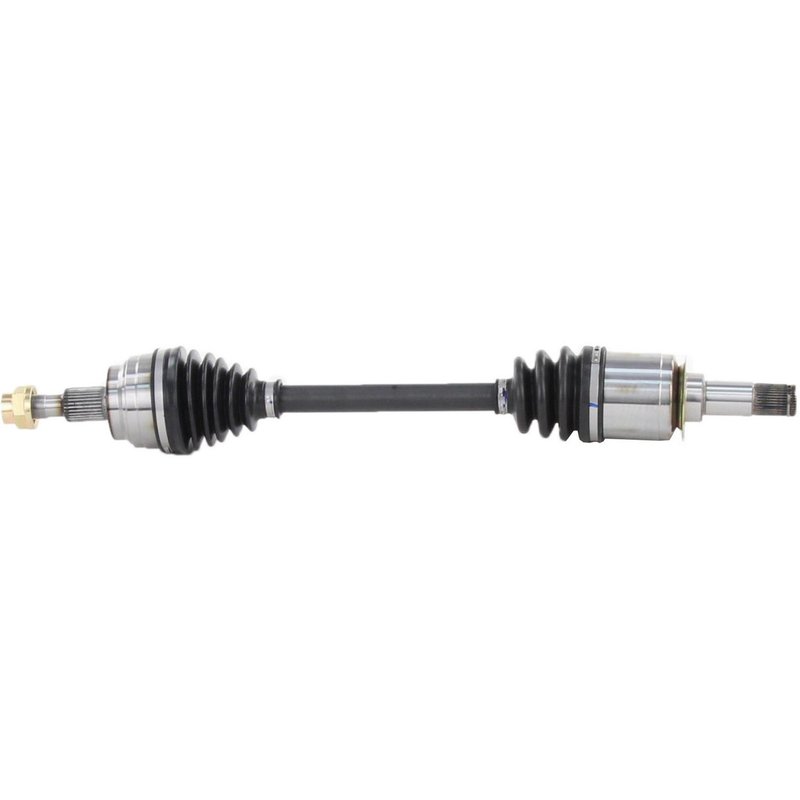

TrakMotive MB-8022 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MB-8022

The TrakMotive CV Axle Shaft MB-8022 is engineered for reliable driveline performance in select Mercedes-Benz models. Designed to meet OEM specifications, this new CV axle shaft ensures proper fit and function for vehicles such as the GL320, GL350, GL450, GL550, ML63 AMG, ML320, ML350, ML450, ML500, and ML550.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: MB-8022
• Compatible with multiple Mercedes-Benz GL and ML series models
• Neoprene boot material for durability
• Includes self-locking hex axle nut (M24*1.5 thread size)
• Overall compressed length: 26.14 inches (664 mm)
• Inboard joint type: Male with 37 splines
• Outboard joint type: Conventional with 30 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to restore driveline integrity. This line emphasizes precise fitment and durability, featuring components such as neoprene boots and self-locking axle nuts to maintain secure connections and protect against contaminants. The MB-8022 model exemplifies these qualities, providing a direct replacement for specific Mercedes-Benz GL and ML series vehicles.

Technical Specifications and Features

This CV axle shaft includes a neoprene boot that offers resistance to wear and environmental factors, extending the life of the joint. The axle nut is a self-locking type with a hex head, measuring 1 3/7 inches (36 mm) across flats and 1 5/8 inches (41.5 mm) in length, ensuring a secure fit. The shaft features a male inboard joint with 37 splines and a conventional outboard joint with 30 splines, designed to match the original equipment for smooth power transfer. The overall compressed length of 26.14 inches (664 mm) aligns with factory specifications for proper installation and operation.

Applications and Problem Resolution

This CV axle shaft is compatible with the following Mercedes-Benz models:

• GL320, GL350, GL450, GL550
• ML63 AMG, ML320, ML350, ML450, ML500, ML550

It is intended to address common driveline issues such as:

• Vibration or noise during acceleration or turning
• Worn or torn CV boots causing grease leakage
• Axle shaft joint wear leading to drivetrain binding
• Loose or damaged axle nuts affecting wheel stability
• Failure of original axle components due to age or damage

Installation Notes and Tips

• Verify vehicle compatibility with the MB-8022 part number before installation
• Ensure the axle nut is tightened to manufacturer torque specifications to maintain the self-locking feature
• Inspect surrounding suspension and driveline components for wear during replacement
• Use appropriate tools for hex axle nut removal and installation (36 mm hex size)
• Check for proper boot seating to prevent contamination and premature joint failure

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MB-8022 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a self-locking axle nut to enhance safety and reliability. While specific warranty details are not provided here, TrakMotive products typically come with manufacturer-backed quality assurance to support long-term performance in Mercedes-Benz GL and ML series vehicles.
