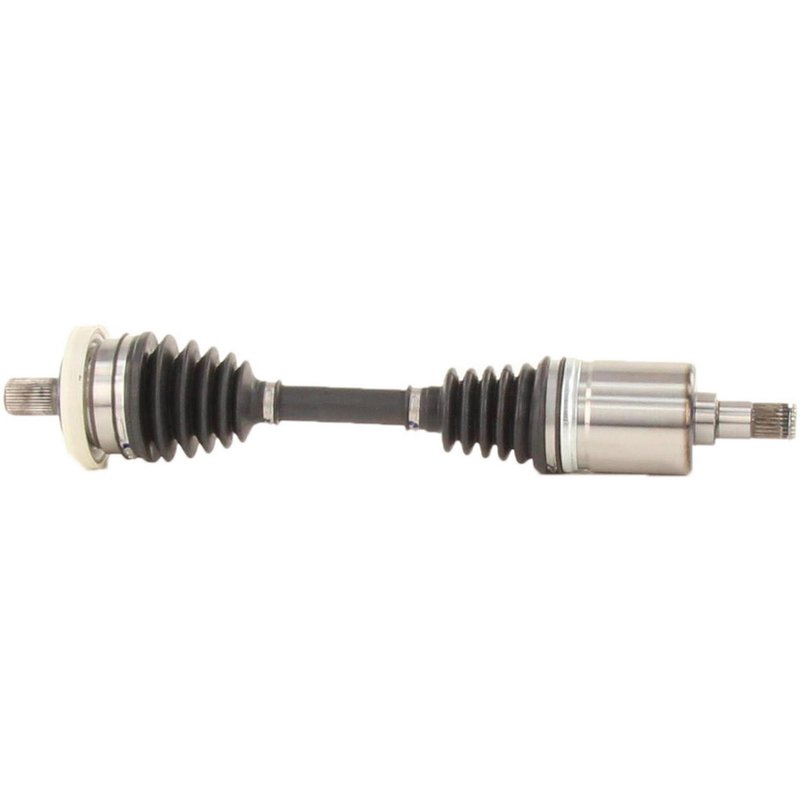

TrakMotive MB-8028 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft MB-8028

The TrakMotive CV Axle Shaft MB-8028 is engineered for reliable driveline performance in select Mercedes-Benz models. Designed to meet OEM specifications, this new axle shaft ensures precise fitment and durability for vehicles such as the E280, E300, E320, E350, E500, and E550.

• Compatible with Mercedes-Benz E-Class models including E280, E300, E320, E350, E500, and E550
• New, not remanufactured, for consistent quality
• Magnetic ABS tone ring with 48 teeth included for accurate wheel speed sensing
• Neoprene boot material for enhanced protection against contaminants
• Inboard joint features a male connection with 24 splines
• Outboard joint uses Audi style spline bolt with 35 splines
• Axle bolt specifications: 27 mm hex size, 86 mm length, M16*1.5 thread size
• Overall compressed length of 519 mm (20.43 inches)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that align with vehicle manufacturer standards. This CV Axle Shaft MB-8028 is part of that line, offering a balance of durability and fitment accuracy. The inclusion of a magnetic ABS tone ring and neoprene boot material reflects the line’s attention to both performance and longevity in demanding driving conditions.

Technical Description and Features

This CV axle shaft features a magnetic ABS tone ring with 48 teeth, which is included to ensure proper ABS sensor function. The neoprene boot material provides resistance to wear and environmental damage, helping to maintain joint integrity. The inboard joint is a male type with 24 splines, while the outboard joint uses an Audi style spline bolt with 35 splines, ensuring secure and precise connections. The axle bolt has a 27 mm hex size, 86 mm length, and M16*1.5 thread size, designed for proper installation torque and fit. The overall compressed length of 519 mm (20.43 inches) matches OEM specifications for the compatible Mercedes-Benz models.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Mercedes-Benz E280, E300, E320, E350, E500, and E550
• Resolves issues related to clicking or popping noises during turns
• Addresses vibration or shuddering caused by faulty axle components
• Restores proper ABS sensor function with included magnetic tone ring
• Prevents grease leakage and joint contamination with durable neoprene boot

Installation Notes and Tips

• Verify vehicle compatibility with Mercedes-Benz E-Class models listed before installation
• Use proper torque specifications for axle bolts: 27 mm hex size, M16*1.5 thread
• Inspect surrounding components such as wheel bearings and suspension for wear during replacement
• Ensure the magnetic ABS tone ring is properly aligned for accurate sensor readings
• Handle the neoprene boot carefully to avoid damage during installation

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MB-8028 is a new part manufactured to meet or exceed OEM standards. It includes a magnetic ABS tone ring and durable neoprene boot to maintain long-term performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and fitment for Mercedes-Benz E-Class vehicles.
