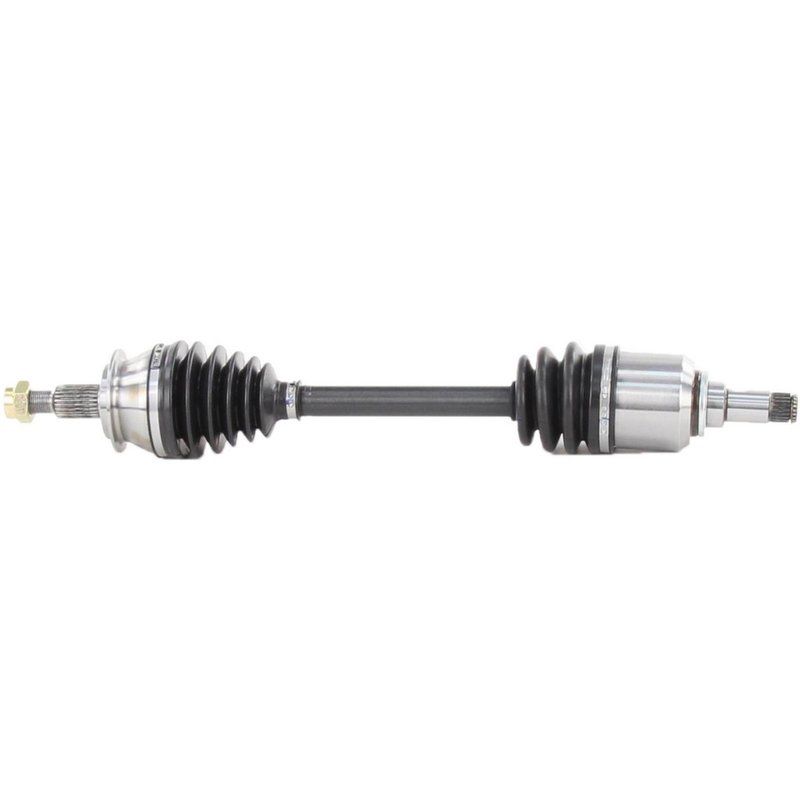

TrakMotive MB-8031 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MB-8031 for Mercedes-Benz B200

The TrakMotive CV Axle Shaft MB-8031 is engineered specifically for the Mercedes-Benz B200, providing reliable driveline performance. Designed as a new replacement part, this axle shaft ensures proper fit and function for your vehicle's front-wheel drive system.

• Compatible with Mercedes-Benz B200 models
• New CV Axle Shaft from TrakMotive's CV Axle Shaft product line
• Includes axle nut with nylon lock for secure installation
• Neoprene boot material for durability and protection
• Overall compressed length of 23.82 inches (605 mm)
• Hex head axle nut with M20*1.5 thread size
• Male inboard joint with 22 splines and conventional outboard joint with 25 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored to specific vehicle applications. This line emphasizes quality materials and accurate fitment, such as the neoprene boot for enhanced durability and the inclusion of a nylon lock axle nut to maintain secure connections. The MB-8031 model exemplifies these standards, designed to meet the exact specifications required by the Mercedes-Benz B200.

Technical Specifications and Features

The MB-8031 CV Axle Shaft features a male-type inboard joint with 22 splines and a conventional outboard joint with 25 splines, ensuring compatibility with the B200's drivetrain. The axle nut included is a hex head type measuring 1 1/3 inches (34 mm) across flats, with a height of 17 mm (2/3 inch) and a length of 39.3 mm (1 5/9 inch). It uses an M20*1.5 thread size and incorporates a nylon locking mechanism to prevent loosening during operation. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The overall compressed length of the axle shaft is 23.82 inches (605 mm), matching the factory specifications for proper installation and function.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Mercedes-Benz B200
• Elimination of clicking or popping noises during turns caused by joint wear
• Resolution of vibration issues related to axle imbalance or joint failure
• Repair of torn or leaking CV boots to prevent grease loss and contamination
• Restoration of driveline integrity after axle shaft bending or breakage

Installation Notes and Tips

When installing the TrakMotive MB-8031 CV Axle Shaft, ensure the axle nut is torqued to the manufacturer’s specifications to maintain the nylon lock’s effectiveness. Verify the correct orientation of the male inboard joint and conventional outboard joint for proper fitment. Inspect the neoprene boot for any damage during installation and confirm that the splines engage fully to avoid premature wear. It is recommended to replace the axle nut included with the shaft to ensure secure fastening.

Quality Assurance and Warranty

This CV Axle Shaft is a new, direct replacement part manufactured to meet or exceed OEM standards for the Mercedes-Benz B200. TrakMotive provides quality assurance through rigorous testing and material selection. While specific warranty details are not provided here, new parts typically carry a limited warranty against defects in materials and workmanship. Always consult the product documentation or supplier for exact warranty terms.
