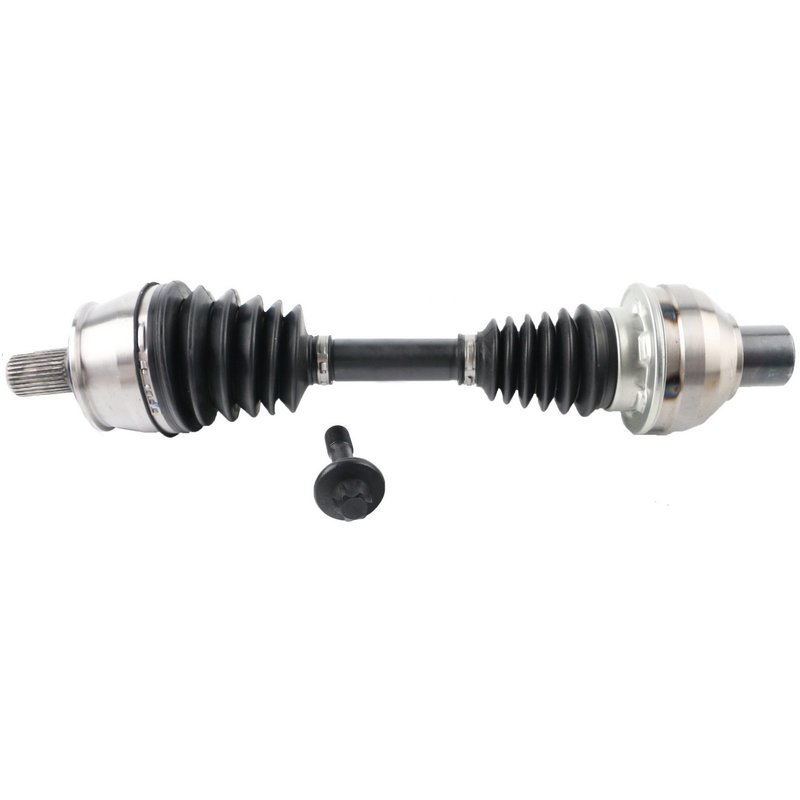

TrakMotive MB-8050 CV Axle Shaft - Front Right
OE Quality 60-Day Returns
TrakMotive
 CV Axle Shaft

TrakMotive MB-8050 CV Axle Shaft - Front Right

Brand TrakMotive MB-8050
Position Front Right
Abs Tone Ring Included No
Axle Bolt Hex Size (mm) 21.6
Axle Bolt Length (mm) 79.6
Axle Bolt Thread Size M16*1.5
Axle Nut Included No
Boot Material Neoprene
Inboard Joint Type Male
Inboard Shaft Connection Style Spline
New Or Remanufactured New
Number Of Bolt Holes 1
Number Of Inboard Splines 27
Number Of Outboard Shaft Bolts 1
Number Of Outboard Splines 30
Outboard Joint Type Audi Style Spline Bolt
Outboard Shaft Connection Style Spline
Overall Compressed Length (in) 19.84
Overall Compressed Length (mm) 504
Product line CV Axle Shaft
Fits Mercedes-Benz · 30 vehicles

New replacement shaft. Built as a fresh CV axle shaft for straightforward service replacement.

Neoprene boot. Durable boot material helps protect the joint from wear and contamination.

Spline connections. Male inboard and spline outboard interfaces provide secure engagement.

Cross-references TrakMotive MB-8050, 229050 and 2463301901 for the same application. See all 8.

$139.43Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $139.43
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options

Mercedes-Benz Front Right CV Axle Shaft

TrakMotive MB-8050 is a new front right CV axle shaft for select Mercedes-Benz applications. It is built for direct replacement use on listed GLA250, CLA250, CLA45 AMG, GLA45 AMG, B250, and B-Class fitments, with OE-style spline connections and application-specific joint design.

Key Features

  • New CV axle shaft for front right placement
  • Neoprene boot material for flexible joint protection
  • Inboard joint type: male with spline connection
  • Outboard joint type: Audi-style spline bolt with spline connection
  • 27 inboard splines and 30 outboard splines
  • Overall compressed length: 19.84 in. (504 mm)
  • No ABS tone ring included
  • No axle nut included
  • Axle bolt thread size: M16 x 1.5
  • Axle bolt hex size: 21.6 mm
  • Axle bolt length: 79.6 mm

Detailed Description

TrakMotive CV Axle Shaft MB-8050 is a direct-fit driveline replacement for select Mercedes-Benz front right applications. This CV axle shaft is engineered as a new unit with the correct spline counts, compressed length, and joint configuration for listed Mercedes-Benz GLA250, CLA250, CLA45 AMG, GLA45 AMG, and B250 models. TrakMotive’s CV axle shaft line focuses on OE-style fit and function, and this part is backed by the brand’s limited lifetime warranty. TrakMotive MB-8050 also reflects the company’s ISO 9001:1007 and TS 16949:2009 certified manufacturing standards.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

  • Clicking or popping during turns from a worn front right CV joint
  • Vibration or shudder during acceleration caused by axle wear
  • Grease leakage from a damaged axle boot
  • Noise from excessive play in the driveline shaft
  • Loss of smooth power transfer to the front wheel

Installation Notes and Fitment

Compatible With 2018-2020 Mercedes-Benz GLA250, front right; 2017-2019 Mercedes-Benz B250, front right; 2018-2019 Mercedes-Benz CLA250, front right; 2018-2019 Mercedes-Benz CLA45 AMG, front right; 2018-2019 Mercedes-Benz GLA45 AMG, front right; 2014-2017 Mercedes-Benz CLA250, front right; 2014-2017 Mercedes-Benz CLA45 AMG, front right; 2015-2017 Mercedes-Benz GLA250, front right; 2015-2017 Mercedes-Benz GLA45 AMG, front right; 2013-2016 Mercedes-Benz B250, front right.

Verify spline count, axle bolt specification, and vehicle configuration before installation. ABS axles fit non-ABS applications unless otherwise noted. Professional installation and final torque verification are recommended for Mercedes-Benz driveline service.

Quality Assurance

TrakMotive MB-8050 is manufactured by an ISO 9001:1007 and TS 16949:2009 certified company and is covered by a limited lifetime warranty.

Related reading

This part fits 30 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypePositionNotes
2020Mercedes-BenzGLA250—Front RightStandard Duty Replacement; CV Axle Shaft
2019Mercedes-BenzB250—Front RightOuter; CV Axle Shaft
2019Mercedes-BenzCLA250—Front RightStandard Duty Replacement; CV Axle Shaft
2019Mercedes-BenzCLA45 AMG—Front RightStandard Duty Replacement; CV Axle Shaft
2019Mercedes-BenzGLA250—Front RightStandard Duty Replacement; CV Axle Shaft
2019Mercedes-BenzGLA45 AMG—Front RightStandard Duty Replacement; CV Axle Shaft
2018Mercedes-BenzB250—Front RightOuter; CV Axle Shaft
2018Mercedes-BenzCLA250—Front RightStandard Duty Replacement; CV Axle Shaft
2018Mercedes-BenzCLA45 AMG—Front RightStandard Duty Replacement; CV Axle Shaft
2018Mercedes-BenzGLA250—Front RightStandard Duty Replacement; CV Axle Shaft
2018Mercedes-BenzGLA45 AMG—Front RightStandard Duty Replacement; CV Axle Shaft
2017Mercedes-BenzB250—Front RightOuter; CV Axle Shaft
2017Mercedes-BenzCLA250—Front Right117 Type; Outer; CV Axle Shaft
2017Mercedes-BenzCLA45 AMG—Front Right117 Type; Outer; CV Axle Shaft
2017Mercedes-BenzGLA250AWDFront Right156 Type; Outer; CV Axle Shaft
2017Mercedes-BenzGLA45 AMGAWDFront Right156 Type; Outer; CV Axle Shaft
2016Mercedes-BenzB250—Front Right246 Type; Outer; CV Axle Shaft
2016Mercedes-BenzCLA250—Front Right117 Type; Outer; CV Axle Shaft
2016Mercedes-BenzCLA45 AMG—Front Right117 Type; Outer; CV Axle Shaft
2016Mercedes-BenzGLA250AWDFront Right156 Type; Outer; CV Axle Shaft
2016Mercedes-BenzGLA45 AMGAWDFront Right156 Type; Outer; CV Axle Shaft
2015Mercedes-BenzB250—Front Right246 Type; Outer; CV Axle Shaft
2015Mercedes-BenzCLA250—Front Right117 Type; Outer; CV Axle Shaft
2015Mercedes-BenzCLA45 AMG—Front Right117 Type; Outer; CV Axle Shaft
2015Mercedes-BenzGLA250AWDFront Right156 Type; Outer; CV Axle Shaft
2015Mercedes-BenzGLA45 AMGAWDFront Right156 Type; Outer; CV Axle Shaft
2014Mercedes-BenzB250—Front Right246 Type; Outer; CV Axle Shaft
2014Mercedes-BenzCLA250—Front Right117 Type; Outer; CV Axle Shaft
2014Mercedes-BenzCLA45 AMG—Front Right117 Type; Outer; CV Axle Shaft
2013Mercedes-BenzB250—Front Right246 Type; Outer; CV Axle Shaft
Directly replaces or cross-references 8 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — MB-805022905024633019012463309300NCV48064NCV48077PR48064PR48087
