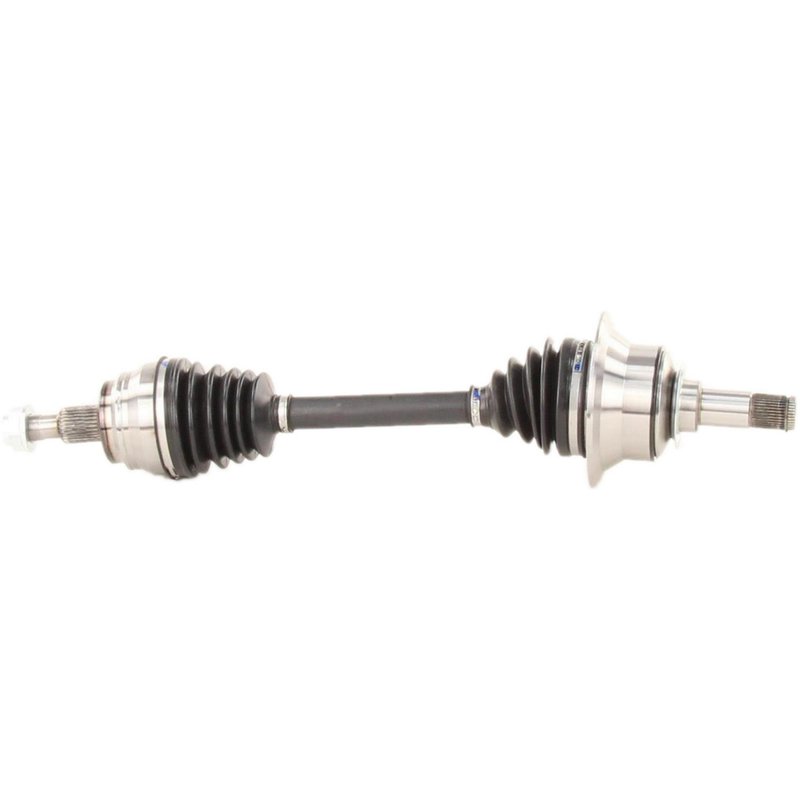

TrakMotive MB-8061 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MB-8061

The TrakMotive CV Axle Shaft MB-8061 is designed specifically for select Mercedes-Benz models including GL350, GL450, GL550, ML250, ML350, ML400, and ML550. This new CV axle shaft ensures reliable driveline performance with precise fitment and durable construction.

• Compatible with Mercedes-Benz GL350, GL450, GL550, ML250, ML350, ML400, ML550
• Part number MB-8061 for exact replacement
• Includes axle nut with stake locking type for secure installation
• Neoprene boot material for enhanced durability and protection
• Inboard joint type: Male with 37 splines; Outboard joint type: Conventional with 30 splines
• Overall compressed length of 26.5 inches (673 mm)
• Hex axle nut head type with M24*1.5 thread size

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft line focuses on delivering precise driveline components engineered for specific vehicle applications. This product line emphasizes quality materials and exact fitment to maintain factory driveline performance. The MB-8061 model is part of this line, offering a new axle shaft designed to meet the specifications required by Mercedes-Benz GL and ML series vehicles.

Technical Specifications and Features

The MB-8061 CV axle shaft features a neoprene boot that provides resistance to wear and environmental damage, extending the life of the joint. The inboard joint is a male type with a spline connection style, featuring 37 splines for secure engagement. The outboard joint is conventional with 30 splines, also spline-connected for reliable power transfer. The included axle nut has a hex head type measuring 1.4 inches (35.6 mm) across flats, with a height of 0.91 inches (23 mm) and a length of 1.48 inches (37.53 mm). The stake locking type axle nut ensures the nut remains securely fastened during operation. The overall compressed length of the axle shaft is 26.5 inches (673 mm), matching OEM specifications for proper fitment.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Mercedes-Benz GL and ML series
• Resolves issues related to axle vibration or clicking noises during turns
• Addresses grease leakage or torn CV boots causing joint contamination
• Fixes driveline imbalance or axle shaft failure due to wear
• Restores proper power transfer from transmission to wheels

Installation Notes and Tips

Installation of the MB-8061 CV axle shaft requires proper torque specifications for the axle nut, which features a stake locking type to prevent loosening. Ensure the neoprene boot is properly seated and free of damage before final assembly. Verify spline engagement on both inboard and outboard joints to avoid driveline issues. This part is designed for direct replacement on compatible Mercedes-Benz GL and ML models, so no modifications should be necessary.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MB-8061 is a new, not remanufactured, component manufactured to meet or exceed OEM standards. It includes the axle nut for a complete installation. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure durability and fitment accuracy for Mercedes-Benz vehicles.
