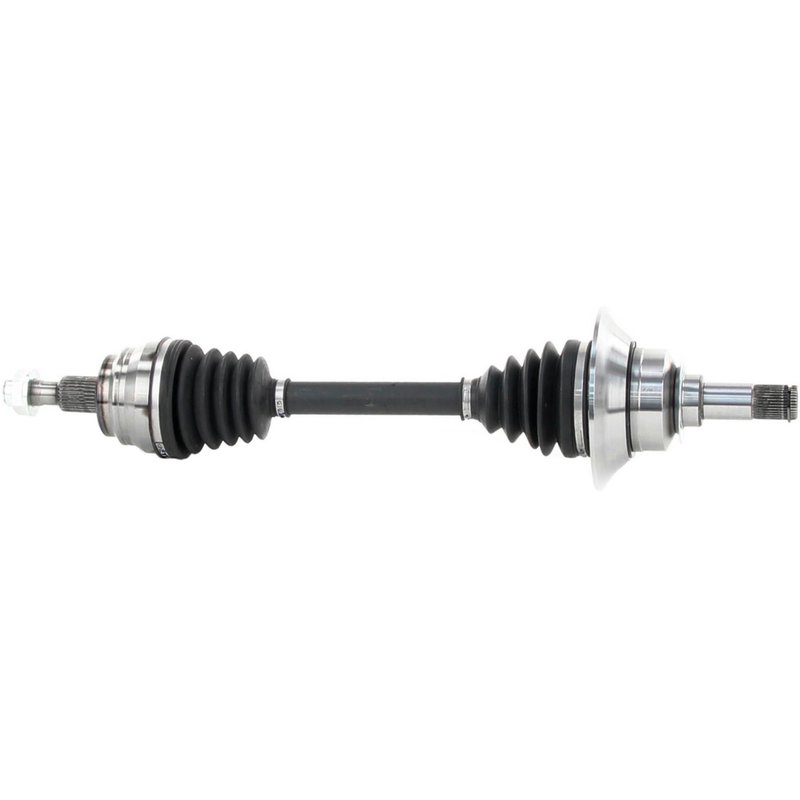

TrakMotive MB-8063 CV Axle Shaft - Front Left
OE Quality 60-Day Returns
TrakMotive
 CV Axle Shaft

TrakMotive MB-8063 CV Axle Shaft - Front Left

Brand TrakMotive MB-8063
Position Front Left
Abs Tone Ring Included No
Axle Nut Head Type Hex
Axle Nut Height (in) 0.91
Axle Nut Height (mm) 23
Axle Nut Hex Size (in) 1.4
Axle Nut Hex Size (mm) 35.6
Axle Nut Included Yes
Axle Nut Length (in) 1.48
Axle Nut Length (mm) 37.53
Axle Nut Locking Type Stake
Axle Nut Thread Size M24*1.5
Boot Material Neoprene
Inboard Joint Type Male
Inboard Shaft Connection Style Spline
New Or Remanufactured New
Number Of Inboard Splines 37
Number Of Outboard Splines 30
Outboard Joint Type Conventional
Outboard Shaft Connection Style Spline
Overall Compressed Length (in) 26.5
Overall Compressed Length (mm) 673
Product line CV Axle Shaft
Fits Mercedes-Benz · 47 vehicles

New axle shaft. Built with neoprene boots and spline connections for dependable driveline operation.

Axle nut included. Stake-lock design with a hex head for secure installation.

Certified company. Made by an ISO 9001 and TS 16949 certified manufacturer.

Cross-references TrakMotive MB-8063, 1663301400 and 1663301601 for the same application. See all 4.

$152.55Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $152.55
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options

Mercedes-Benz Front Left CV Axle Shaft

Restore driveline performance with the TrakMotive MB-8063 CV axle shaft for select Mercedes-Benz GLE, GLS, ML, and GL models. This new front left axle is built with application-specific spline counts, a neoprene boot, and an included axle nut for a direct replacement on listed vehicles.

Key Features

  • Brand: TrakMotive CV Axle Shaft
  • Part number: MB-8063
  • Front left position for listed Mercedes-Benz applications
  • New axle shaft with male inboard joint and conventional outboard joint
  • Inboard spline count: 37; outboard spline count: 30
  • Neoprene boot material for durable sealing
  • Axle nut included; hex head, stake-lock style, M24 x 1.5 thread
  • Overall compressed length: 26.5 in. (673 mm)
  • ABS tone ring not included
  • Limited lifetime warranty

Product Details

The TrakMotive MB-8063 is a front left CV axle shaft engineered for select Mercedes-Benz 166- and 292-type platforms, including GLE400, GLE350, GLE550e, GLS450, GLS550, ML350, ML550, and related models listed below. It is a new replacement axle designed around the specified spline counts, compressed length, and joint configuration for accurate fitment on the intended applications. TrakMotive manufactures this axle as an ISO 9001:1007 and TS 16949:2009 certified company, and the product line is positioned as a direct driveline replacement for Mercedes-Benz CV axle service.

This part cross-references Mercedes-Benz OE numbers 1663301400 and 1663301601 for the same application.

What This CV Axle Shaft Helps Address

  • Clicking or popping noises during turns from a worn CV joint
  • Vibration or shudder from a damaged axle shaft
  • Torn boot conditions that can lead to grease loss and joint wear
  • Front driveline noise caused by spline or joint wear
  • Axle replacement needs after inspection failure on the front left side

Installation Notes and Fitment

Fits 2017-2019 Mercedes-Benz GLE400, front left; 166 Type; VIN D (4th digit).

Fits 2017-2019 Mercedes-Benz GLE43 AMG, front left; 292 Type; VIN E (4th digit).

Fits 2017-2019 Mercedes-Benz GLE43 AMG, front left; 166 Type; VIN D (4th digit).

Fits 2017-2019 Mercedes-Benz GLS450, front left; 166 Type; w/o Off Road Package.

Fits 2017-2019 Mercedes-Benz GLS550, front left; 166 Type; w/o Off Road Package.

Fits 2016-2018 Mercedes-Benz GLE350, front left; 166 Type; VIN D (4th digit).

Fits 2018 Mercedes-Benz GLE550, front left; 166 Type; VIN D (4th digit).

Fits 2016-2018 Mercedes-Benz GLE550e, front left; 166 Type; VIN D (4th digit).

Fits 2017 Mercedes-Benz GLS350d, front left; 166 Type.

Fits 2016 Mercedes-Benz GLE300d, front left; 166 Type; VIN D (4th digit).

Fits 2016 Mercedes-Benz GLE350d, front left; 166 Type; VIN D (4th digit).

Fits 2016 Mercedes-Benz GLE350d, front left; 292 Type; VIN E (4th digit).

Fits 2016 Mercedes-Benz GLE400, front left; 166 Type; w/o Off Road Package; VIN D (4th digit).

Fits 2016 Mercedes-Benz GLE450 AMG, front left; 292 Type; VIN E (4th digit).

Fits 2014-2015 Mercedes-Benz GL63 AMG, front left; 166 Type; 158mm inertia ring; thru 9/1/2014.

Fits 2015 Mercedes-Benz ML250, front left; 166 Type; from 08/04/2014.

Fits 2015 Mercedes-Benz ML350, front left; 166 Type; w/o Off Road Package; from 08/04/2014.

Fits 2015 Mercedes-Benz ML400, front left; 166 Type; w/o Off Road Package; from 08/04/2014.

Fits 2014 Mercedes-Benz GL450, front left; w/ Off Road Package; 166 Type; 158mm inertia ring; thru 9/1/2014.

Fits 2014 Mercedes-Benz GL550, front left; w/ Off Road Package; 166 Type; 158mm inertia ring; thru 9/1/2014.

Fits 2014 Mercedes-Benz ML350, front left; w/ Off Road Package; 166 Type; 158mm inertia ring; thru 9/1/2014.

Fits 2014 Mercedes-Benz ML550, front left; w/ Off Road Package; 166 Type; 158mm inertia ring; thru 9/1/2014.

Fits 2014 Mercedes-Benz ML63 AMG, front left; 166 Type; 158mm inertia ring; thru 9/1/2014.

Fits 2013 Mercedes-Benz GL450, front left; w/ Off Road Package; 166 Type; 158mm inertia ring.

Fits 2013 Mercedes-Benz GL550, front left; w/ Off Road Package; 166 Type; 158mm inertia ring.

Fits 2013 Mercedes-Benz GL63 AMG, front left; 166 Type; 158mm inertia ring.

Fits 2012-2013 Mercedes-Benz ML350, front left; w/ Off Road Package; 166 Type; 158mm inertia ring.

Fits 2012-2013 Mercedes-Benz ML550, front left; w/ Off Road Package; 166 Type; 158mm inertia ring.

Fits 2013 Mercedes-Benz ML63 AMG, front left; 166 Type; 158mm inertia ring.

Fits 2012 Mercedes-Benz ML63 AMG, front left; 166 Type; 158mm inertia ring; from 12/02/2012.

Quality Assurance

TrakMotive backs this CV axle shaft with a limited lifetime warranty. The part is produced by an ISO 9001:1007 and TS 16949:2009 certified company, supporting consistent manufacturing control for Mercedes-Benz driveline replacement service.

Related reading

This part fits 47 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypeFuel TypePositionNotes
2019Mercedes-BenzGLE400——Front Left166 Type; VIN D (4th digit); CV Axle Shaft
2019Mercedes-BenzGLE43 AMG——Front Left292 Type; VIN E (4th digit); CV Axle Shaft
2019Mercedes-BenzGLE43 AMG——Front Left166 Type; VIN D (4th digit); CV Axle Shaft
2019Mercedes-BenzGLS450——Front Left166 Type; w/o Off Road Package; CV Axle Shaft
2019Mercedes-BenzGLS550——Front Left166 Type; w/o Off Road Package; CV Axle Shaft
2018Mercedes-BenzGLE350AWD—Front Left166 Type; VIN D (4th digit); CV Axle Shaft
2018Mercedes-BenzGLE400——Front Left166 Type; VIN D (4th digit); CV Axle Shaft
2018Mercedes-BenzGLE43 AMG——Front Left292 Type; VIN E (4th digit); CV Axle Shaft
2018Mercedes-BenzGLE43 AMG——Front Left166 Type; VIN D (4th digit); CV Axle Shaft
2018Mercedes-BenzGLE550——Front Left166 Type; VIN D, 4th digit); CV Axle Shaft
2018Mercedes-BenzGLE550e——Front Left166 Type; VIN D (4th digit); CV Axle Shaft
2018Mercedes-BenzGLS450——Front Left166 Type; w/o Off Road Package; CV Axle Shaft
2018Mercedes-BenzGLS550——Front Left166 Type; w/o Off Road Package; CV Axle Shaft
2017Mercedes-BenzGLE350AWD—Front Left166 Type; VIN D (4th digit); CV Axle Shaft
2017Mercedes-BenzGLE400——Front Left166 Type; VIN D (4th digit); CV Axle Shaft
2017Mercedes-BenzGLE43 AMG——Front Left292 Type; VIN E (4th digit); CV Axle Shaft
2017Mercedes-BenzGLE43 AMG——Front Left166 Type; VIN D (4th digit); CV Axle Shaft
2017Mercedes-BenzGLE550e——Front Left166 Type; VIN D (4th digit); CV Axle Shaft
2017Mercedes-BenzGLS350d——Front Left166 Type; CV Axle Shaft
2017Mercedes-BenzGLS450——Front Left166 Type; w/o Off Road Package; CV Axle Shaft
2017Mercedes-BenzGLS550——Front Left166 Type; w/o Off Road Package; CV Axle Shaft
2016Mercedes-BenzGLE300d——Front Left166 Type; VIN D (4th digit); CV Axle Shaft
2016Mercedes-BenzGLE350——Front Left166 Type; VIN D (4th digit); CV Axle Shaft
2016Mercedes-BenzGLE350d——Front Left166 Type; VIN D (4th digit); CV Axle Shaft
2016Mercedes-BenzGLE350d——Front Left292 Type; VIN E (4th digit); CV Axle Shaft
2016Mercedes-BenzGLE400——Front Left166 Type; w/o Off Road Package; VIN D (4th digit); CV Axle Shaft
2016Mercedes-BenzGLE450 AMG——Front Left292 Type; VIN E (4th digit); CV Axle Shaft
2016Mercedes-BenzGLE550e——Front Left166 Type; VIN D (4th digit); CV Axle Shaft
2015Mercedes-BenzGL63 AMG——Front Left166 Type; 158mm Inertia Ring; Thru 9/1/2014; CV Axle Shaft
2015Mercedes-BenzML250——Front Left166 Type; From 08/04/2014; CV Axle Shaft
2015Mercedes-BenzML350——Front Left166 Type; w/o Off Road Package; From 08/04/2014; CV Axle Shaft
2015Mercedes-BenzML400——Front Left166 Type; w/o Off Road Package; From 08/04/2014; CV Axle Shaft
2014Mercedes-BenzGL450——Front Leftw/ Off Road Package; 166 Type; 158mm Inertia Ring; Thru 9/1/2014; CV Axle Shaft
2014Mercedes-BenzGL550——Front Leftw/ Off Road Package; 166 Type; 158mm Inertia Ring; Thru 9/1/2014; CV Axle Shaft
2014Mercedes-BenzGL63 AMG——Front Left166 Type; 158mm Inertia Ring; Thru 9/1/2014; CV Axle Shaft
2014Mercedes-BenzML350—GASFront Leftw/ Off Road Package; 166 Type; 158mm Inertia Ring; Thru 9/1/2014; CV Axle Shaft
2014Mercedes-BenzML550——Front Leftw/ Off Road Package; 166 Type; 158mm Inertia Ring; Thru 9/1/2014; CV Axle Shaft
2014Mercedes-BenzML63 AMG——Front Left166 Type; 158mm Inertia Ring; Thru 9/1/2014; CV Axle Shaft
2013Mercedes-BenzGL450——Front Leftw/ Off Road Package; 166 Type; 158mm Inertia Ring; CV Axle Shaft
2013Mercedes-BenzGL550——Front Leftw/ Off Road Package; 166 Type; 158mm Inertia Ring; CV Axle Shaft
2013Mercedes-BenzGL63 AMG——Front Left166 Type; 158mm Inertia Ring; CV Axle Shaft
2013Mercedes-BenzML350—GASFront Leftw/ Off Road Package; 166 Type; 158mm Inertia Ring; CV Axle Shaft
2013Mercedes-BenzML550——Front Leftw/ Off Road Package; 166 Type; 158mm Inertia Ring; CV Axle Shaft
2013Mercedes-BenzML63 AMG——Front Left166 Type; 158mm Inertia Ring; CV Axle Shaft
2012Mercedes-BenzML350—GASFront Leftw/ Off Road Package; 166 Type; 158mm Inertia Ring; CV Axle Shaft
2012Mercedes-BenzML550——Front Leftw/ Off Road Package; 166 Type; 158mm Inertia Ring; CV Axle Shaft
2012Mercedes-BenzML63 AMG——Front Left166 Type; 158mm Inertia Ring; From 12/02/2012; CV Axle Shaft
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — MB-806316633014001663301601NCV48086
