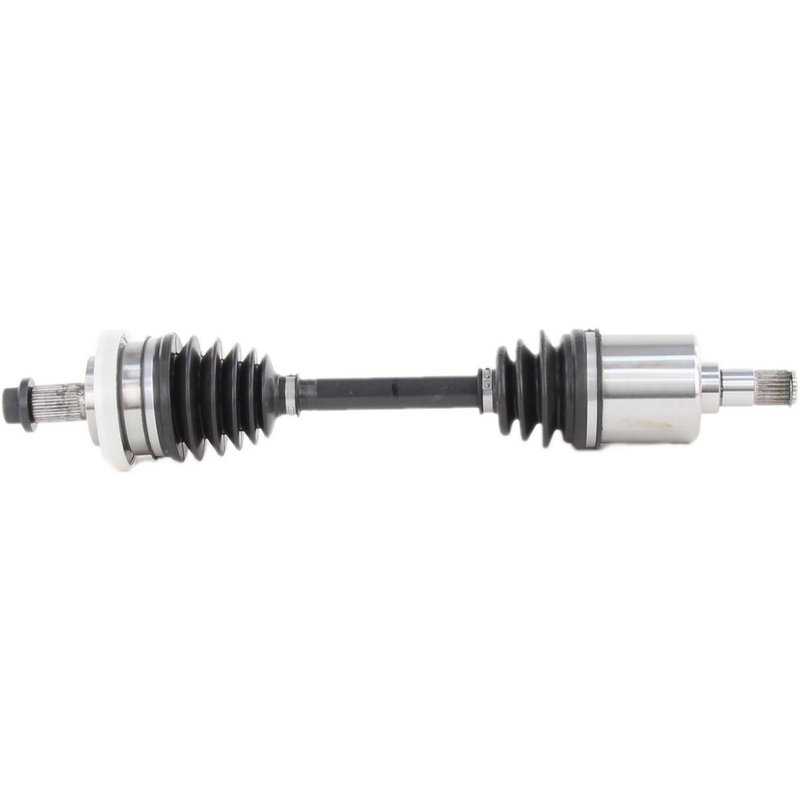

TrakMotive MB-8064 CV Axle Shaft - Front Right

Mercedes-Benz S430 S500 Front Right CV Axle

The TrakMotive AAR CV Axle Shaft MB-8064 is a new front right axle assembly for select Mercedes-Benz S430 and S500 models. It is built for 2003-2006 applications with updated design coverage, including 220-type fitments and the specified 2004 through VIN A406095 vehicles.

TrakMotive’s AAR CV Axle Shaft line focuses on direct-fit driveline replacement parts for import applications. MB-8064 follows that approach with application-specific spline counts, bolt dimensions, and ABS tone ring details for the listed Mercedes-Benz vehicles.

Key Features

• New CV axle shaft for the front right position
• Fits 2003-2006 Mercedes-Benz S430, front right
• Fits 2003-2006 Mercedes-Benz S500, front right
• Updated design for 220-type applications
• 24 inboard splines and 35 outboard splines
• Male inboard joint with spline connection
• Audi-style spline bolt outboard joint design
• Magnetic ABS ring with 48 teeth and included tone ring
• Neoprene boot material
• Overall compressed length: 20.87 in. (530 mm)

Detailed Description

MB-8064 is a TrakMotive CV axle shaft engineered for the front right side of select Mercedes-Benz S430 and S500 models. It uses a 24-spline inboard connection, 35-spline outboard connection, and an Audi-style spline bolt outboard joint with M16 x 1.5 thread specification. The axle also includes a magnetic ABS ring with 48 teeth and an ABS tone ring, supporting the listed vehicle applications.

This part cross-references Mercedes-Benz OE numbers 220 330 01 01 and 2203300300 for the same application. It is also listed under TrakMotive part number MB-8064 for direct identification when sourcing a replacement CV axle for a Mercedes-Benz S430 or S500 front right driveline repair.

What It Helps Repair

• Clicking or popping during turns from a worn outer CV joint
• Vibration or shudder under acceleration from axle wear
• Grease leakage from a damaged axle boot
• ABS warning concerns related to a failed tone ring or sensor signal path
• Driveline noise caused by spline or joint wear

Installation Notes

Verify the vehicle’s year, model, position, and VIN break before ordering. This axle is listed for front right applications on 2003-2006 Mercedes-Benz S430 and S500 models, with 2004 coverage through VIN A406095 and updated design notes for 220-type fitments. Confirm axle bolt dimensions, spline counts, and ABS ring configuration against the original part before installation.

Axle nut is not included. The axle bolt uses a 27 mm hex size, 86 mm length, and M16 x 1.5 thread size. Professional installation and final torque verification are recommended for proper driveline and ABS operation.

Quality Assurance

TrakMotive identifies this as a new part and backs the AAR CV Axle Shaft line with a limited lifetime warranty. The manufacturer also states ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled production and quality management standards.
