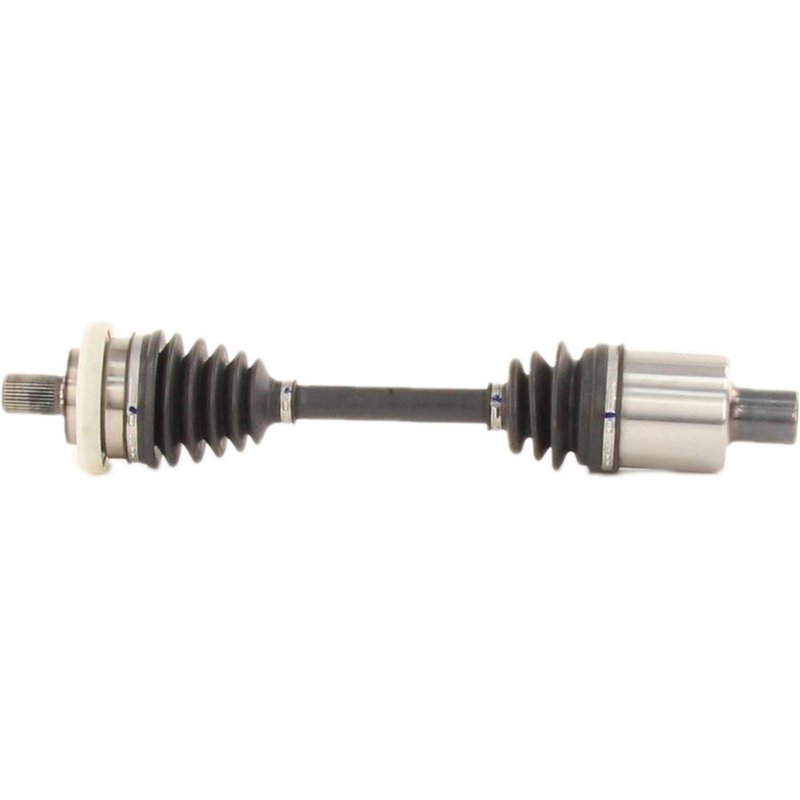

TrakMotive MB-8065 CV Axle Shaft - Front Left
| Brand | TrakMotive MB-8065 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Magnetic |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | 27 |
| Axle Bolt Length (mm) | 86 |
| Axle Bolt Thread Size | M16*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 35 |
| Outboard Bolt Head Size (in) | 1.06 |
| Outboard Bolt Head Size (mm) | 27 |
| Outboard Bolt Head Type | Allen |
| Outboard Bolt Length (in) | 3.39 |
| Outboard Bolt Length (mm) | 86 |
| Outboard Joint Bolt Thread Size | M16*1.5 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 20.04 |
| Overall Compressed Length (mm) | 509 |
| Product line | AAR CV Axle Shaft |
| Fits | Mercedes-Benz · 8 vehicles |
New replacement shaft. Built as a fresh CV axle shaft for dependable driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS-ready design. Includes a magnetic tone ring for ABS-equipped applications.
Cross-references FEL-PRO 36049, TrakMotive MB-8065 and 9041N for the same application. See all 8.
Mercedes-Benz S430 S500 Front Left CV Axle
TrakMotive MB-8065 is a new AAR CV axle shaft for the front left position on select Mercedes-Benz S430 and S500 models. It is built for 2003-2006 applications with updated 220 Type fitment notes, including 2004 vehicles through VIN A406095.
Key Features
- Brand: TrakMotive AAR CV Axle Shaft
- Part number: MB-8065
- New CV axle shaft for front left driveline service
- Overall compressed length: 509 mm (20.04 in.)
- Inboard joint type: female with spline connection
- Outboard joint type: Audi-style spline bolt
- Inboard splines: 34; outboard splines: 35
- Neoprene boot material for driveline protection
- ABS tone ring included with 48-tooth magnetic ring
- Axle bolt thread size: M16 x 1.5
Product Details
MB-8065 is a direct-fit style CV axle shaft for Mercedes-Benz S430 and Mercedes-Benz S500 front left applications listed above. The axle uses a spline-style inboard connection, an Audi-style spline bolt outboard joint, and a magnetic ABS tone ring to support wheel speed sensor signal requirements where equipped. TrakMotive identifies this axle as part of its AAR CV Axle Shaft line, and the company notes ISO 9001:1007 and TS 16949:2009 certification for its manufacturing system. This part cross-references FEL-PRO 36049 for the same application.
Common Problems This Part Can Address
- Clicking or popping during turns from a worn outer CV joint
- Vibration under acceleration caused by axle wear or imbalance
- Grease leakage from a damaged CV boot
- Driveline noise from worn splines or joint components
- ABS warning concerns related to a damaged tone ring on equipped vehicles
Installation Notes
Confirm the front left position and verify the updated 220 Type fitment notes before ordering. Check axle bolt thread size, bolt head size, spline counts, and overall compressed length against the removed part to ensure proper match. Inspect seals, hub condition, and mating surfaces during installation, and torque all fasteners to Mercedes-Benz service specifications.
Quality Assurance
TrakMotive lists MB-8065 as a new replacement axle shaft and backs it with a limited lifetime warranty. The brand also states that its manufacturing is ISO 9001:1007 and TS 16949:2009 certified.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Mercedes-Benz | S430 | Front Left | Updated Design; 220 Type; AAR CV Axle Shaft |
| 2006 | Mercedes-Benz | S500 | Front Left | Updated Design; 220 Type; AAR CV Axle Shaft |
| 2005 | Mercedes-Benz | S430 | Front Left | Updated Design; 220 Type; AAR CV Axle Shaft |
| 2005 | Mercedes-Benz | S500 | Front Left | Updated Design; 220 Type; AAR CV Axle Shaft |
| 2004 | Mercedes-Benz | S430 | Front Left | Updated Design; 220 Type; Thru VIN A406095; AAR CV Axle Shaft |
| 2004 | Mercedes-Benz | S500 | Front Left | Updated Design; 220 Type; Thru VIN A406095; AAR CV Axle Shaft |
| 2003 | Mercedes-Benz | S430 | Front Left | Updated Design; 220 Type; AAR CV Axle Shaft |
| 2003 | Mercedes-Benz | S500 | Front Left | Updated Design; 220 Type; AAR CV Axle Shaft |
