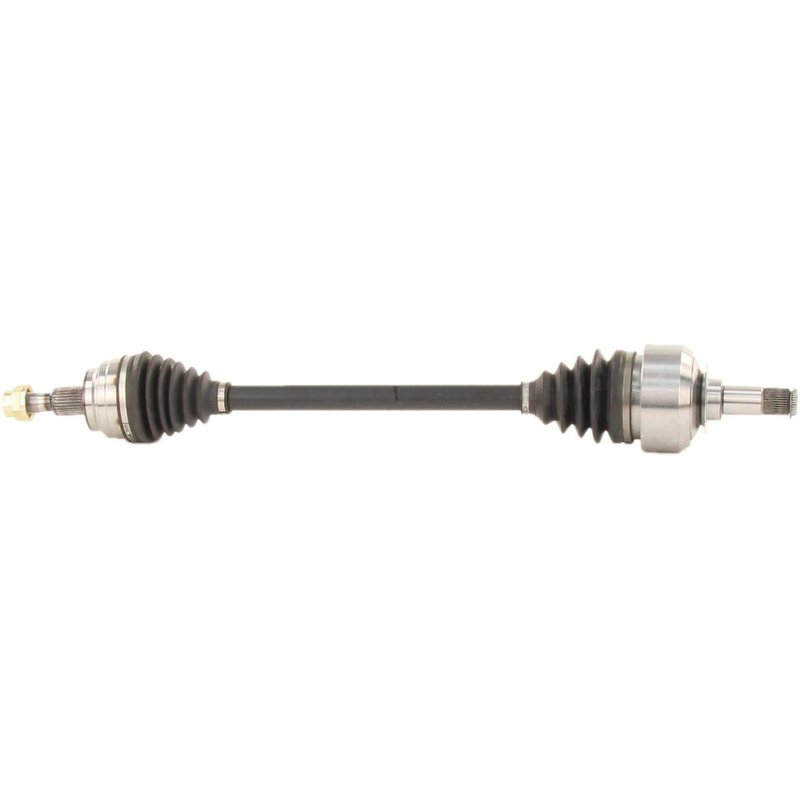

TrakMotive MB-8069 CV Axle Shaft - Rear Left or Rear Right

Overview of TrakMotive CV Axle Shaft MB-8069 for Mercedes-Benz ML63 AMG

The TrakMotive CV Axle Shaft MB-8069 is engineered specifically for the Mercedes-Benz ML63 AMG, providing reliable driveline performance. Designed as a new replacement part, this axle shaft ensures precise fitment and durability for your vehicle's CV components.

• Compatible with Mercedes-Benz ML63 AMG models
• New, not remanufactured, for consistent quality
• Includes a self-locking hex axle nut (M24*1.5 thread size)
• Neoprene boot material for enhanced joint protection
• Inboard joint type: Male with 37 splines; Outboard joint type: Conventional with 30 splines
• Overall compressed length of 32.8 inches (833 mm)
• Axle nut dimensions: 1.1 inches (28 mm) height, 1.42 inches (36 mm) hex size, 1.64 inches (41.57 mm) length

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored for specific vehicle applications. This line emphasizes quality materials such as neoprene boots and robust spline connections to maintain drivetrain integrity. The MB-8069 model exemplifies this approach by combining a male inboard joint with a conventional outboard joint, ensuring compatibility and performance for the Mercedes-Benz ML63 AMG.

Technical Description and Features

The MB-8069 CV Axle Shaft features a neoprene boot that offers resistance to wear and environmental factors, protecting the joint from contaminants. The inboard joint uses a male spline connection with 37 splines, while the outboard joint employs a conventional design with 30 splines, both ensuring secure and precise engagement. The included axle nut is a self-locking hex type with a thread size of M24*1.5, measuring 1.1 inches in height and 1.42 inches across the hex, providing a secure fit during installation. The overall compressed length of 32.8 inches (833 mm) matches OEM specifications for the ML63 AMG, supporting proper driveline geometry and function.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Mercedes-Benz ML63 AMG
• Addresses issues such as axle vibration or clicking noises during turns
• Resolves grease leakage caused by torn or degraded boots
• Eliminates driveline imbalance due to bent or compromised shafts
• Restores proper torque transfer and wheel alignment

Installation Notes and Tips

When installing the TrakMotive MB-8069 CV Axle Shaft, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Inspect the surrounding suspension and driveline components for wear to prevent premature failure. The neoprene boot should be checked for proper seating to avoid contamination. Use appropriate tools for spline engagement to avoid damage during installation.

Quality Assurance and Warranty

This CV Axle Shaft is a new, high-quality replacement part designed to meet or exceed OEM standards for the Mercedes-Benz ML63 AMG. The included self-locking axle nut and durable neoprene boot contribute to long service life. Warranty details are provided by TrakMotive and typically cover defects in materials and workmanship under normal use conditions.
