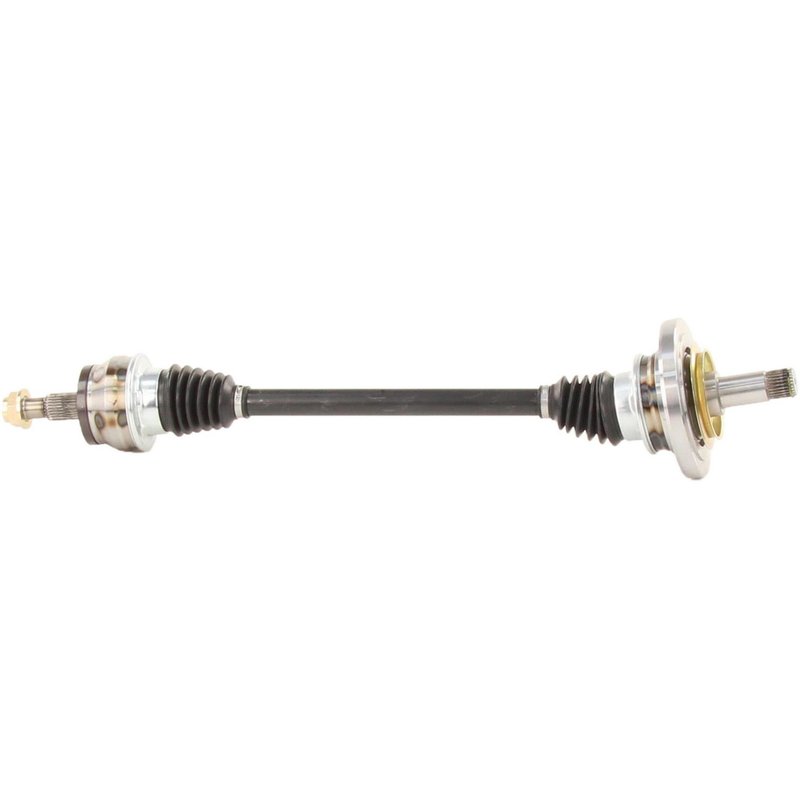

TrakMotive MB-8076 CV Axle Shaft - Rear Left or Rear Right
| Brand | TrakMotive MB-8076 |
|---|---|
| Position | Rear Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Magnetic |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.91 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.36 |
| Axle Nut Hex Size (mm) | 34.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.57 |
| Axle Nut Length (mm) | 39.95 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 30.39 |
| Overall Compressed Length (mm) | 772 |
| Product line | CV Axle Shaft |
| Fits | Mercedes-Benz · 8 vehicles |
New CV axle shaft. Built with neoprene boot material and spline connections for dependable driveline operation.
ABS tone ring included. Magnetic ring with 48 teeth for accurate wheel speed signal pickup.
Axle nut included. Hex-head, stake-lock nut is included for a complete installation.
Cross-references TrakMotive MB-8076, 211350030228A and NCV48009 for the same application. See all 3.
Mercedes-Benz Rear CV Axle Shaft
TrakMotive MB-8076 is a new CV axle shaft for rear applications on select Mercedes-Benz E-Class models. It is built for 2003-2005 Mercedes-Benz E320 rear left and rear right, plus 2006 Mercedes-Benz E350 rear left and rear right, with fitment specific to 211 Type vehicles.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: MB-8076
- New axle shaft construction
- Overall compressed length: 30.39 in. (772 mm)
- Inboard and outboard shaft connection style: spline
- Inboard joint type: male
- Outboard joint type: conventional
- Boot material: neoprene
- ABS tone ring included with 48-tooth magnetic ring
- Axle nut included with M26 x 1.5 thread, 34.6 mm hex size, stake locking type
Product Details
This TrakMotive CV axle shaft is engineered for rear driveline service on Mercedes-Benz E320 and Mercedes-Benz E350 applications that use the 211 Type platform. The MB-8076 includes a magnetic ABS tone ring with 48 teeth, a neoprene boot, and the axle nut specified for the application. TrakMotive notes that ABS axles fit non-ABS applications unless otherwise noted, and the part is backed by ISO 9001:1007 and TS 16949:2009 certified manufacturing practices.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Clicking or popping from a worn CV joint
- Vibration during acceleration from a damaged axle shaft
- ABS warning concerns related to a failed tone ring or sensor signal path
- Boot cracking that can lead to grease loss and joint wear
- Driveline noise from excessive spline or joint wear
Installation Notes
Verify rear left or rear right position before ordering. Confirm 211 Type fitment, axle nut thread size, and ABS configuration against the vehicle before installation. Inspect mating components, seals, and hub condition during replacement to help ensure proper operation on Mercedes-Benz E320 and Mercedes-Benz E350 rear axle service.
Quality Assurance
TrakMotive manufactures this axle shaft as a new replacement part and supports it with a limited lifetime warranty. The company states that its products are produced under ISO 9001:1007 and TS 16949:2009 certified quality systems.
| Year | Make | Model | Body Type | Drive Type | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2006 | Mercedes-Benz | E350 | — | — | — | Rear Right | 211 Type; CV Axle Shaft |
| 2006 | Mercedes-Benz | E350 | — | — | — | Rear Left | 211 Type; CV Axle Shaft |
| 2005 | Mercedes-Benz | E320 | — | RWD | GAS | Rear Right | 211 Type; CV Axle Shaft |
| 2005 | Mercedes-Benz | E320 | — | RWD | GAS | Rear Left | 211 Type; CV Axle Shaft |
| 2004 | Mercedes-Benz | E320 | — | RWD | — | Rear Right | 211 Type; CV Axle Shaft |
| 2004 | Mercedes-Benz | E320 | — | RWD | — | Rear Left | 211 Type; CV Axle Shaft |
| 2003 | Mercedes-Benz | E320 | Sedan | RWD | — | Rear Right | 211 Type; CV Axle Shaft |
| 2003 | Mercedes-Benz | E320 | Sedan | RWD | — | Rear Left | 211 Type; CV Axle Shaft |
