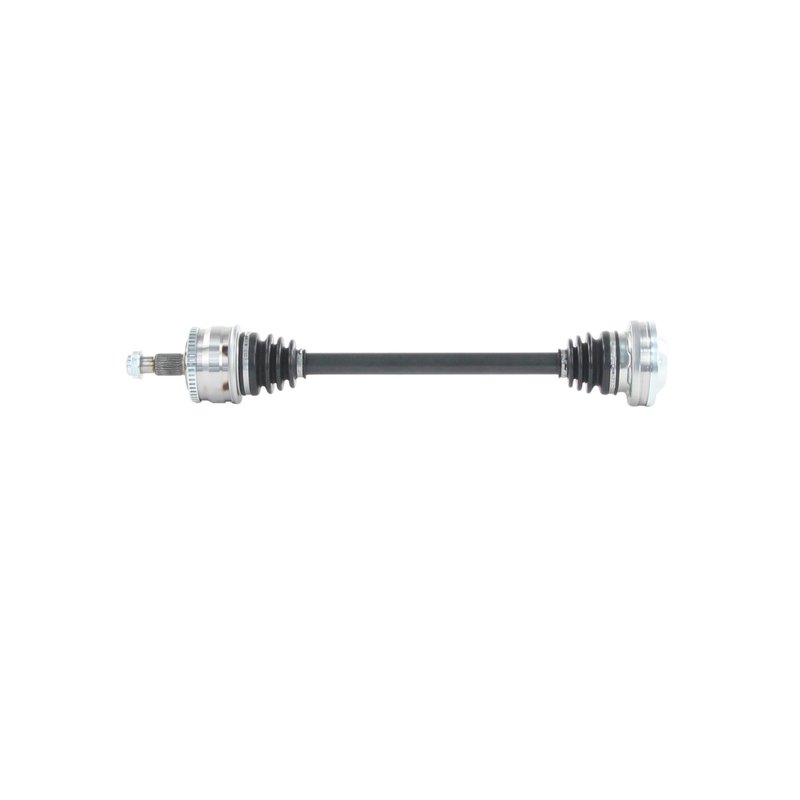

TrakMotive MB-86014 CV Axle Shaft - Rear

Rear CV Axle Shaft for Mercedes-Benz E320

TrakMotive MB-86014 is a rear CV axle shaft for 1998-2003 Mercedes-Benz E320 models with standard duty replacement needs. It is built as a premium driveline component with a conventional outboard joint and a bolt-on inboard joint for the rear axle position.

This TrakMotive CV axle shaft is engineered for the Mercedes-Benz E320 rear application and uses neoprene boot material at both joints. The axle measures 26.25 inches (667 mm) overall compressed length, with a 32 mm axle nut socket size, M26x1.5 thread size, and 18 mm axle nut height. It does not include an ABS tone ring and is listed with 27 outboard splines.

• Fits 1998-2003 Mercedes-Benz E320, rear
• Premium-grade CV axle shaft for driveline replacement
• Bolt-on inboard joint with 6 inboard joint bolt holes
• Conventional outboard joint with 27 outboard splines
• Neoprene boot material at inboard and outboard joints
• ABS ring tooth count: 0; ABS tone ring not included
• Axle nut thread size: M26x1.5; socket size: 32 mm

TrakMotive MB-86014 cross-references Monroe Shocks & Struts NCV48061 for the same application.

Detailed Application and Function

Use this rear CV axle shaft to restore torque transfer between the drivetrain and rear wheel assembly on the Mercedes-Benz E320. It is a direct-fit replacement for rear-position service on 1998-2003 Mercedes-Benz E320 models and is specified as a standard duty replacement for this application. TrakMotive MB-86014 is part of the TrakMotive CV Axle Shaft line, a driveline-focused product line for axle replacement service.

Common Issues This Part Can Address

• Clicking or popping from a worn rear CV joint
• Vibration during acceleration from axle wear
• Torn or deteriorated CV boots
• Grease leakage around the axle assembly
• Excessive play in the rear driveline axle shaft

Installation Notes and Tips

Verify rear-position fitment, axle nut thread size, and spline count before installation on the Mercedes-Benz E320. Confirm that the vehicle does not require an ABS tone ring on the replacement axle, since this part is listed without one. Inspect related mounting points, seals, and hardware condition during service to help ensure a proper repair.

Quality Assurance

TrakMotive states that this axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, reflecting controlled production and quality management practices.
