OE Quality
60-Day Returns
TrakMotive

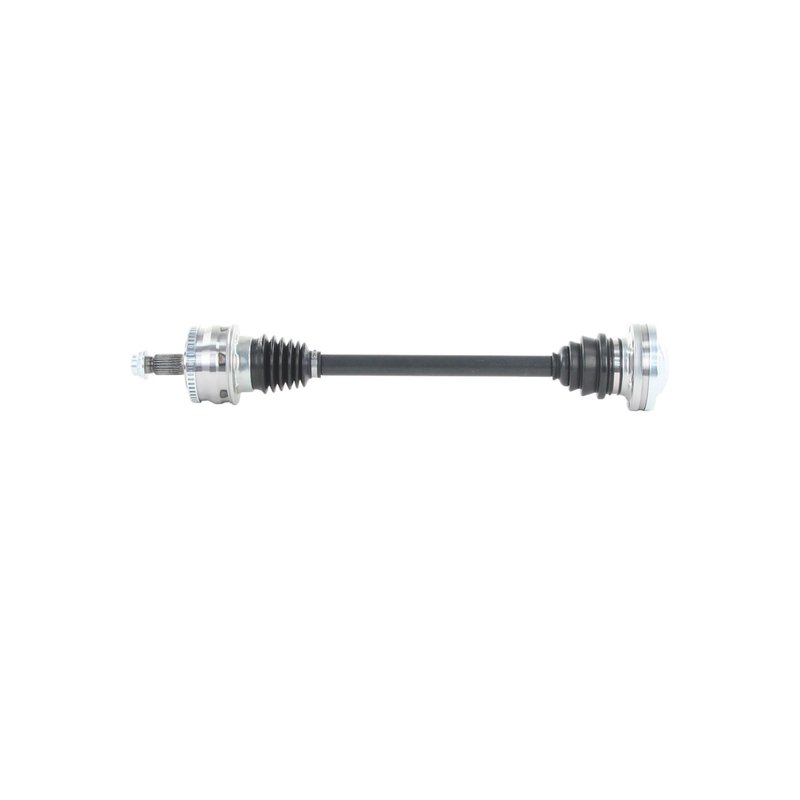

CV Axle ShaftTrakMotive MB-86016 CV Axle Shaft - Rear Left
| Brand | TrakMotive MB-86016 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Window |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 17 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 30 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Bolt-on |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 6 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 25.69 |
| Overall Compressed Length (mm) | 652 |
| Overall Extended Length (in) | 27.94 |
| Overall Extended Length (mm) | 710 |
| Product line | CV Axle Shaft |
| Fits | Mercedes-Benz · 7 vehicles |
Cross-references TrakMotive MB-86016 for the same application. See all 1.
$191.50Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options
TrakMotive MB-86016 CV Axle Shaft - Rear Left
This part fits 7 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2002 | Mercedes-Benz | E430 | RWD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2002 | Mercedes-Benz | E55 AMG | — | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2001 | Mercedes-Benz | E430 | RWD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2001 | Mercedes-Benz | E55 AMG | — | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2000 | Mercedes-Benz | E430 | RWD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2000 | Mercedes-Benz | E55 AMG | — | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 1999 | Mercedes-Benz | E55 AMG | — | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| No rows match your filter. | |||||
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — MB-86016
