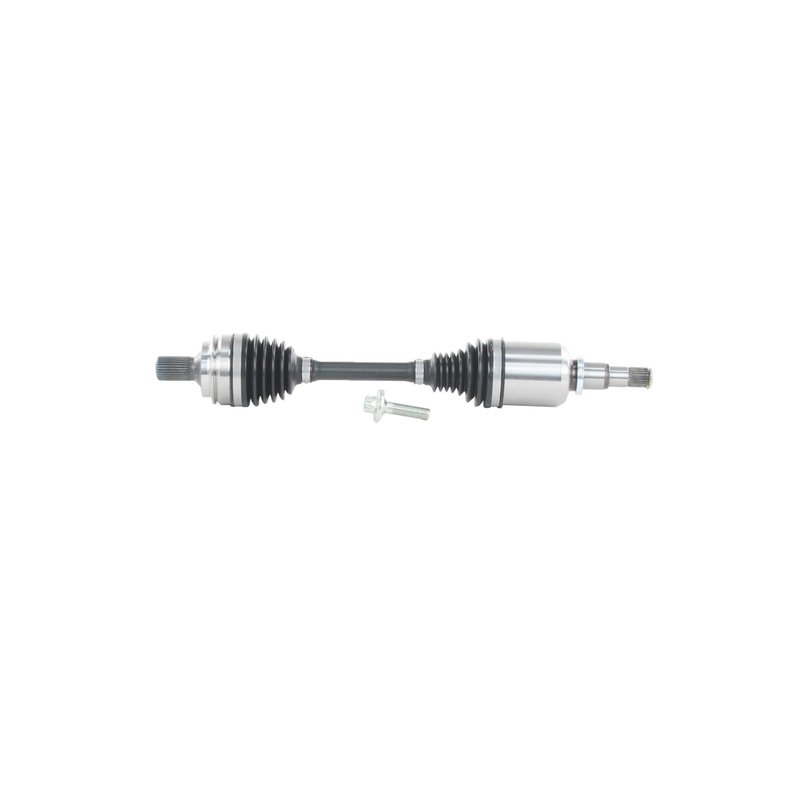

TrakMotive MB-86017 CV Axle Shaft - Front Right
| Brand | TrakMotive MB-86017 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 16 |
| Axle Bolt Length (mm) | 82 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Included | No |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Joint Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Audi style spline bolt |
| Overall Compressed Length (in) | 22.89 |
| Overall Compressed Length (mm) | 582 |
| Product line | AAR CV Axle Shaft |
| Fits | Mercedes-Benz · 3 vehicles |
Premium grade. Built with thermoplastic boots for durable CV joint protection.
ABS-ready design. Configured for non-ABS applications unless otherwise noted.
Certified quality. Made by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive MB-86017 for the same application. See all 1.
Mercedes-Benz E300 Front Right CV Axle Shaft
The TrakMotive AAR CV Axle Shaft MB-86017 is a premium driveline replacement for the front right position on select Mercedes-Benz E300 models. It is built for 2017-2019 Mercedes-Benz E300 applications and uses an Audi-style spline bolt outboard joint design for the specified fitment.
Key Features
- Fits 2017-2019 Mercedes-Benz E300, front right
- TrakMotive AAR CV Axle Shaft, part number MB-86017
- Premium grade replacement axle shaft
- 24 inboard splines and 30 outboard splines
- Thermoplastic boots on the inboard and outboard joints
- Male inboard joint design
- Overall compressed length: 22.89 in. (582 mm)
- No ABS tone ring included; ABS ring tooth count: 0
Product Details
TrakMotive MB-86017 is engineered as a direct-fit CV axle shaft for the front right side of the Mercedes-Benz E300. The axle uses a 16 mm hex axle bolt with M16x1.5 thread and an 82 mm bolt length, along with an Audi-style spline bolt outboard joint configuration. TrakMotive identifies this AAR CV Axle Shaft line as a premium driveline solution, and the company states its manufacturing is ISO 9001:2008 and TS 16949:2009 certified.
This part cross-references TrakMotive MB-86017 for the same application.
What It Helps Fix
- Clicking or popping noises during turns
- Vibration from a worn front axle assembly
- Grease leakage from damaged CV boots
- Axle play caused by worn joint components
- Driveline noise under acceleration or load
Installation Notes
Verify front right fitment before installation on 2017-2019 Mercedes-Benz E300 models. Confirm spline count, axle bolt specifications, and overall compressed length against the original axle before removal. The axle nut is not included, so reuse or replace related fasteners as required by the vehicle service procedure.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certified manufacturing standards for this product line.
| Year | Make | Model | Body Type | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Mercedes-Benz | E300 | Sedan | AWD | Front Right | 213 Type; AAR CV Axle Shaft |
| 2018 | Mercedes-Benz | E300 | Sedan | AWD | Front Right | 213 Type; AAR CV Axle Shaft |
| 2017 | Mercedes-Benz | E300 | — | AWD | Front Right | 213 Type; AAR CV Axle Shaft |
