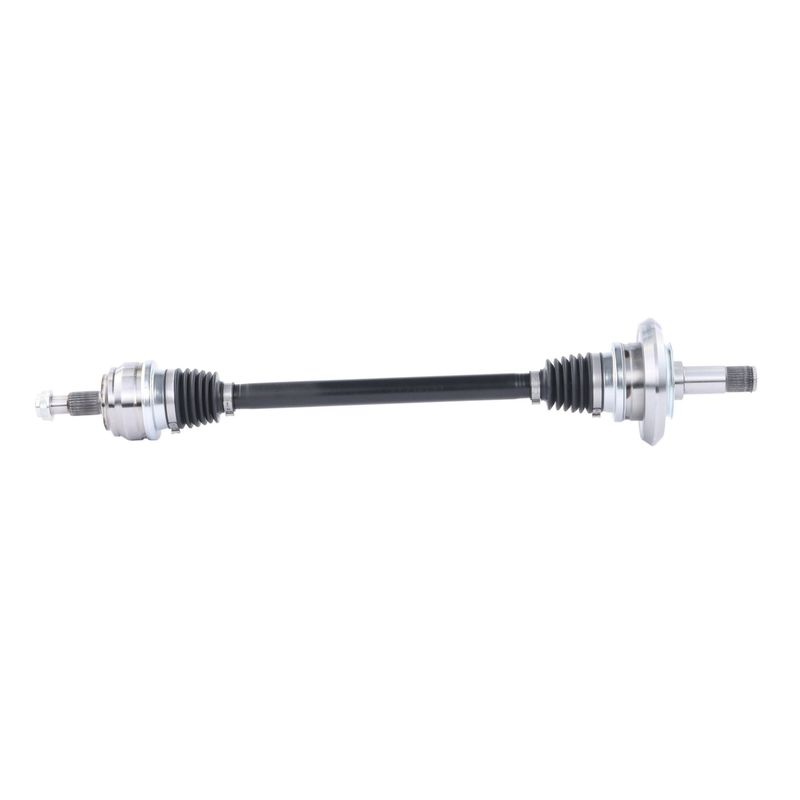

TrakMotive MB-86022 CV Axle Shaft - Rear Right
| Brand | TrakMotive MB-86022 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .69 |
| Axle Nut Height (mm) | 18 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26x1.5 |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 31.875 |
| Overall Compressed Length (mm) | 810 |
| Overall Extended Length (In) | 35.06 |
| Overall Extended Length (mm) | 890 |
| Product line | CV Axle Shaft |
| Fits | Mercedes-Benz · 2 vehicles |
OE-style replacement. Direct-fit CV axle shaft for standard-duty driveline service.
Service-ready design. Includes axle nut with stake locking and M26x1.5 thread.
Certified manufacturing. Built by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive MB-86022 for the same application. See all 1.
Product Overview
TrakMotive MB-86022 is a rear right CV axle shaft for the Mercedes-Benz GLC300. It is built for standard-duty replacement applications and includes an axle nut for service-ready installation.
This CV axle shaft uses spline connections at both ends, a conventional outboard joint, and a male inboard joint. The axle nut features a 32 mm hex size, M26x1.5 thread, and stake locking type for a secure fit.
Key Features
- Fits 2016-2017 Mercedes-Benz GLC300, rear right.
- Standard-duty replacement CV axle shaft for driveline service.
- 30-spline inboard and 27-spline outboard shaft connection design.
- Includes axle nut with hex head and stake locking style.
- ABS tone ring is not included.
Detailed Description
TrakMotive MB-86022 is a direct-fit driveline component for the Mercedes-Benz GLC300 rear right position. The shaft measures 31.875 inches compressed and 35.06 inches extended, giving it the length range needed for the listed application. Its spline-based construction and conventional joint design support consistent torque transfer in standard-duty service.
TrakMotive MB-86022 is identified for 2016-2017 Mercedes-Benz GLC300 applications and is also referenced by part number MB-86022. This part cross-references TrakMotive (e.g., MB-86022) for the same application.
What It Helps Solve
- Clicking or popping noises during turns.
- Vibration caused by a worn axle shaft.
- Torque transfer issues from damaged splines or joints.
- Service replacement needs after axle wear or failure.
Installation Notes
Verify rear right fitment before installation and confirm axle length, spline count, and nut thread size against the removed part. The axle nut is included; ABS tone ring is not included. Professional installation and final torque verification are recommended for driveline service.
Quality Assurance
TrakMotive lists this axle shaft with a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certified manufacturing processes.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2017 | Mercedes-Benz | GLC300 | RWD | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2016 | Mercedes-Benz | GLC300 | RWD | Rear Right | Standard Duty Replacement; CV Axle Shaft |
