TrakMotivePart #: MB-86025

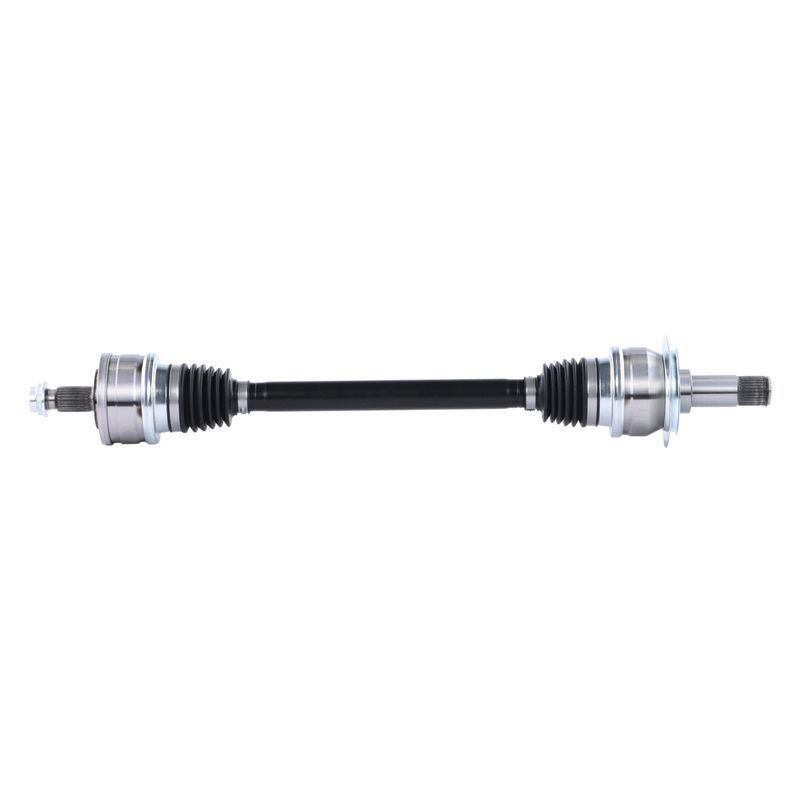

TrakMotive MB-86025 CV Axle Shaft - Rear
9 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$364.84Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
CV Axle Shaft, Rear
Fitment: Mercedes-Benz, C55 AMG, CLK500, CLK55 AMG, and CLK550
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all CV Axle Shaft options
TrakMotive MB-86025 CV Axle Shaft - Rear
| Brand | TrakMotive |
|---|---|
| Part Number | MB-86025 |
| Position | CV Axle Shaft, Rear |
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Magnetic |
| ABS Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .69 |
| Axle Nut Height (mm) | 17 |
| Axle Nut Hex Size (in) | 1.19 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.31 |
| Axle Nut Length (mm) | 34 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24x1.5 |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 28.75 |
| Overall Compressed Length (mm) | 731 |
| Overall Extended Length (in) | 31.94 |
| Overall Extended Length (mm) | 811 |
| Overall Extended Length(In) | 31.94 |
This part fits 9 vehicles. Search below:
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2009 | Mercedes-Benz | CLK550 | Rear | Standard Duty Replacement; CV Axle Shaft | |
| 2008 | Mercedes-Benz | CLK550 | Rear | Standard Duty Replacement; CV Axle Shaft | |
| 2007 | Mercedes-Benz | CLK550 | Rear | Standard Duty Replacement; CV Axle Shaft | |
| 2006 | Mercedes-Benz | C55 AMG | Sedan | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2006 | Mercedes-Benz | CLK500 | Rear | Standard Duty Replacement; CV Axle Shaft | |
| 2006 | Mercedes-Benz | CLK55 AMG | Rear | Standard Duty Replacement; CV Axle Shaft | |
| 2005 | Mercedes-Benz | C55 AMG | Sedan | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2005 | Mercedes-Benz | CLK500 | Rear | Standard Duty Replacement; CV Axle Shaft | |
| 2005 | Mercedes-Benz | CLK55 AMG | Rear | Standard Duty Replacement; CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
MB-86025
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
