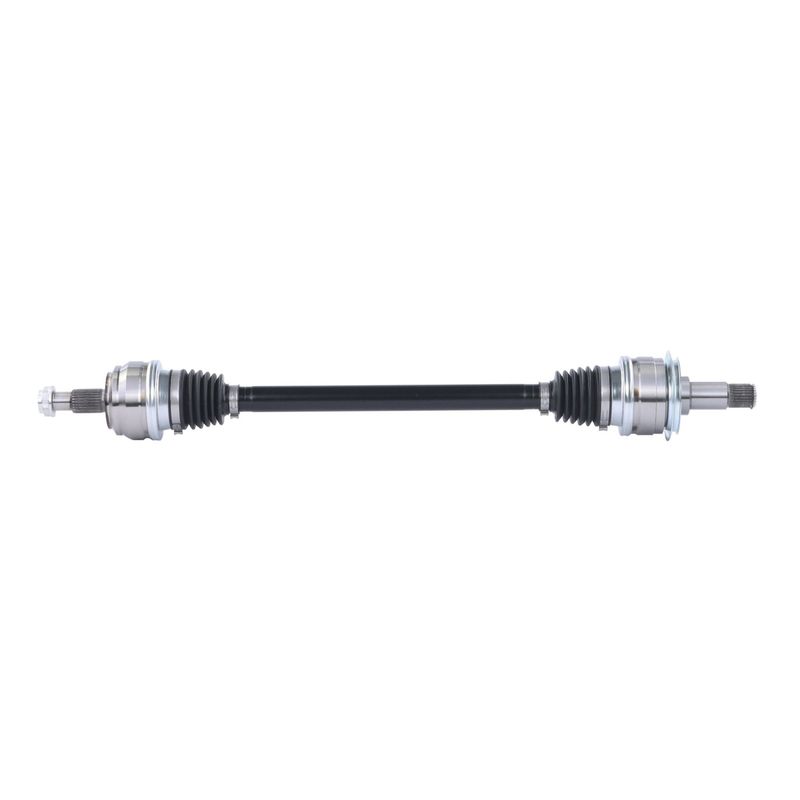

TrakMotive MB-86027 CV Axle Shaft - Rear Left
| Brand | TrakMotive MB-86027 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .69 |
| Axle Nut Height (mm) | 18 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26x1.5 |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 31.875 |
| Overall Compressed Length (mm) | 809 |
| Overall Extended Length (In) | 35 |
| Overall Extended Length (mm) | 889 |
| Product line | CV Axle Shaft |
| Fits | Mercedes-Benz · 2 vehicles |
OE-style replacement. CV axle shaft for direct driveline service and accurate fitment.
Spline connection design. 27-spline inboard and outboard ends for secure shaft engagement.
Warranty included. Backed by a limited lifetime warranty from TrakMotive.
Cross-references TrakMotive MB-86027 for the same application. See all 1.
Overview
TrakMotive MB-86027 is a CV axle shaft for select Mercedes-Benz GLC300 applications. It is built for rear left fitment and uses spline connections with a conventional outboard joint for direct driveline service.
This MB-86027 axle shaft includes a hex axle nut with a stake locking type and M26x1.5 thread size. It is specified for non-ABS applications, with no ABS tone ring included.
Key Features
- CV axle shaft for driveline replacement service
- Rear left fitment for select Mercedes-Benz GLC300 models
- 27-spline inboard and outboard shaft connections
- Conventional outboard joint design
- Axle nut included with hex head and stake lock style
- ABS tone ring not included
Detailed Description
TrakMotive MB-86027 is a replacement CV axle shaft engineered around the listed dimensions and connection details for select Mercedes-Benz GLC300 rear left applications. The axle measures 31.875 inches compressed and 35 inches extended, with 27 splines at both shaft ends for proper engagement in the driveline assembly. The included axle nut uses a 32 mm hex size and M26x1.5 thread specification.
For buyers searching for a Mercedes-Benz GLC300 rear left CV axle shaft, MB-86027 provides the fitment and hardware details needed for a direct replacement decision. This part cross-references TrakMotive MB-86027 for the same application.
What It Helps Address
- Clicking or popping noises from a worn CV axle
- Vibration during acceleration from driveline wear
- Grease leakage from a damaged axle assembly
- Excessive play in the axle shaft connection
Installation Notes
Verify rear left fitment and confirm the vehicle is a non-ABS application before installation. Match the spline count, axle nut thread size, and overall length to the original part before assembly. Professional installation is recommended for proper driveline alignment and torque procedures.
Quality Assurance
TrakMotive lists MB-86027 with a limited lifetime warranty and states that the company is ISO 9001:2008 and TS 16949:2009 certified.
| Year | Make | Model | Body Type | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2017 | Mercedes-Benz | GLC300 | Sport Utility | AWD | Rear Left | 253 Type; CV Axle Shaft |
| 2016 | Mercedes-Benz | GLC300 | — | AWD | Rear Left | 253 Type; CV Axle Shaft |
