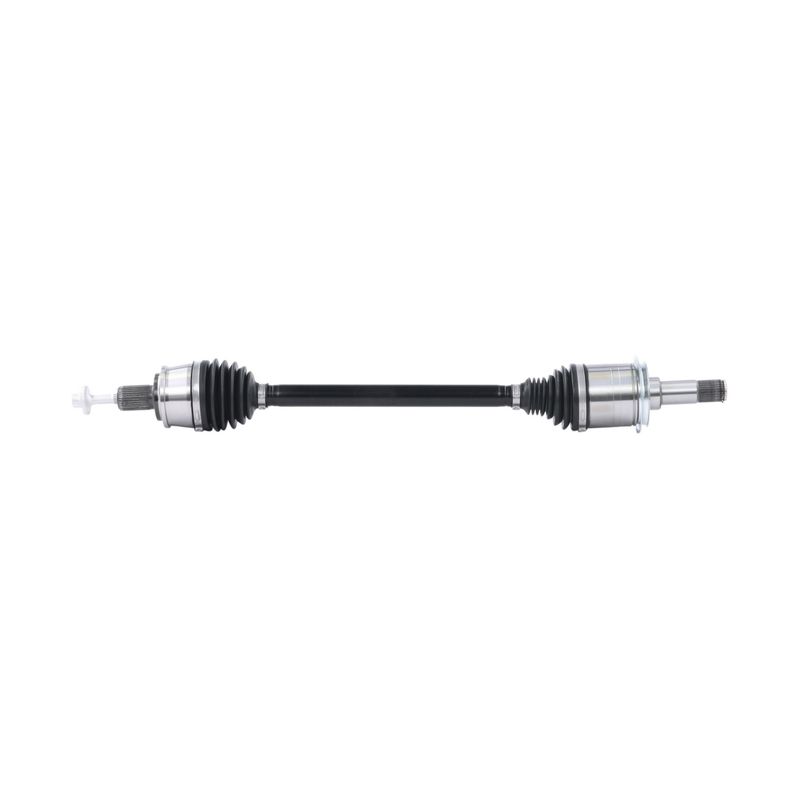

TrakMotive MB-86036 CV Axle Shaft - Rear Right
| Brand | TrakMotive MB-86036 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 16 |
| Axle Bolt Length (mm) | 80 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Included | No |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Joint Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 34 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Audi style spline bolt |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 32.5 |
| Overall Compressed Length (mm) | 825 |
| Overall Extended Length (In) | 34.31 |
| Overall Extended Length (mm) | 872 |
| Product line | CV Axle Shaft |
| Fits | Mercedes-Benz · 1 vehicle |
OE-style replacement. Direct-fit CV axle shaft for driveline service.
Thermoplastic boots. Built with durable boot material at both joint ends.
Certified manufacturing. Produced by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive MB-86036 for the same application. See all 1.
Product Overview
The TrakMotive MB-86036 CV axle shaft is built for direct replacement service on the rear right side of the 2024 Mercedes-Benz GLE450. It is specified for non-ABS applications unless otherwise noted and uses spline connections with thermoplastic boots for the inboard and outboard joints.
For buyers searching for a 2024 Mercedes-Benz GLE450 rear right CV axle shaft, MB-86036 provides the fitment and connection details needed for a precise driveline repair. The axle measures 32.5 inches compressed and 34.31 inches extended, with a 30-spline inboard side and 34-spline outboard side.
Key Features
- Fits 2024 Mercedes-Benz GLE450, rear right.
- CV axle shaft for driveline replacement service.
- Thermoplastic boot material on both joint ends.
- Male inboard joint with spline connection style.
- Outboard Audi-style spline bolt joint design.
- ABS ring tooth count is 0 and no ABS tone ring is included.
- Axle bolt uses M16x1.5 thread with a 16 mm hex size.
Detailed Description
TrakMotive MB-86036 is a CV axle shaft for the rear right position on the 2024 Mercedes-Benz GLE450. The axle is configured with a 30-spline inboard connection and a 34-spline outboard connection, along with thermoplastic boots for joint protection. Its 825 mm compressed length and 872 mm extended length support the specified application, while the non-ABS configuration aligns with vehicles that do not use an ABS tone ring at the axle.
This part cross-references TrakMotive MB-86036 for the same application.
Common Repair Uses
- Restores driveline transfer when a CV axle is worn or damaged.
- Addresses clicking or binding from a failing axle joint.
- Helps correct vibration caused by excessive axle play.
- Replaces a shaft with torn boots or grease loss.
Installation Notes and Quality Assurance
Verify rear right fitment, spline count, and axle length before installation. Confirm the vehicle uses the non-ABS axle configuration noted for this part. The axle bolt specification is M16x1.5 with a 16 mm hex size, and the axle nut is not included.
TrakMotive identifies this part with a limited lifetime warranty and states that its manufacturing is backed by ISO 9001:2008 and TS 16949:2009 certification.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2024 | Mercedes-Benz | GLE450 | Rear Right | 167 Type; CV Axle Shaft |
