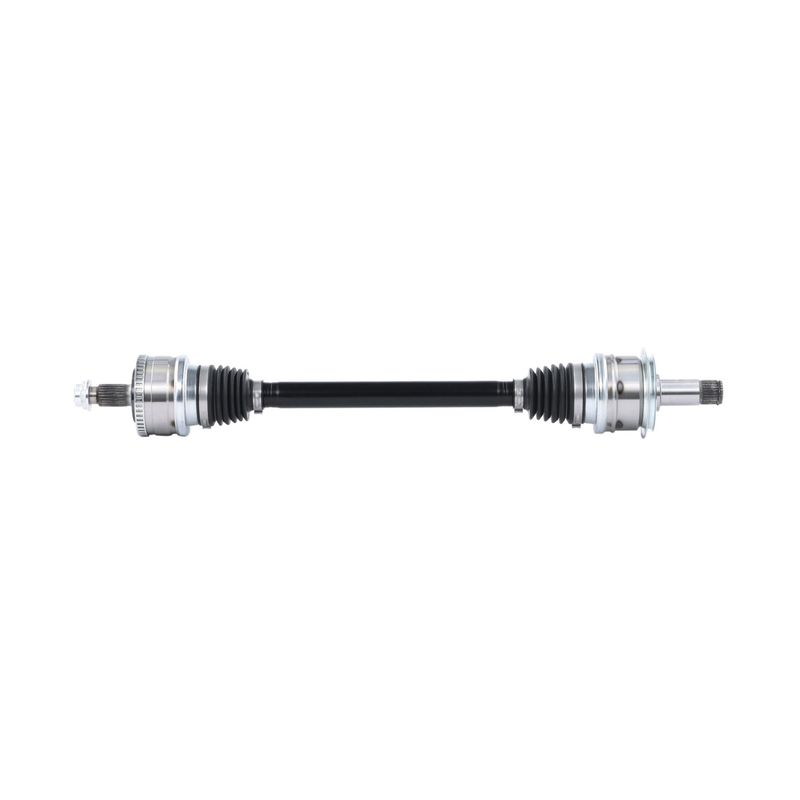

TrakMotive MB-86037 CV Axle Shaft - Rear
OE Quality 60-Day Returns
TrakMotive
 CV Axle Shaft

TrakMotive MB-86037 CV Axle Shaft - Rear

Brand TrakMotive MB-86037
Position Rear
ABS Ring Tooth Count 48
ABS Ring Type Window
ABS Tone Ring Included Yes
Axle Nut Head Type Hex
Axle Nut Height (in) 0.69
Axle Nut Height (mm) 17
Axle Nut Hex Size (in) 1.19
Axle Nut Hex Size (mm) 30
Axle Nut Included Yes
Axle Nut Length (in) 1.31
Axle Nut Length (mm) 35
Axle Nut Locking Type Stake
Axle Nut Thread Size M22x1.5
Inboard Joint Boot Material Thermoplastic
Inboard Joint Type Male
Inboard Shaft Connection Style Spline
Number Of Inboard Splines 27
Number Of Outboard Splines 25
Outboard Joint Boot Material Thermoplastic
Outboard Joint Type Conventional
Outboard Shaft Connection Style Spline
Overall Compressed Length (in) 28.38
Overall Compressed Length (mm) 721
Overall Extended Length (In) 31.56
Overall Extended Length (mm) 801
Product line CV Axle Shaft
Fits Mercedes-Benz · 15 vehicles

Direct replacement. Built as a CV axle shaft for straightforward driveline service.

ABS-ready design. Includes a 48-tooth window-style tone ring and ABS ring.

Certified manufacturing. Produced by an ISO 9001:2008 and TS 16949:2009 certified company.

Cross-references TrakMotive MB-86037 for the same application. See all 1.

$353.43Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $353.43
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options

CV axle shaft for Mercedes-Benz applications

TrakMotive MB-86037 is a CV axle shaft built for rear driveline service on select Mercedes-Benz models. It combines spline-based shaft connections with ABS-related components and a direct-fit axle nut specification for a precise replacement path.

  • Fits 2001-2004 Mercedes-Benz SLK320, rear.
  • Fits 1998-2003 Mercedes-Benz CLK320, rear.
  • Fits 1999-2003 Mercedes-Benz CLK430, rear.
  • Includes a 48-tooth ABS ring with a window-style tone ring.
  • Thermoplastic boot material on both joints helps protect the assembly.
  • Axle nut specification: M22x1.5 thread, 30 mm hex size, stake-lock design.

Detailed fit and construction

This CV axle shaft uses a 27-spline inboard connection and a 25-spline outboard connection, with an overall compressed length of 28.38 inches and an extended length of 31.56 inches. The inboard joint uses a male design and spline connection, while the outboard joint uses a conventional design and spline connection. TrakMotive MB-86037 is a direct replacement option for rear axle service on Mercedes-Benz CLK320, CLK430, and SLK320 applications where the listed fitment matches.

Common replacement issues

  • Clicking or popping during turns from worn CV joints.
  • Vibration under acceleration from a damaged axle shaft.
  • ABS warning concerns related to tone ring or sensor signal issues.
  • Boot failure that can lead to grease loss and joint wear.
  • Noise from excessive play in the driveline assembly.

Installation notes and quality

Verify spline count, axle length, and axle nut specification before installation. This part cross-references TrakMotive MB-86037 for the same application. MfrDescription states that ABS axles fit non-ABS applications unless otherwise noted. TrakMotive identifies this part as manufactured by an ISO 9001:2008 and TS 16949:2009 certified company and includes a limited lifetime warranty.

Related reading

This part fits 15 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelBody TypePositionNotes
2004Mercedes-BenzSLK320—Rear170 Type; CV Axle Shaft
2003Mercedes-BenzCLK320ConvertibleRear208 Type; CV Axle Shaft
2003Mercedes-BenzCLK430ConvertibleRear208 Type; CV Axle Shaft
2003Mercedes-BenzSLK320—Rear170 Type; CV Axle Shaft
2002Mercedes-BenzCLK320—Rear208 Type; CV Axle Shaft
2002Mercedes-BenzCLK430—Rear208 Type; CV Axle Shaft
2002Mercedes-BenzSLK320—Rear170 Type; CV Axle Shaft
2001Mercedes-BenzCLK320—Rear208 Type; CV Axle Shaft
2001Mercedes-BenzCLK430—Rear208 Type; CV Axle Shaft
2001Mercedes-BenzSLK320—Rear170 Type; CV Axle Shaft
2000Mercedes-BenzCLK320—Rear208 Type; CV Axle Shaft
2000Mercedes-BenzCLK430—Rear208 Type; CV Axle Shaft
1999Mercedes-BenzCLK320—Rear208 Type; CV Axle Shaft
1999Mercedes-BenzCLK430—Rear208 Type; CV Axle Shaft
1998Mercedes-BenzCLK320—Rear208 Type; CV Axle Shaft
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — MB-86037
