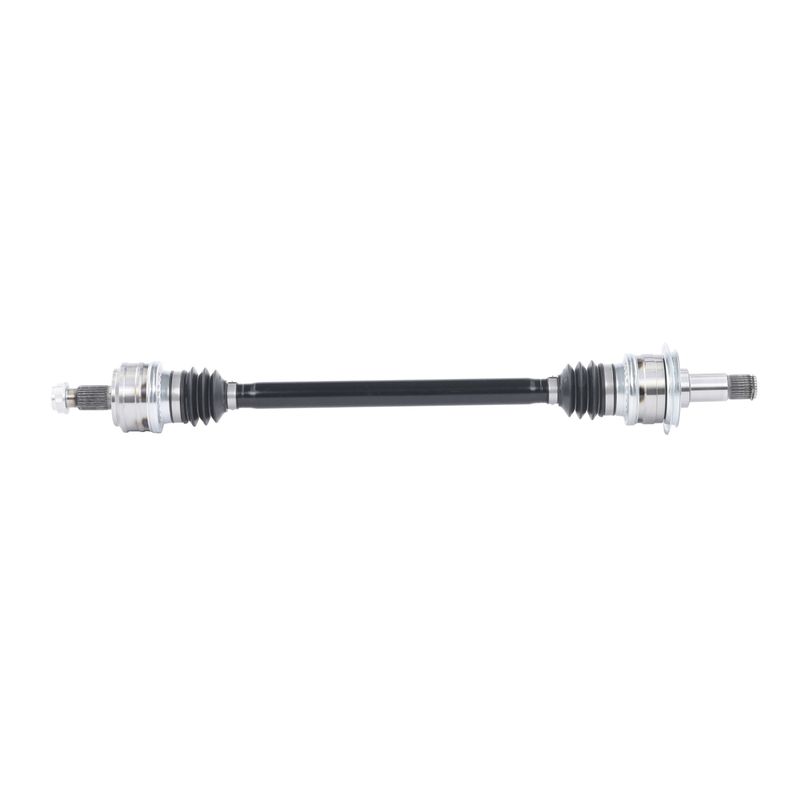

TrakMotive MB-86052 CV Axle Shaft - Rear Right
| Brand | TrakMotive MB-86052 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.69 |
| Axle Nut Height (mm) | 18 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26x1.5 |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 30.69 |
| Overall Compressed Length (mm) | 780 |
| Overall Extended Length (In) | 33.25 |
| Overall Extended Length (mm) | 844 |
| Product line | CV Axle Shaft |
| Fits | Mercedes-Benz · 3 vehicles |
OE-style replacement. Application-specific CV axle shaft for driveline service and repair.
Thermoplastic boots. Built with durable boot material to protect the axle joints.
Quality certified. Manufactured by a company certified to ISO 9001:2008 and TS 16949:2009.
Cross-references TrakMotive MB-86052 for the same application. See all 1.
Product Overview
The TrakMotive MB-86052 CV axle shaft is built for direct driveline replacement on select Mercedes-Benz applications. It features thermoplastic boots, spline connections at both ends, and an included axle nut for a service-ready fitment profile.
Fits 2019-2021 Mercedes-Benz C300, rear right. This part cross-references TrakMotive MB-86052 for the same application.
Key Features
- CV axle shaft for driveline service and replacement
- Thermoplastic inboard and outboard boots for joint protection
- 27-spline inboard and outboard shaft connections
- Conventional outboard joint and male inboard joint design
- Includes axle nut with 32 mm hex size and stake locking type
- ABS tone ring not included for non-ABS applications
Detailed Description
TrakMotive MB-86052 is a CV axle shaft engineered for the rear right position on select Mercedes-Benz C300 models. The axle uses spline-style connections with 27 splines at both ends, a conventional outboard joint, and a male inboard joint to match the specified driveline configuration. Overall compressed length is 780 mm, with an extended length of 844 mm, helping confirm proper application during replacement work. The included axle nut uses an M26x1.5 thread, 32 mm hex size, and stake-style locking design.
As part of TrakMotive’s CV Axle Shaft line, this component is focused on driveline service parts with application-specific construction. The MB-86052 is listed for 2019-2021 Mercedes-Benz C300 rear right fitment and is intended for non-ABS applications unless otherwise noted.
What It Is Used For
- Replacing a worn or damaged CV axle shaft
- Restoring driveline connection between transmission and wheel assembly
- Addressing clicking, vibration, or binding from axle wear
- Correcting spline or joint-related driveline service issues
- Servicing a rear right Mercedes-Benz C300 axle application
Installation Notes and Tips
Verify the rear right application, spline count, and compressed length before installation. Confirm non-ABS requirements, since the axle is listed without an ABS tone ring. Check axle nut thread size, hex size, and locking style against the original hardware specification during service.
Quality Assurance
TrakMotive lists a limited lifetime warranty for this CV axle shaft. The company is certified to ISO 9001:2008 and TS 16949:2009 quality standards.
| Year | Make | Model | Body Type | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2021 | Mercedes-Benz | C300 | Sedan | AWD | Rear Right | 205 Type; CV Axle Shaft |
| 2020 | Mercedes-Benz | C300 | Sedan | AWD | Rear Right | 205 Type; CV Axle Shaft |
| 2019 | Mercedes-Benz | C300 | Sedan | AWD | Rear Right | 205 Type; CV Axle Shaft |
