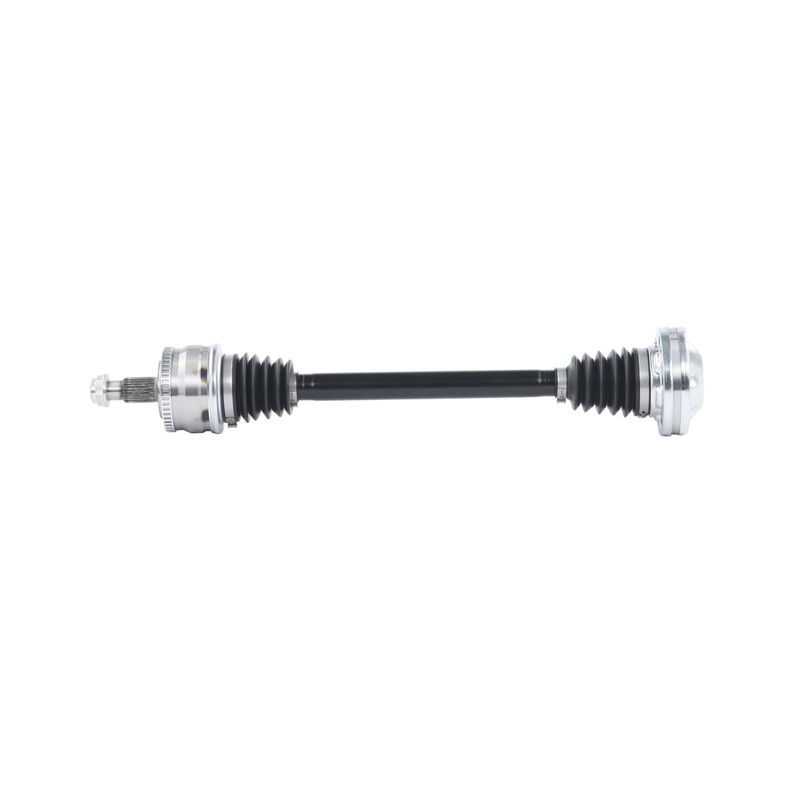

TrakMotive MB-86056 CV Axle Shaft - Rear
| Brand | TrakMotive MB-86056 |
|---|---|
| Position | Rear |
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Window |
| ABS Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.69 |
| Axle Nut Height (mm) | 18 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26x1.5 |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.31 |
| Overall Compressed Length (mm) | 669 |
| Overall Extended Length (In) | 28.94 |
| Overall Extended Length (mm) | 735 |
| Product line | CV Axle Shaft |
| Fits | Mercedes-Benz · 15 vehicles |
OE-style replacement. Application-specific CV axle shaft for rear driveline service.
ABS tone ring included. 48-tooth window-style ring supports the listed ABS-equipped design.
Axle nut included. M26x1.5 thread with 32 mm hex size for the specified application.
Cross-references TrakMotive MB-86056 for the same application. See all 1.
CV Axle Shaft for Mercedes-Benz Rear Applications
TrakMotive MB-86056 is a rear CV axle shaft built for specific Mercedes-Benz applications with detailed fitment by chassis type and VIN break. It is a direct driveline replacement for vehicles that require a bolt-on inboard connection and a conventional outboard joint.
This Mercedes-Benz CV axle shaft includes an ABS tone ring with a 48-tooth window-style design and comes with the axle nut specified for the application. The thermoplastic boots and measured shaft lengths support accurate replacement where OE-style dimensions matter.
Key Features
- Rear CV axle shaft for select Mercedes-Benz applications
- MB-86056 part number for easy identification
- Bolt-on inboard joint with 6 bolt holes
- Conventional outboard joint with spline shaft connection
- ABS tone ring included with 48 teeth and window-style construction
- Thermoplastic boot material on both joints
- Axle nut included with M26x1.5 thread and 32 mm hex size
Detailed Description
TrakMotive MB-86056 is engineered for rear driveline service on Mercedes-Benz CL500, CL55 AMG, CL600, S500, S55 AMG, and S600 applications listed in the fitment data. Coverage includes 2000-2003 model years, with notes that distinguish 215 Type, 220 Type, and VIN-specific applications. The axle uses a bolt-on inboard joint, a spline-connected outboard joint, and compressed and extended lengths of 26.31 in and 28.94 in for proper replacement sizing. The MB-86056 part number should be matched to the vehicle notes before ordering.
TrakMotive's CV Axle Shaft line focuses on replacement driveline components with application-specific construction and OE-style fitment details. MB-86056 follows that approach with defined joint types, ABS ring specification, and included axle nut details for the listed Mercedes-Benz rear axle applications.
What It Is Used For
- Replacing a worn or noisy rear CV axle shaft
- Restoring driveline operation after joint wear or boot failure
- Addressing ABS signal issues related to the axle tone ring
- Correcting fitment problems caused by incorrect shaft length or spline configuration
- Servicing Mercedes-Benz rear axle applications with VIN-specific requirements
Installation Notes and Tips
Verify the chassis type, VIN break, and rear application notes before installation. Confirm the axle nut thread size, hex size, and locking style against the vehicle specification, and compare the compressed and extended lengths to the removed shaft. This part cross-references TrakMotive MB-86056 for the same application.
Quality Assurance
TrakMotive lists a limited lifetime warranty for this CV axle shaft. The manufacturer also states ISO 9001:2008 and TS 16949:2009 certification, reflecting controlled production standards for driveline components.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2003 | Mercedes-Benz | S500 | RWD | Rear | Thru VIN A305635; CV Axle Shaft |
| 2002 | Mercedes-Benz | CL500 | — | Rear | VIN A026027; CV Axle Shaft |
| 2002 | Mercedes-Benz | CL55 AMG | — | Rear | VIN A026027; CV Axle Shaft |
| 2002 | Mercedes-Benz | CL600 | — | Rear | VIN A026027; CV Axle Shaft |
| 2002 | Mercedes-Benz | S500 | — | Rear | 220 Type; CV Axle Shaft |
| 2002 | Mercedes-Benz | S55 AMG | — | Rear | 220 Type; CV Axle Shaft |
| 2002 | Mercedes-Benz | S600 | — | Rear | 220 Type; CV Axle Shaft |
| 2001 | Mercedes-Benz | CL500 | — | Rear | VIN A026027; CV Axle Shaft |
| 2001 | Mercedes-Benz | CL55 AMG | — | Rear | VIN A026027; CV Axle Shaft |
| 2001 | Mercedes-Benz | CL600 | — | Rear | VIN A026027; CV Axle Shaft |
| 2001 | Mercedes-Benz | S500 | — | Rear | 220 Type; CV Axle Shaft |
| 2001 | Mercedes-Benz | S55 AMG | — | Rear | 220 Type; CV Axle Shaft |
| 2001 | Mercedes-Benz | S600 | — | Rear | 220 Type; CV Axle Shaft |
| 2000 | Mercedes-Benz | CL500 | — | Rear | 215 Type; CV Axle Shaft |
| 2000 | Mercedes-Benz | S500 | — | Rear | 220 Type; CV Axle Shaft |
