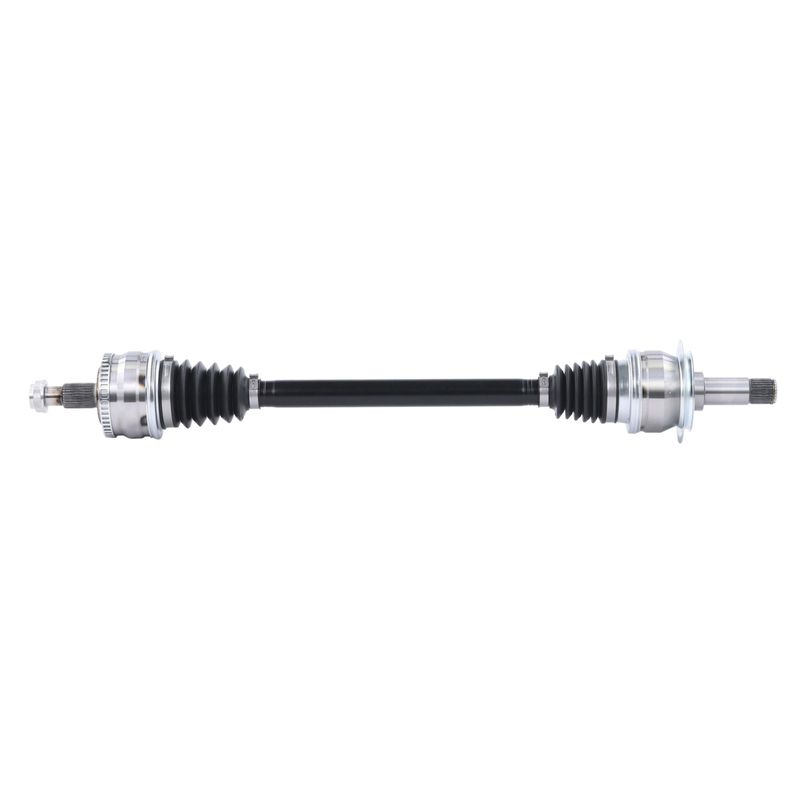

TrakMotive MB-86057 CV Axle Shaft - Rear
| Brand | TrakMotive MB-86057 |
|---|---|
| Position | Rear |
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Window |
| ABS Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.69 |
| Axle Nut Height (mm) | 18 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26x1.5 |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 30.81 |
| Overall Compressed Length (mm) | 783 |
| Overall Extended Length (In) | 34 |
| Overall Extended Length (mm) | 863 |
| Product line | CV Axle Shaft |
| Fits | Mercedes-Benz · 14 vehicles |
OE-style replacement. Built as a direct CV axle shaft for the listed driveline applications.
ABS ring included. Features a 48-tooth window-style tone ring for the specified setup.
Warranty backed. Supported by a limited lifetime warranty and certified quality systems.
Cross-references TrakMotive MB-86057 for the same application. See all 1.
Mercedes-Benz Rear CV Axle Shaft
TrakMotive MB-86057 is a rear CV axle shaft built for specific Mercedes-Benz CL500, S500, CL55 AMG, and CL600 applications. It is engineered with spline connections at both ends and includes ABS tone ring details for the listed fitments.
Key Features
- Fits Mercedes-Benz rear driveline applications with confirmed vehicle-specific coverage.
- 27-spline inboard and outboard shaft connections for precise engagement.
- Thermoplastic boots on the inboard and outboard joints for joint protection.
- Includes a 48-tooth window-style ABS ring and tone ring.
- Axle nut included with M26x1.5 thread, 32 mm hex size, and stake locking type.
- Overall compressed length of 30.81 in. and extended length of 34 in.
Detailed Description
This TrakMotive CV axle shaft, part number MB-86057, is a direct driveline replacement for rear applications on select Mercedes-Benz CL500, S500, CL55 AMG, and CL600 models. The shaft uses spline-style connections with 27 splines on both the inboard and outboard ends, along with conventional outboard joint construction and a male inboard joint design. The included ABS tone ring and 48-tooth window ring support the listed ABS-equipped applications, while the supplied axle nut simplifies matching the specified hardware requirements. MB-86057 is built to the dimensions and connection style needed for the listed Mercedes-Benz fitments.
What It Is Used For
- Restoring drivetrain power transfer through the rear axle assembly.
- Replacing a worn or noisy CV joint shaft.
- Addressing vibration caused by damaged axle splines or joint wear.
- Correcting ABS-related driveline service needs on listed applications.
- Replacing a shaft with incorrect length or connection style.
Installation Notes and Tips
Compatible with the listed rear Mercedes-Benz applications only. Verify VIN notes, including the specified breakpoints for 2001-2003 models, before ordering. Confirm axle length, spline count, ABS ring style, and axle nut thread size against the original part. Part number MB-86057 should be matched to the exact vehicle configuration shown in the fitment data.
Quality Assurance
TrakMotive backs this axle shaft with a limited lifetime warranty. The company is certified to ISO 9001:2008 and TS 16949:2009 quality standards.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2006 | Mercedes-Benz | CL500 | — | Rear | 215 Type; CV Axle Shaft |
| 2006 | Mercedes-Benz | S500 | RWD | Rear | 220 Type; CV Axle Shaft |
| 2005 | Mercedes-Benz | CL500 | — | Rear | 215 Type; CV Axle Shaft |
| 2005 | Mercedes-Benz | S500 | RWD | Rear | 220 Type; CV Axle Shaft |
| 2004 | Mercedes-Benz | CL500 | — | Rear | 215 Type; CV Axle Shaft |
| 2004 | Mercedes-Benz | S500 | RWD | Rear | 220 Type; CV Axle Shaft |
| 2003 | Mercedes-Benz | CL500 | — | Rear | 215 Type; CV Axle Shaft |
| 2003 | Mercedes-Benz | S500 | RWD | Rear | From VIN A305636; CV Axle Shaft |
| 2002 | Mercedes-Benz | CL500 | — | Rear | From VIN A026028; CV Axle Shaft |
| 2002 | Mercedes-Benz | CL55 AMG | — | Rear | From VIN A026028; CV Axle Shaft |
| 2002 | Mercedes-Benz | CL600 | — | Rear | From VIN A026028; CV Axle Shaft |
| 2001 | Mercedes-Benz | CL500 | — | Rear | From VIN A026028; CV Axle Shaft |
| 2001 | Mercedes-Benz | CL55 AMG | — | Rear | From VIN A026028; CV Axle Shaft |
| 2001 | Mercedes-Benz | CL600 | — | Rear | From VIN A026028; CV Axle Shaft |
