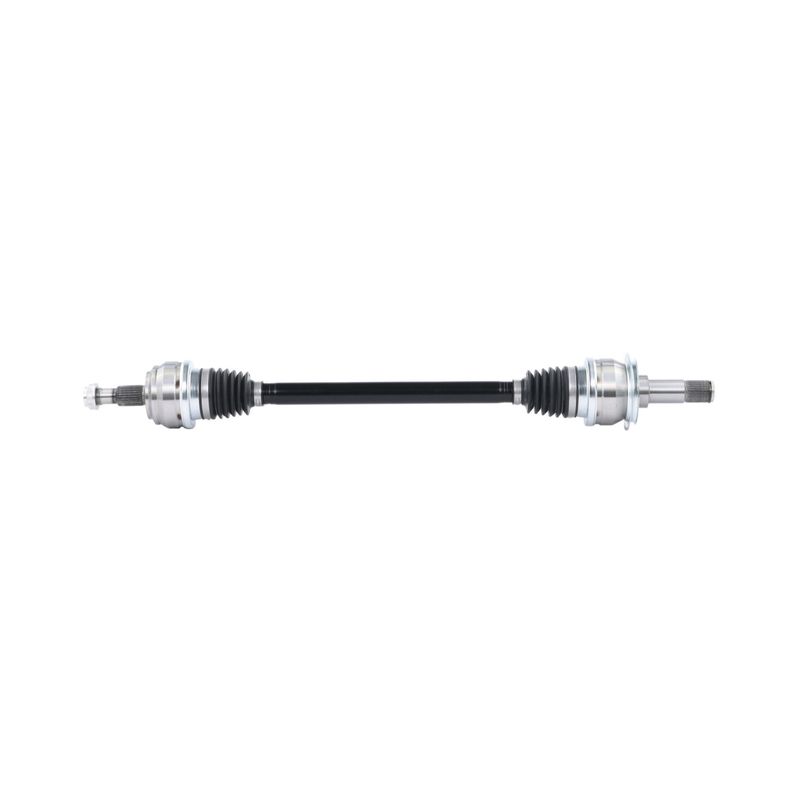

TrakMotive MB-86058 CV Axle Shaft - Rear Right

Brand	TrakMotive MB-86058
Position	Rear Right
ABS Ring Tooth Count	0
ABS Tone Ring Included	No
Axle Nut Head Type	Hex
Axle Nut Height (in)	0.69
Axle Nut Height (mm)	18
Axle Nut Hex Size (in)	1.25
Axle Nut Hex Size (mm)	32
Axle Nut Included	Yes
Axle Nut Length (in)	1.44
Axle Nut Length (mm)	37
Axle Nut Locking Type	Stake
Axle Nut Thread Size	M26x1.5
Inboard Joint Boot Material	Thermoplastic
Inboard Joint Type	Male
Inboard Shaft Connection Style	Spline
Number Of Inboard Splines	30
Number Of Outboard Splines	27
Outboard Joint Boot Material	Thermoplastic
Outboard Joint Type	Conventional
Outboard Shaft Connection Style	Spline
Overall Compressed Length (in)	32.06
Overall Compressed Length (mm)	815
Overall Extended Length (In)	35.25
Overall Extended Length (mm)	895
Product line	CV Axle Shaft
Fits	Mercedes-Benz · 6 vehicles

OE-style replacement. Direct-fit CV axle shaft for application-specific driveline service.

Thermoplastic boots. Boot material helps protect the joints from contamination and wear.

Certified manufacturing. Built by an ISO 9001:2008 and TS 16949:2009 certified company.

Cross-references TrakMotive MB-86058 for the same application. See all 1.

$355.27Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all CV Axle Shaft options

CV Axle Shaft for Mercedes-Benz S-Class

This TrakMotive CV axle shaft is built for rear right applications on select Mercedes-Benz S450 and S560 models. It uses spline connections at both ends and includes a stake-lock axle nut for a direct driveline service replacement.

Key Features

Fits 2018-2020 Mercedes-Benz S450, rear right.
Fits 2018-2020 Mercedes-Benz S560, rear right.
Thermoplastic boots help protect the joints from road debris and moisture.
30 inboard splines and 27 outboard splines for application-specific fitment.
Includes a hex axle nut with M26x1.5 thread size.
ABS tone ring is not included.

Detailed Description

Part number MB-86058 is a TrakMotive CV axle shaft for Mercedes-Benz S-Class driveline service. It is configured with a male inboard joint, a conventional outboard joint, and spline-style shaft connections to match the listed rear right applications. The axle measures 32.06 inches compressed and 35.25 inches extended, and the included axle nut uses a 32 mm hex size with stake locking. MB-86058 is listed for 2018-2020 Mercedes-Benz S450 and 2018-2020 Mercedes-Benz S560 rear right fitment.

TrakMotive identifies this CV axle shaft as part of its CV Axle Shaft line. The product is backed by a limited lifetime warranty and is produced by an ISO 9001:2008 and TS 16949:2009 certified company. This part cross-references TrakMotive MB-86058 for the same application.

Common Uses

Restoring driveline operation after axle wear or joint damage
Replacing a noisy or clicking CV axle assembly
Addressing vibration caused by a worn shaft or joint
Servicing a damaged boot or contaminated joint assembly
Correcting axle fitment issues on the listed Mercedes-Benz applications

Installation Notes and Tips

Verify rear right fitment, spline count, and axle nut thread size before installation. This axle is listed for non-ABS applications unless otherwise noted, and the ABS tone ring is not included. Confirm the vehicle’s original configuration against the part details before service.

Quality Assurance

MB-86058 is covered by a limited lifetime warranty. TrakMotive states that its manufacturing follows ISO 9001:2008 and TS 16949:2009 certification standards.

This part fits 6 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Body Type	Drive Type	Position	Notes
2020	Mercedes-Benz	S450	Sedan	RWD	Rear Right	S Model; CV Axle Shaft
2020	Mercedes-Benz	S560	Sedan	RWD	Rear Right	S Model; CV Axle Shaft
2019	Mercedes-Benz	S450	Sedan	RWD	Rear Right	S Model; CV Axle Shaft
2019	Mercedes-Benz	S560	Sedan	RWD	Rear Right	S Model; CV Axle Shaft
2018	Mercedes-Benz	S450	Sedan	RWD	Rear Right	S Model; CV Axle Shaft
2018	Mercedes-Benz	S560	Sedan	RWD	Rear Right	S Model; CV Axle Shaft
No rows match your filter.

Directly replaces or cross-references 1 part number

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

TrakMotive — MB-86058
