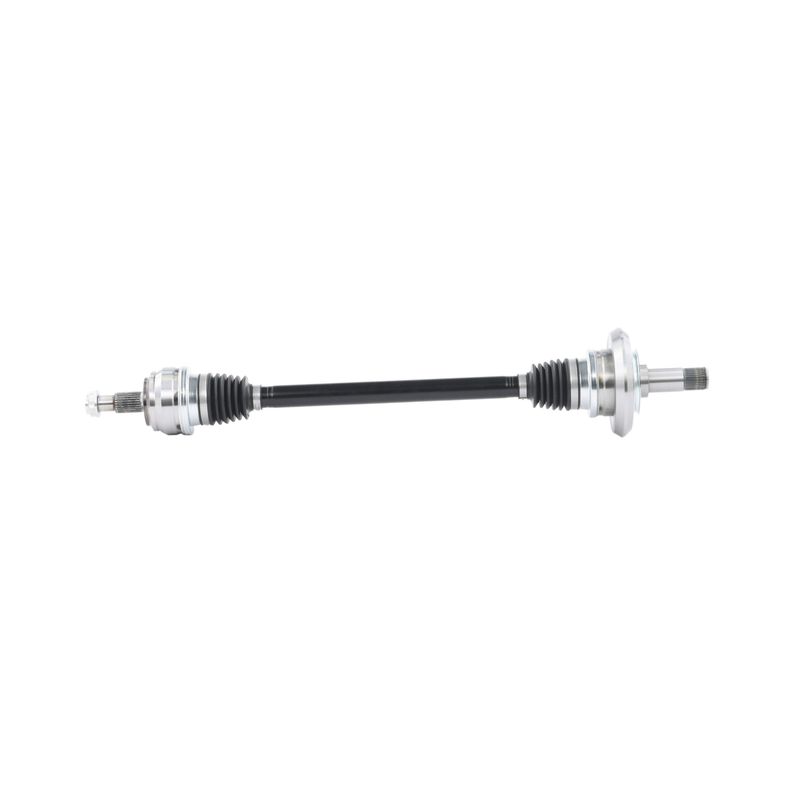

TrakMotive MB-86059 CV Axle Shaft - Rear or Rear Left
| Brand | TrakMotive MB-86059 |
|---|---|
| Position | Rear Left and Rear |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.69 |
| Axle Nut Height (mm) | 18 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M26x1.5 |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 31.94 |
| Overall Compressed Length (mm) | 811 |
| Overall Extended Length (In) | 35.06 |
| Overall Extended Length (mm) | 891 |
| Product line | CV Axle Shaft |
| Fits | Mercedes-Benz · 12 vehicles |
OE-style replacement. Direct-fit CV axle shaft for specified driveline applications.
Thermoplastic boots. Built with durable boot material to help protect the joints.
Certified manufacturing. Produced by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive MB-86059 for the same application. See all 1.
CV Axle Shaft for Mercedes-Benz S-Class
The TrakMotive MB-86059 CV axle shaft is built for specific Mercedes-Benz S-Class applications with rear and rear left fitment. It is a direct driveline replacement for vehicles that need a precise spline match and OE-style axle nut specifications.
- Fits 2017-2021 Mercedes-Benz S63 AMG, rear.
- Fits 2017 Mercedes-Benz S550, rear left.
- Fits 2016 Mercedes-Benz S550, rear left.
- Fits 2014-2016 Mercedes-Benz S63 AMG, rear.
- Fits 2014-2015 Mercedes-Benz S550, rear left.
Key Features
- Thermoplastic inboard and outboard boots for driveline protection.
- 30 inboard splines and 27 outboard splines for application-specific engagement.
- Includes axle nut with M26x1.5 thread, 32 mm hex size, and stake locking type.
- ABS tone ring not included; ABS axle design fits non-ABS applications unless otherwise noted.
- Overall compressed length of 811 mm and extended length of 891 mm.
Product Details
MB-86059 is a TrakMotive CV axle shaft for Mercedes-Benz S63 AMG and Mercedes-Benz S550 applications listed in the fitment data. The axle uses a male inboard joint with spline connection and a conventional outboard joint, giving it the construction needed for the specified rear driveline positions. TrakMotive identifies this part as part number MB-86059, and the same part number is used for interchange reference.
This part cross-references TrakMotive MB-86059 for the same application.
Common Replacement Reasons
- Clicking or popping from a worn CV joint.
- Vibration during acceleration from driveline wear.
- Torn or deteriorated axle boots.
- Axle noise caused by spline or joint wear.
- Loss of smooth power transfer through the driveline.
Installation Notes
Verify the vehicle’s position, model year, and notes before ordering, especially for S-Class applications with 222 Type or VIN-specific requirements. Confirm axle nut thread size, spline count, and ABS configuration against the original part before installation. Professional installation is recommended for proper driveline alignment and torque procedures.
Quality Assurance
TrakMotive backs this axle shaft with a limited lifetime warranty. The company is ISO 9001:2008 and TS 16949:2009 certified, reflecting controlled manufacturing and quality management practices.
| Year | Make | Model | Body Type | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2021 | Mercedes-Benz | S63 AMG | Coupe | — | Rear | S Models; CV Axle Shaft |
| 2020 | Mercedes-Benz | S63 AMG | Coupe | — | Rear | S Models; CV Axle Shaft |
| 2019 | Mercedes-Benz | S63 AMG | Coupe | — | Rear | S Models; CV Axle Shaft |
| 2018 | Mercedes-Benz | S63 AMG | Coupe | — | Rear | S Models; CV Axle Shaft |
| 2017 | Mercedes-Benz | S550 | Sedan | RWD | Rear Left | S Models; CV Axle Shaft |
| 2017 | Mercedes-Benz | S63 AMG | Sedan | — | Rear | S Models; CV Axle Shaft |
| 2016 | Mercedes-Benz | S550 | Sedan | RWD | Rear Left | VIN G8C, 5th, 6th, 7th digit; CV Axle Shaft |
| 2016 | Mercedes-Benz | S63 AMG | Sedan | — | Rear | 222 Type; CV Axle Shaft |
| 2015 | Mercedes-Benz | S550 | Sedan | RWD | Rear Left | 222 Type; CV Axle Shaft |
| 2015 | Mercedes-Benz | S63 AMG | Sedan | — | Rear | 222 Type; CV Axle Shaft |
| 2014 | Mercedes-Benz | S550 | — | RWD | Rear Left | 222 Type; CV Axle Shaft |
| 2014 | Mercedes-Benz | S63 AMG | — | — | Rear | 222 Type; CV Axle Shaft |
