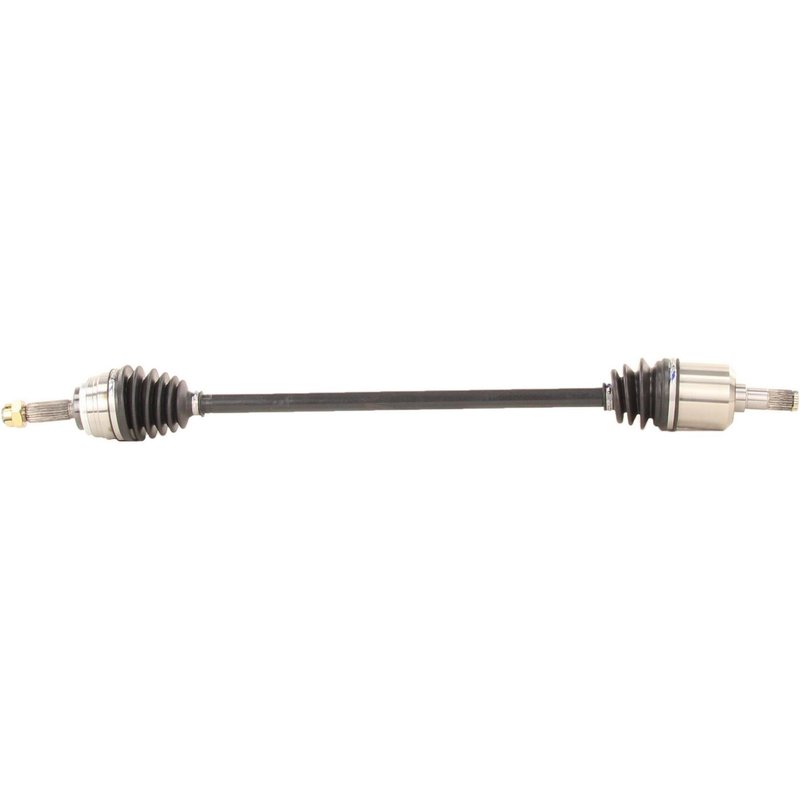

TrakMotive MI-8013 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MI-8013

The TrakMotive CV Axle Shaft MI-8013 is designed for reliable driveline performance in select Mitsubishi and Plymouth vehicles. Engineered to meet OEM specifications, this new axle shaft ensures consistent power transfer and durability for models like the Mitsubishi Eclipse and Plymouth Galant.

• Compatible with Mitsubishi Eclipse, Expo LRV, Galant, Laser and Plymouth models
• Includes axle nut with cotter pin locking mechanism
• Neoprene boot material for enhanced joint protection
• Hex head axle nut with 1 1/4 inch (32 mm) hex size
• Overall compressed length of 37.4 inches (950 mm)
• Male inboard joint and conventional outboard joint types
• 25 splines on both inboard and outboard shafts

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components designed for precise fit and function. This line emphasizes durability and compatibility with specific vehicle makes and models, such as Mitsubishi and Plymouth, ensuring that each CV axle shaft like the MI-8013 meets stringent performance standards for driveline and axle applications.

Technical Specifications and Features

The MI-8013 CV Axle Shaft features a neoprene boot that provides resistance to wear and environmental damage, extending the life of the joint. The axle nut included is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 22 mm (6/7 inches) and a length of 37 mm (1 1/2 inches). It uses a cotter pin locking mechanism to secure the nut, enhancing safety and reliability. The inboard joint is a male type with 25 splines, matching the outboard joint which is conventional with 25 splines as well. The overall compressed length of 37.4 inches (950 mm) ensures proper fitment in compatible Mitsubishi and Plymouth vehicles.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts in Mitsubishi Eclipse and Plymouth Galant
• Addresses issues with axle vibration or clicking noises during turns
• Solves grease leakage problems due to torn or degraded boots
• Restores driveline stability and smooth power transfer
• Prevents axle nut loosening with included cotter pin locking system

Installation Notes and Tips

When installing the TrakMotive MI-8013 CV Axle Shaft, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to prevent loosening. Inspect the neoprene boot for proper seating to avoid premature wear. This axle shaft is designed for direct replacement on compatible Mitsubishi and Plymouth models, so verify vehicle fitment before installation. Use appropriate tools for the 1 1/4 inch hex axle nut to avoid damage.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MI-8013 is a new, not remanufactured, component built to meet or exceed OEM standards. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure durability and performance in driveline applications.
