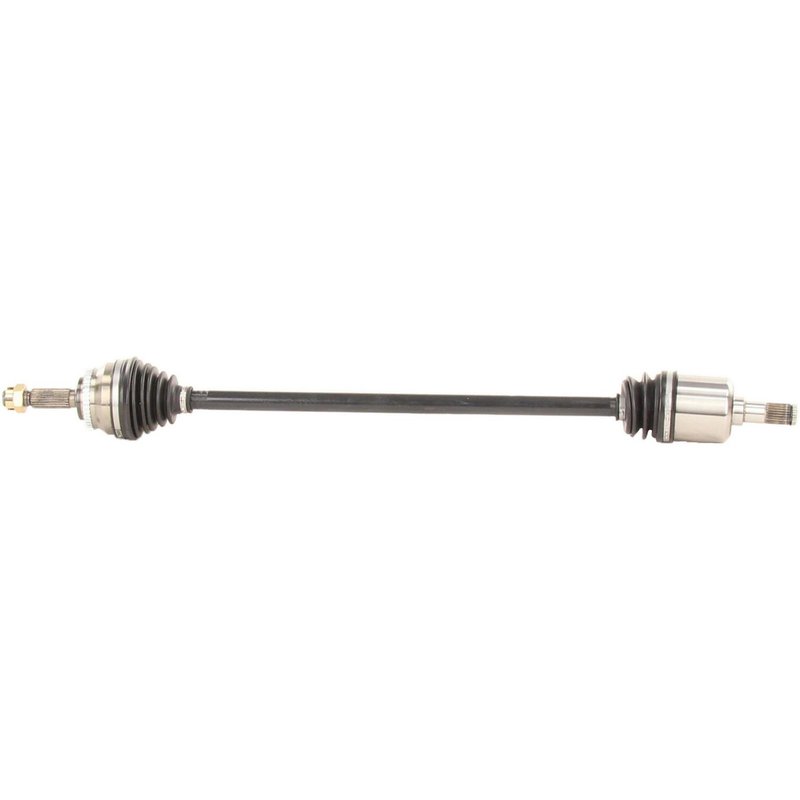

TrakMotive MI-8021 CV Axle Shaft - Front Left
| Brand | TrakMotive MI-8021 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 43 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 37.68 |
| Overall Compressed Length (mm) | 957 |
| Product line | CV Axle Shaft |
| Fits | Mitsubishi · 9 vehicles |
New axle shaft. Direct replacement for a straightforward install.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Built with a toothed ring for ABS-equipped applications.
Cross-references Cardone New 66-3167, Cardone Reman 60-3148 and Dayco 89601 for the same application. See all 26.
CV Axle Shaft for Mitsubishi Eclipse and Galant
TrakMotive MI-8021 is a new CV axle shaft built for front left applications on select Mitsubishi models. It is engineered with a 25-spline inboard connection, 25-spline outboard connection, and a 37.68-inch compressed length for the listed fitments.
Compatible With 1996-1999 Mitsubishi Eclipse, front left, and 1994-1998 Mitsubishi Galant, front left. This axle shaft is a direct-fit driveline replacement for vehicles using the specified ABS tone ring setup and axle nut configuration.
Key Features
- TrakMotive CV Axle Shaft, part number MI-8021
- New construction for front left driveline service
- 25 inboard splines and 25 outboard splines
- Neoprene boot material for CV joint protection
- ABS tone ring included with 43-tooth toothed ring
- Axle nut included with M22 x 1.5 thread, 32 mm hex size, and cotter pin locking type
- Overall compressed length: 37.68 in. (957 mm)
- Male inboard shaft connection and conventional outboard shaft connection
Product Details
MI-8021 is part of TrakMotive’s CV Axle Shaft line and is built for front left driveline replacement on the listed Mitsubishi Eclipse and Mitsubishi Galant applications. The axle uses a male inboard joint, conventional outboard joint, and a neoprene boot to help protect the CV assembly during operation. The included ABS tone ring and 43-tooth toothed ring support vehicles equipped for ABS-related wheel speed sensing.
TrakMotive MI-8021 is a practical replacement choice when servicing worn or damaged front axle assemblies on 1996-1999 Mitsubishi Eclipse and 1994-1998 Mitsubishi Galant models. It is also referenced by several interchange numbers, including Cardone New 66-3167 and Dayco 89601 for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- ABS warning concerns related to a failed tone ring assembly
- Excessive drivetrain play from a worn front left axle
Installation Notes and Tips
Verify spline count, axle nut thread size, ABS tone ring style, and compressed length before installation. Confirm front left placement and compare the removed axle to the replacement part to ensure the correct shaft configuration for your Mitsubishi Eclipse or Galant.
Use the correct axle nut specification and follow factory service procedures for torque, cotter pin retention, and final inspection after installation.
Quality Assurance
TrakMotive identifies this axle shaft as a new part and notes ISO 9001:1007 and TS 16949:2009 certified manufacturing. The MI-8021 also carries a limited lifetime warranty.
| Year | Make | Model | Submodel | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 1999 | Mitsubishi | Eclipse | Spyder GS | FWD | — | 2.4L | L4 | Front Left | CV Axle Shaft |
| 1998 | Mitsubishi | Eclipse | Spyder GS | — | — | 2.4L | L4 | Front Left | CV Axle Shaft |
| 1998 | Mitsubishi | Galant | — | FWD | — | — | — | Front Left | CV Axle Shaft |
| 1997 | Mitsubishi | Eclipse | Spyder GS | — | — | 2.4L | L4 | Front Left | CV Axle Shaft |
| 1997 | Mitsubishi | Galant | — | FWD | — | — | — | Front Left | CV Axle Shaft |
| 1996 | Mitsubishi | Eclipse | Spyder GS | — | — | 2.4L | L4 | Front Left | CV Axle Shaft |
| 1996 | Mitsubishi | Galant | — | FWD | — | — | — | Front Left | CV Axle Shaft |
| 1995 | Mitsubishi | Galant | — | FWD | — | — | — | Front Left | CV Axle Shaft |
| 1994 | Mitsubishi | Galant | — | FWD | Manual | — | — | Front Left | CV Axle Shaft |
