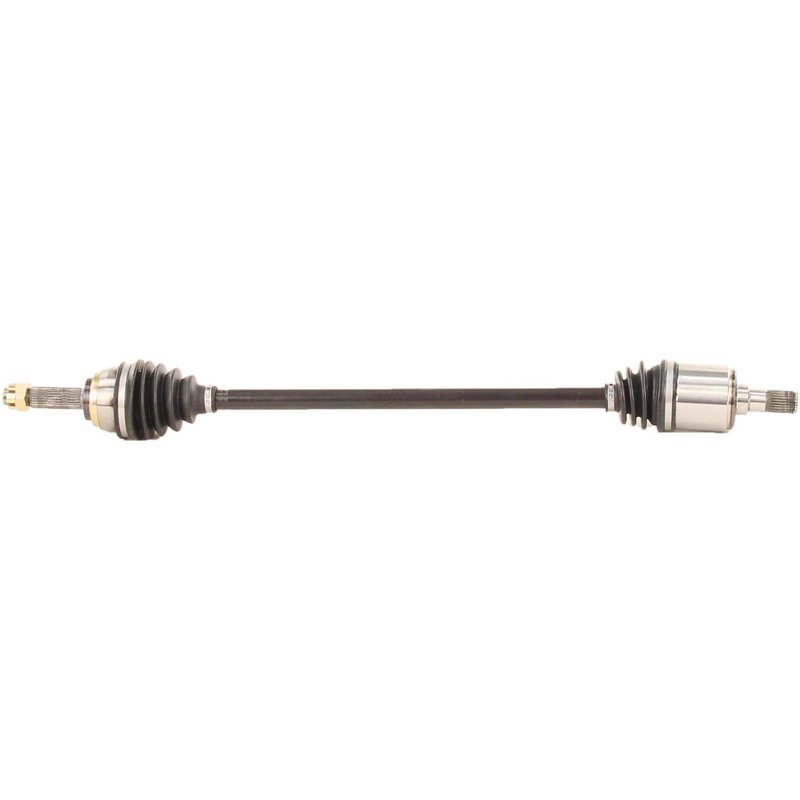

TrakMotive MI-8029 CV Axle Shaft - Front Left

CV Axle Shaft for Hyundai and Mitsubishi

TrakMotive MI-8029 is a new CV axle shaft for front left applications on select Hyundai and Mitsubishi vehicles. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service on covered applications.

Key Features

• Fits 1990-1994 Hyundai Excel, front left
• Fits 1990-1994 Mitsubishi Precis, front left
• Fits 1991-1992 Hyundai Scoupe, front left
• New CV axle shaft with 25 inboard splines and 25 outboard splines
• Neoprene boot material for driveline protection
• Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and cotter pin locking type
• No ABS tone ring included
• Overall compressed length: 35 in. (889 mm)

Detailed Description

TrakMotive CV Axle Shaft MI-8029 is a direct replacement driveline component for front left service on the Hyundai Excel, Mitsubishi Precis, and Hyundai Scoupe within the listed model years. The axle uses a male inboard shaft connection and a conventional outboard joint, with 25 splines at both ends for the specified applications. The included axle nut features a hex head, M22 x 1.5 thread, and cotter pin locking style. TrakMotive identifies this axle as a new part, not remanufactured, and notes that ABS axles fit non-ABS applications unless otherwise noted.

This part cross-references Bosch 7971 and Cardone Reman 60-3158 for the same application. TrakMotive MI-8029 is also referenced in the aftermarket under part numbers such as 40-18913 and CV2579.

What This Part Helps Address

• Clicking or popping noises during turns from a worn CV joint
• Vibration or shudder from a damaged axle shaft
• Torn boot conditions that can lead to grease loss and joint wear
• Driveline noise caused by spline or joint wear
• Front left axle replacement needs on covered Hyundai and Mitsubishi models

Installation Notes and Tips

Verify front left fitment by year, make, model, and axle configuration before installation. Confirm axle nut thread size, hex size, and locking style match the vehicle specification. Inspect the hub, seals, and surrounding suspension components during replacement, and follow the vehicle service procedure for torque and alignment checks after installation.

Quality Assurance

TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certified company standards for manufacturing and quality control.
