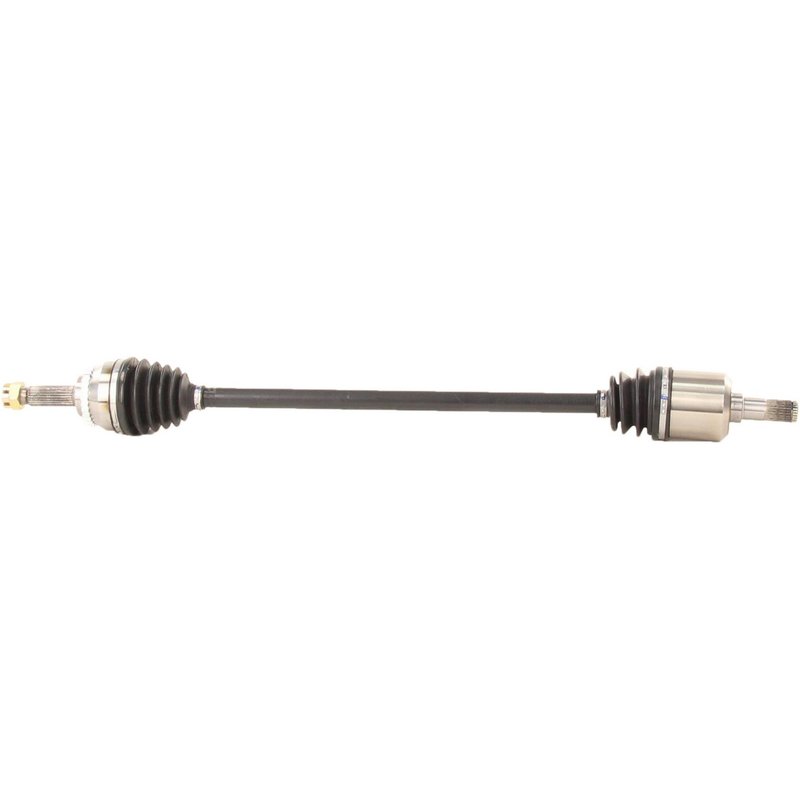

TrakMotive MI-8046 CV Axle Shaft - Front Right
| Brand | TrakMotive MI-8046 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 29 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 36.3 |
| Overall Compressed Length (mm) | 922 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 6 vehicles |
OE-style replacement. New CV axle shaft for a straightforward swap.
Neoprene boot. Helps protect the joint from dirt and moisture.
ABS tone ring included. Built with a toothed ring for ABS applications.
Cross-references ACI 88534, Cardone Reman 60-3266 and Dayco 95234 for the same application. See all 22.
CV Axle Shaft for Hyundai Front Right
TrakMotive MI-8046 is a new CV axle shaft for front right applications on select Hyundai Elantra and Hyundai Tiburon models. It is built with a neoprene boot, 25 inboard splines, 25 outboard splines, and an included axle nut for a direct replacement on the listed vehicles.
Key Features
- Part number MI-8046 CV axle shaft
- Front right position for listed Hyundai applications
- New axle shaft with male inboard connection and conventional outboard joint
- Neoprene boot material for driveline protection
- ABS tone ring included with 29-tooth toothed ring
- Axle nut included: M22 x 1.5 thread, 32 mm hex size, cotter pin locking type
- Overall compressed length: 36.3 in. (922 mm)
- TrakMotive CV Axle Shaft line for driveline and axle service
Detailed Description
TrakMotive MI-8046 is a CV axle shaft engineered for front right service on 1996-1999 Hyundai Elantra and 1997-1998 Hyundai Tiburon applications listed below. This axle shaft uses a male inboard shaft connection, a conventional outboard shaft connection, and matching 25-spline counts at both ends for the specified fitments. The included ABS tone ring features a toothed design with 29 teeth, and the axle nut is supplied with the correct M22 x 1.5 thread specification.
The TrakMotive CV Axle Shaft product line focuses on replacement driveline components built for direct-fit service. MI-8046 is a new unit, not remanufactured, and is backed by TrakMotive’s manufacturing standards as an ISO 9001:1007 and TS 16949:2009 certified company. This part cross-references Cardone Reman 60-3266 and Dayco 95234 for the same application.
Vehicle Fitment
- Fits 1997-1999 Hyundai Elantra, front right.
- Fits 1997-1998 Hyundai Tiburon, front right.
- Fits 1996 Hyundai Elantra, front right, after 12/95.
Common Problems This Part Can Address
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration caused by axle wear or imbalance
- Grease leakage from a damaged axle boot
- Noise from a failing front right driveline assembly
- ABS signal issues related to a damaged tone ring on the axle
Installation Notes and Tips
Verify the front right position, spline count, axle nut thread size, and ABS ring configuration before installation. Confirm the vehicle is one of the listed Hyundai Elantra or Hyundai Tiburon applications, and for the 1996 Elantra, confirm the build date is after 12/95. Inspect related seals, hub components, and suspension hardware during axle replacement to help ensure proper fit and operation.
Quality Assurance
TrakMotive MI-8046 is manufactured by an ISO 9001:1007 and TS 16949:2009 certified company. It is covered by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1999 | Hyundai | Elantra | Front Right | CV Axle Shaft |
| 1998 | Hyundai | Elantra | Front Right | CV Axle Shaft |
| 1998 | Hyundai | Tiburon | Front Right | CV Axle Shaft |
| 1997 | Hyundai | Elantra | Front Right | CV Axle Shaft |
| 1997 | Hyundai | Tiburon | Front Right | CV Axle Shaft |
| 1996 | Hyundai | Elantra | Front Right | After 12/95; CV Axle Shaft |
