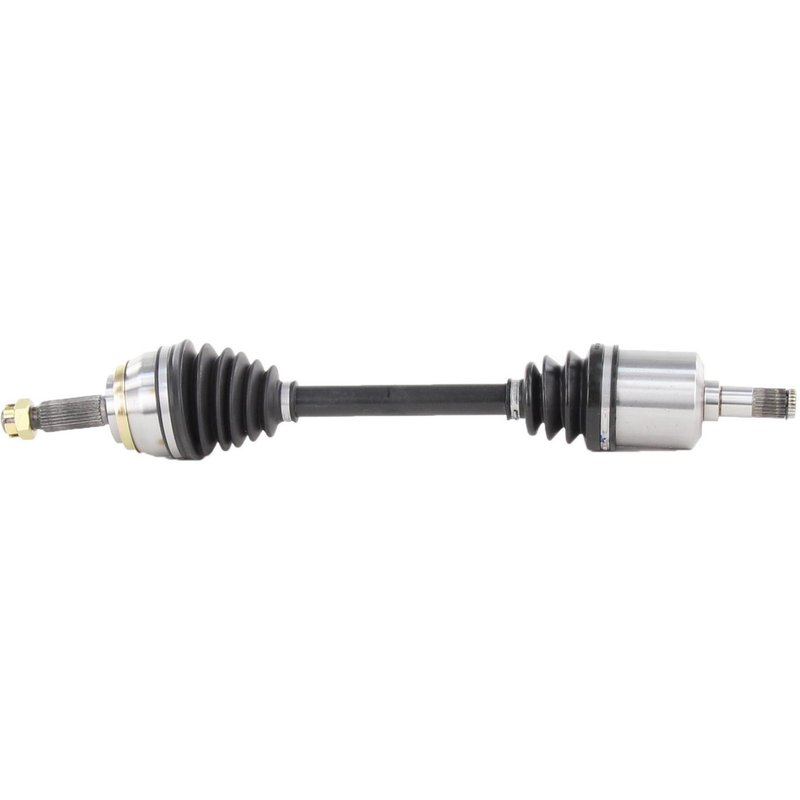

TrakMotive MI-8050 CV Axle Shaft - Front Right
| Brand | TrakMotive MI-8050 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.71 |
| Overall Compressed Length (mm) | 653 |
| Product line | CV Axle Shaft |
| Fits | Dodge and Mitsubishi · 4 vehicles |
New CV axle shaft. A direct replacement for worn driveline components.
Neoprene boot material. Helps resist cracking and flexes with movement.
Includes axle nut. Cotter-pin locking type for secure installation.
Cross-references Anchor 8704, Cardone New 66-3059 and Dayco 89510 for the same application. See all 19.
CV Axle Shaft for Front Right Applications
TrakMotive MI-8050 is a new CV axle shaft for front right driveline service on select 1991-1992 Dodge Stealth and 1991-1992 Mitsubishi 3000GT models. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct replacement service.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: MI-8050
- New axle shaft construction
- Front right position
- Male inboard shaft connection
- Conventional outboard joint type
- Neoprene boot material
- Axle nut included with M22 x 1.5 thread, 32 mm hex size, and cotter pin locking type
- No ABS tone ring included
- Overall compressed length: 25.71 in. (653 mm)
Product Details
TrakMotive MI-8050 is a CV axle shaft for driveline and axle repair where the original front right axle has worn joints, damaged boots, or vibration-related issues. This axle is listed for 1991-1992 Dodge Stealth front right and 1991-1992 Mitsubishi 3000GT front right applications. The axle uses a male inboard shaft connection, a conventional outboard joint, and a neoprene boot to support replacement of the original assembly. TrakMotive identifies this part as a new unit and notes ISO 9001:1007 and TS 16949:2009 certified manufacturing practices.
This part cross-references Cardone New 66-3059 for the same application.
Common Issues This Part Can Address
- Clicking or popping from a worn CV joint during turns
- Grease leakage from a torn or cracked axle boot
- Vibration or shudder from a damaged front axle shaft
- Noise from excessive joint wear in the front right driveline
- Loss of smooth power transfer to the wheel
Installation Notes and Tips
Verify axle nut thread size, hex size, and compressed length before installation. Confirm front right placement and check whether the vehicle uses ABS, since this axle does not include an ABS tone ring. Inspect the hub, seals, and surrounding suspension components during replacement to help prevent repeat driveline noise or leakage. Always follow the vehicle service procedure for torque and cotter pin installation.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certified company standards for manufacturing control.
| Year | Make | Model | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 1992 | Dodge | Stealth | FWD | Manual | Front Right | CV Axle Shaft |
| 1992 | Mitsubishi | 3000GT | FWD | Manual | Front Right | CV Axle Shaft |
| 1991 | Dodge | Stealth | FWD | Manual | Front Right | CV Axle Shaft |
| 1991 | Mitsubishi | 3000GT | FWD | Manual | Front Right | CV Axle Shaft |
