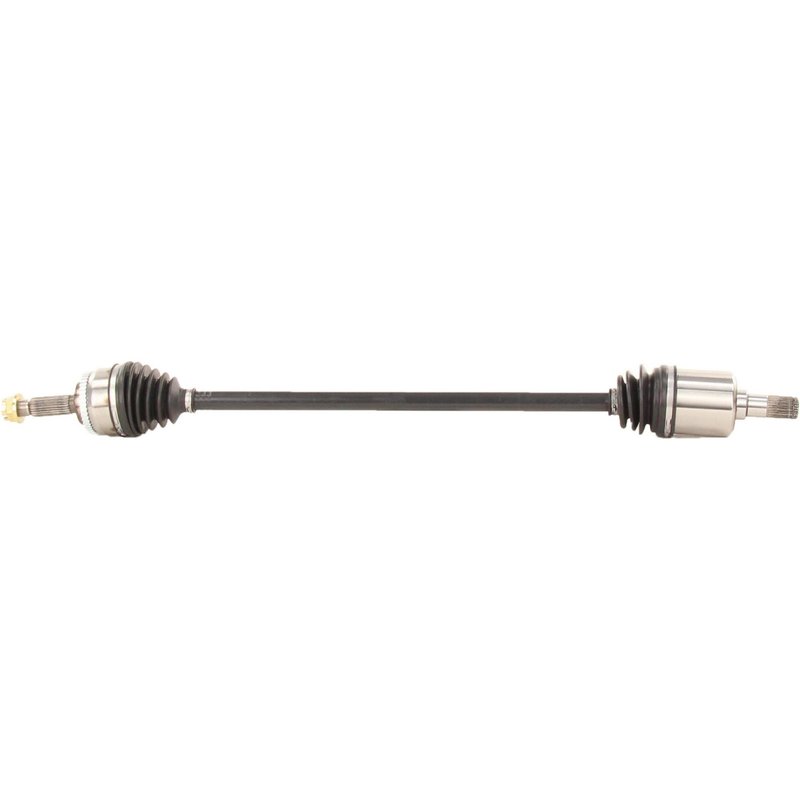

TrakMotive MI-8070 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MI-8070 for Mitsubishi

The TrakMotive CV Axle Shaft MI-8070 is engineered for reliable driveline performance in Mitsubishi Eclipse and Galant models. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Mitsubishi Eclipse and Galant
• Includes ABS tone ring with 43 toothed ring teeth
• Neoprene boot material for enhanced joint protection
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 37.63 inches (955.7 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality constant velocity components designed to meet or exceed OEM specifications. This CV Axle Shaft MI-8070 features a male inboard joint type with 27 splines and a conventional outboard joint with 25 splines, ensuring compatibility and smooth power transfer for Mitsubishi drivetrains.

Technical Specifications and Features

This CV axle shaft includes a toothed ABS ring with 43 teeth, which is essential for accurate wheel speed sensor readings. The neoprene boot material provides resistance against environmental elements, extending the life of the joint. The axle nut is a hex type measuring 30 mm across flats, with a height of 21 mm and a length of 34.6 mm, secured by a cotter pin locking system to maintain safe installation.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Mitsubishi Eclipse and Galant
• Resolves issues related to clicking or popping noises during turns
• Addresses vibration problems caused by axle shaft imbalance or wear
• Fixes ABS sensor errors due to faulty or missing tone rings
• Prevents grease leaks from torn or degraded CV boots

Installation Notes and Tips

Ensure the axle nut is torqued to manufacturer specifications and secured with the included cotter pin to prevent loosening. Verify the correct orientation of the male inboard joint and conventional outboard joint during installation. Inspect the neoprene boot for any damage before installation to maintain joint protection.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MI-8070 is a new, direct replacement part manufactured to meet OEM standards. It includes the axle nut and ABS tone ring for a complete installation. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and performance.
