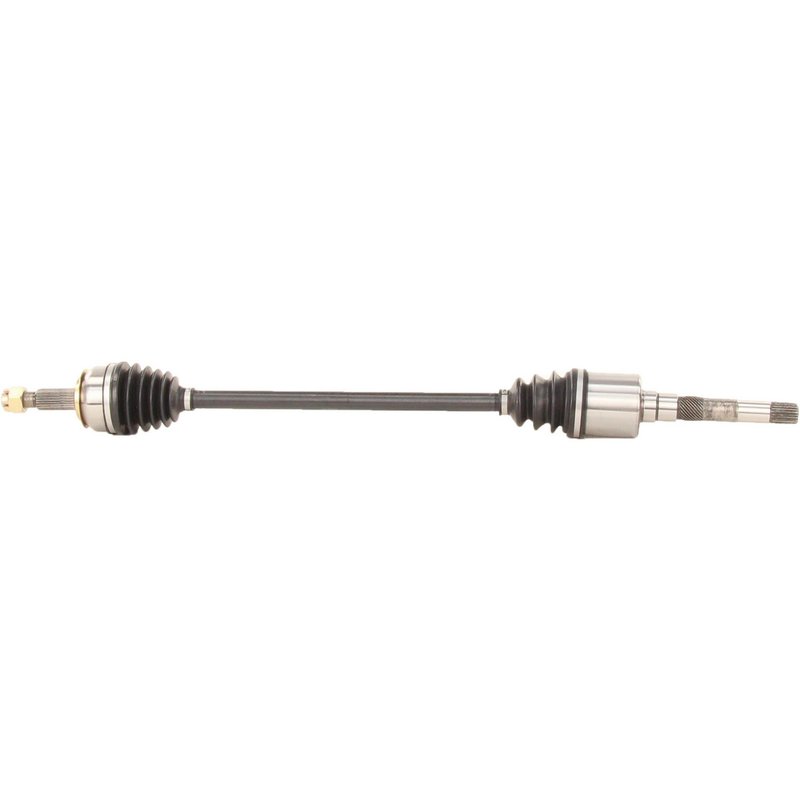

TrakMotive MI-8074 CV Axle Shaft - Front Right
| Brand | TrakMotive MI-8074 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 26 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 38.98 |
| Overall Compressed Length (mm) | 990 |
| Product line | CV Axle Shaft |
| Fits | Dodge and Plymouth · 1 vehicle |
New axle shaft. Built as a fresh replacement for dependable driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
Includes axle nut. Conveniently supplied with the matching locking hardware.
Cross-references Anchor 8238, Cardone Reman 60-3028 and Dayco 72588 for the same application. See all 18.
CV Axle Shaft for 1987 Dodge Charger
TrakMotive MI-8074 is a new CV axle shaft for the front right position on the 1987 Dodge Charger. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service on the listed application.
- Fits 1987 Dodge Charger, front right
- New CV axle shaft for driveline and axle repair
- Male inboard shaft connection with 25 inboard splines
- Conventional outboard shaft connection with 26 outboard splines
- Neoprene boot material for CV joint protection
- Axle nut included with M22 x 1.5 thread, hex head, and cotter pin locking type
- Overall compressed length: 38.98 in. (990 mm)
- No ABS tone ring included
Product Details
This TrakMotive CV Axle Shaft, part number MI-8074, is specified for the 1987 Dodge Charger front right position and should be matched by spline count and shaft diameter to the original unit before installation. The axle uses a male inboard joint design and a conventional outboard joint design, with a compressed length of 38.98 inches to support proper fitment in the driveline assembly. TrakMotive MI-8074 is part of the CV Axle Shaft line and is manufactured by an ISO 9001:1007 and TS 16949:2009 certified company.
This part cross-references Cardone Reman 60-3028 for the same application.
Common Repair Uses
- Restores a worn or noisy front right CV axle on the 1987 Dodge Charger
- Addresses clicking or popping during turns caused by CV joint wear
- Replaces a damaged axle shaft with spline or joint wear
- Helps correct vibration or driveline shudder from a failing axle assembly
- Supports repair after torn boot contamination or grease loss
Installation Notes
Verify spline counts, axle diameter, and compressed length against the original axle before installation. Confirm the axle nut thread size, hex size, and locking style match the vehicle hardware. Because this axle does not include an ABS tone ring, it is intended for non-ABS applications unless otherwise noted in the vehicle-specific catalog data.
Quality Assurance
TrakMotive MI-8074 is a new replacement axle shaft from an ISO 9001:1007 and TS 16949:2009 certified company. The manufacturer states a limited lifetime warranty for this part.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1987 | Dodge | Charger | Automatic | 2.2L | L4 | Front Right | Compare spline counts and diameter to original; CV Axle Shaft |
