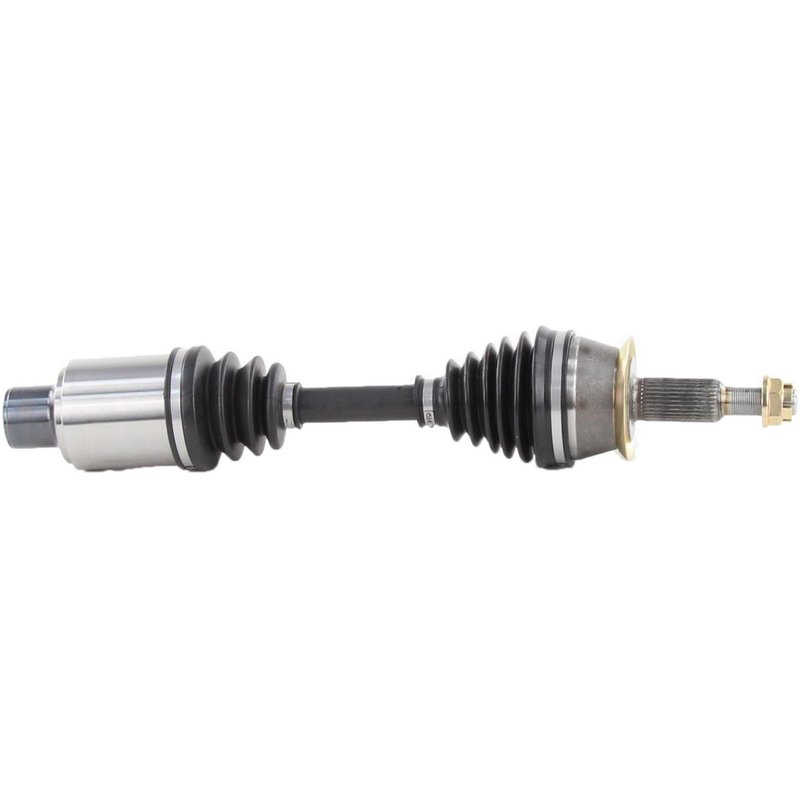

TrakMotive MI-8076 CV Axle Shaft - Front Left or Front Right
Overview of TrakMotive CV Axle Shaft MI-8076
The TrakMotive CV Axle Shaft MI-8076 is engineered for reliable driveline performance in Dodge Dakota and Durango models. Designed as a new replacement part, it ensures proper fit and function for your vehicle's front axle assembly.
- Compatible with Dodge Dakota and Durango
- Includes axle nut with cotter pin locking type
- Neoprene boot material for durability
- Female inboard joint with 29 splines
- Conventional outboard joint with 31 splines
- Overall compressed length of 20.83 inches (529 mm)
- Hex axle nut head type, 30 mm hex size
TrakMotive CV Axle Shaft Product Line Details
The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that meet OEM specifications. This CV axle shaft is part of that line, offering a new, direct-fit replacement designed to maintain the integrity of your vehicle's front axle system. The product line emphasizes quality materials such as neoprene boots and includes necessary hardware like axle nuts to facilitate installation.
Technical Specifications and Features
This CV axle shaft features a female inboard joint with 29 splines and a conventional outboard joint with 31 splines, ensuring compatibility with the front axle assembly of Dodge Dakota and Durango models. The neoprene boot material provides resistance to wear and environmental factors. The included axle nut has a hex head type measuring 30 mm across flats, with a height of 21 mm and a length of 34.6 mm. It uses an M22x1.5 thread size and secures with a cotter pin locking mechanism for added safety.
Common Applications and Problem Solving
- Replacement for worn or damaged CV axle shafts on Dodge Dakota and Durango
- Resolves issues related to axle vibration or clicking noises during turns
- Addresses grease boot tears or leaks that can lead to joint failure
- Fixes axle nut wear or damage affecting wheel security
- Restores proper driveline length and spline engagement for smooth operation
Installation Notes and Tips
Ensure the vehicle is securely lifted and supported before beginning installation. Verify spline counts and joint types match your vehicle’s specifications. Use the included axle nut and secure it with the cotter pin locking type to prevent loosening. Inspect the neoprene boot for any damage during installation and apply appropriate grease if required. Torque the axle nut to manufacturer specifications for safe operation.
Quality Assurance and Warranty
The TrakMotive CV Axle Shaft MI-8076 is a new, direct replacement part manufactured to meet or exceed OEM standards. It includes the axle nut and is constructed with durable materials such as neoprene boots to ensure longevity. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support reliable performance in Dodge Dakota and Durango vehicles.
| Brand | TrakMotive |
| Part Number | MI-8076 |
| Position | CV Axle Shaft, Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/6 |
| Axle Nut Height (mm) | 21 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 31 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 20.83 |
| Overall Compressed Length (mm) | 529 |
This part fits 18 vehicles. Search below:
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2004 | Dodge | Dakota | 4WD | Front Right | Retaining ring groove located 1/2" from end of Female Inboard Housing; CV Axle Shaft |
| 2004 | Dodge | Dakota | 4WD | Front Left | Retaining ring groove located 1/2" from end of Female Inboard Housing; CV Axle Shaft |
| 2003 | Dodge | Dakota | 4WD | Front Right | Retaining ring groove located 1/2" from end of Female Inboard Housing; CV Axle Shaft |
| 2003 | Dodge | Dakota | 4WD | Front Left | Retaining ring groove located 1/2" from end of Female Inboard Housing; CV Axle Shaft |
| 2003 | Dodge | Durango | 4WD | Front Right | Retaining ring groove located 1/2" from end of Female Inboard Housing; CV Axle Shaft |
| 2003 | Dodge | Durango | 4WD | Front Left | Retaining ring groove located 1/2" from end of Female Inboard Housing; CV Axle Shaft |
| 2002 | Dodge | Dakota | 4WD | Front Right | Retaining ring groove located 1/2" from end of Female Inboard Housing; CV Axle Shaft |
| 2002 | Dodge | Dakota | 4WD | Front Left | Retaining ring groove located 1/2" from end of Female Inboard Housing; CV Axle Shaft |
| 2002 | Dodge | Durango | 4WD | Front Right | Retaining ring groove located 1/2" from end of Female Inboard Housing; CV Axle Shaft |
| 2002 | Dodge | Durango | 4WD | Front Left | Retaining ring groove located 1/2" from end of Female Inboard Housing; CV Axle Shaft |
| 2001 | Dodge | Dakota | 4WD | Front Right | From 09/12/00; Retaining ring groove located 1/2" from end of Female Inboard Housing; CV Axle Shaft |
| 2001 | Dodge | Dakota | 4WD | Front Left | From 09/12/00; Retaining ring groove located 1/2" from end of Female Inboard Housing; CV Axle Shaft |
| 2001 | Dodge | Durango | 4WD | Front Right | From 09/12/00; Retaining ring groove located 1/2" from end of Female Inboard Housing; CV Axle Shaft |
| 2001 | Dodge | Durango | 4WD | Front Left | From 09/12/00; Retaining ring groove located 1/2" from end of Female Inboard Housing; CV Axle Shaft |
| 2000 | Dodge | Dakota | 4WD | Front Right | From 09/12/00; Retaining ring groove located 1/2" from end of Female Inboard Housing; CV Axle Shaft |
| 2000 | Dodge | Dakota | 4WD | Front Left | From 09/12/00; Retaining ring groove located 1/2" from end of Female Inboard Housing; CV Axle Shaft |
| 2000 | Dodge | Durango | 4WD | Front Right | From 09/12/00; Retaining ring groove located 1/2" from end of Female Inboard Housing; CV Axle Shaft |
| 2000 | Dodge | Durango | 4WD | Front Left | From 09/12/00; Retaining ring groove located 1/2" from end of Female Inboard Housing; CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
